Leviton 5249 Installation Instructions Manual

Floor Box Assembly
Cat. No. 5249
Rated: 15A - 125V
Cat. No. 5349
Rated: 20A - 125V
Cat. No. 25249 5249 25249
Rated: 15A - 125V
Cat. No. 25349
Rated: 20A - 125V
Installation Instructions
WARNINGS AND CAUTIONS
!
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
WARNING: To be installed and/or used in accordance with appropriate electrical codes
and regulations.
WARNING: If you are unsure about any part of these instructions, contact an electrician.
CAUTION: Use this device with copper or copper clad wire only.
CAUTION: Electrical box is not suitable for masonry applications.
CAUTION: Suitable for wood finished floors and industrial carpet 3/8" (1.0 cm)
thickness only. Clean floor surfaces before mounting. Use all purpose sealing compound
(not provided) as shown.
CAUTION: Use only electrical mounting box provided.
PK-93600-10-00-0E
These products are covered by U.S. Patents Nos. 7,355,117*; 7,820,909*; 7,868,719†; 8,242,362* and corresponding foreign patents
(*Applies only to 5249-TFB, 5349-TFB, 25249-TFB, 25249-TFN, 25349-TFB, 25349-TFN; †Applies only to 25249-TFB,
25249-TFN, 25349-TFB, 25349-TFN).
LIMITED 10 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Leviton is free of defects in materials and workmanship under
normal and proper use for ten years from the purchase date. Leviton's only obligation is to correct
such defects by repair or replacement, at its option. For details visit www.leviton.com or call
1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal
of this product or reinstallation. This warranty is void if this product is installed improperly
or in an improper environment, overloaded, misused, opened, abused, or altered in any
manner, or is not used under normal operating conditions or not in accordance with any
labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is
required by the applicable jurisdiction, the duration of any such implied warranty, including
merchantability and fitness for a particular purpose, is limited to ten years. Leviton is not
liable for incidental, indirect, special, or consequential damages, including without
limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay
or failure to perform this warranty obligation. The remedies provided herein are the
exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005 (U.S.A Only)
www.leviton.com
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton
in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance
Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone
at 1 800 405-5320.
© 2017 Leviton Mfg. Co., Inc.

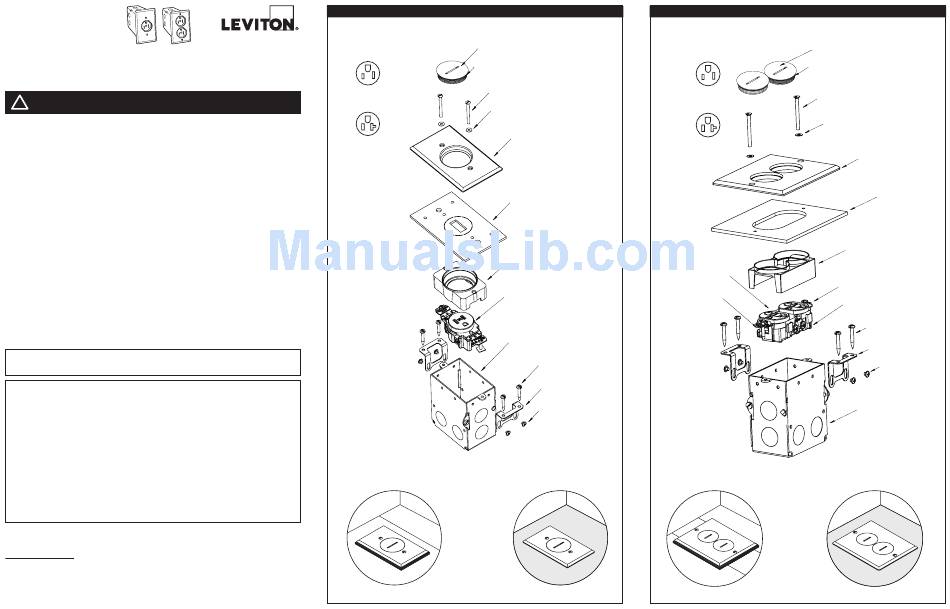

SINGLE RECEPTACLE CONTENTS (Cat. Nos. 5249/5349)
NEMA
Configurations Screw Cap (Brass)
15A - 125V
O-Ring (Rubber)
G
W
(2) Screw #6-32 (Brass)
Cat. No. 5249
20A - 125V
(2) O-Seal Washer
G
W
Brass Plate
Cat. No. 5349
Gasket
Shell (Molded Plastic)
Single Receptacle
Box ( UL Listed )
(4) #6 x 1" Screw
Bare Floor
DUPLEX RECEPTACLE CONTENTS (Cat. Nos. 25249/25349)
NEMA
Configurations
15A - 125V
G
W
Cat. No. 25249
20A - 125V
G
W
Cat. No. 25349
Silver
Terminal
Screws
(not shown)
Green
Ground
Screw
(2) Mounting
Bracket
(4) Phil-Pan
Head Screw
Carpet Bare Floor
(2) Screw Cup
(Brass or Nickel Plate)
(2) O-Ring (Rubber)
(2) Screw #6-32
(Brass or Nickel Plate)
(2) O-Seal Washer
Brass Plate
or Nickel Plate
Gasket
Shell
(Molded Plastic)
Duplex Receptacle
(2) Brass
Terminal Screws
(4) #6 x 1" Screw
(2) Mounting
Bracket
(4) Phil-Pan
Head
Screw
Box ( UL Listed )
Carpet
