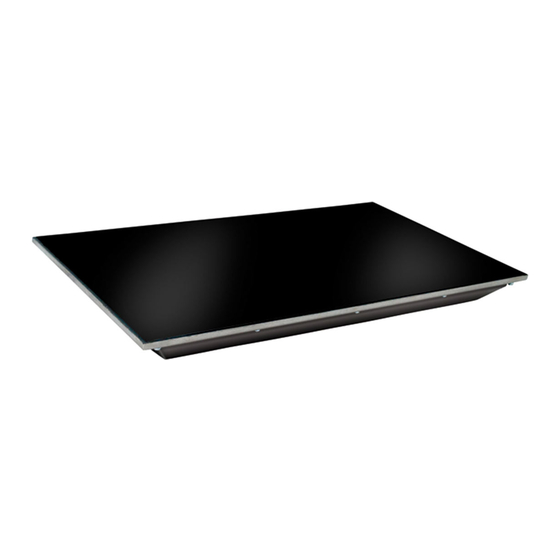

Heated black glass shelves
Hide thumbs Also See for HBG-3018:

Advertisement

Quick Links

www.hatcocorp.com
Register Online!
(see page 2)
Heated Black Glass Shelves
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
HBG and HBGB Series
P/N 07.04.431.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
Este
manual
contiene
favor
pregunte
a
su
AVERTISSEMENT
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
non-respect
des
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manuel
contient
des
importantes
concernant
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
à votre supérieur. Conservez ce manuel
dans un endroit sûr pour pouvoir vous y
référer plus tard.
© 2011 Hatco Corporation
instructions
informations
l'entretien,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBG-3018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hatco HBG-3018

  • Page 1 à votre supérieur. Conservez ce manuel manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. una localización segura para la referencia référer plus tard. futura. © 2011 Hatco Corporation...
  • Page 2: Table Of Contents

    “Warranty Registration”. INTRODUCTION Hatco Heated Black Glass Shelves are designed to hold hot Safety information that appears in this manual is identified by food safely while blending into the surrounding décor. They will the following signal word panels: keep food at proper serving temperatures without affecting quality.
  • Page 3: Important Safety Information

    This unit has no “user-serviceable” parts and must be serviced by qualified personnel only. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax 800-690-2966; or International fax 414-671-3976.
  • Page 4: Model Descriptions

    MODEL DESCRIPTIONS All Models HBGB Models all Hatco Heated Black Glass Shelves are ideal for pass through The HBGB Heated Black Glass shelf is a built-in unit that is areas, buffet lines, and as hors d’oeuvre displays. National equipped with an attached trim mounting ring. The unit includes a remote-mounted control box that is attached with 3′...
  • Page 5: Electrical Rating Chart - Hbg Models

    1.9–2.0 CEE 7/7 Schuko 22 lbs. (10 kg) 230–240 (CE) 459–500 2.0–2.1 BS-1363 or aS 3112* 22 lbs. (10 kg) HBG-3018 NEma 5-15P 27 lbs. (12 kg) 220–230 (CE) 525–574 2.4–2.5 CEE 7/7 Schuko 27 lbs. (12 kg) 230–240 (CE) 574–625...
  • Page 6: Dimensions - Hbg Models

    (61 mm) (502 mm) (349 mm) NOTE: The specification label is 30-3/8″ 18-3/8″ 2-1/2″ 25-3/4″ 13-3/4″ HBG-3018 located on the bottom of (771 mm) (466 mm) (61 mm) (654 mm) (349 mm) the unit. See label for serial 36-3/8″ 18-3/8″...
  • Page 7: Installation

    Damage to any countertop material caused by heat FIRE HAzARD: Locate unit a minimum of 1″ (25 mm) from generated from Hatco equipment is not covered under the combustible walls and materials. If safe distances are not Hatco warranty. Contact manufacturer of countertop maintained, combustion or discoloration could occur.
  • Page 8 INSTALLATION 8. Once all components are secured, proceed to the NOTICE OPERaTION section. NOTE: A 6′ (1829 mm) cord is supplied with this unit. Excess Do not modify wiring or cut thermostat capillary on control cord should be routed neatly so it does not hang down. box to increase-remote mounting distance.
  • Page 9: Operation

    OPERATION General 3. move the power ON/OFF (I/O) switch to the ON (I) position. Use the following procedure to turn on and operate a Heated Black Glass Shelf. CAUTION BURN HAzARD: Some exterior surfaces on the unit will get WARNING hot.
  • Page 10: Maintenance

    MAINTENANCE General Cleaning Sugary/Sticky Spills Hatco Heated Black Glass Shelves are designed for maximum To clean sugary/sticky spills, the unit should be warm while durability and performance, with minimum maintenance. cleaning for easier removal. 1. Turn off the unit and unplug power cord. CAUTION! Burn WARNING Hazard—Heated glass will be hot.
  • Page 11: Troubleshooting Guide

    Unit too hot. Temperature control set too high. adjust temperature control to a lower setting. Temperature control stuck in the HIGH position. Contact authorized Service agent or Hatco for assistance. Unit plugged into an incorrect power supply. Verify with qualified personnel that power supply matches unit specification.
  • Page 12: Options And Accessories

    OPTIONS AND ACCESSORIES Flush Mount Control Box Power ON/OFF Switch The flush mount control box is equipped with a power ON/OFF (HBGB Model) (I/O) switch. move the power ON/OFF (I/O) switch to the ON (I) a flush-style remote-mounted control box is available as a position to turn on the unit.
  • Page 13: Form No. Hbgm

    OPTIONS AND ACCESSORIES 4″ Adjustable Legs (HBG Model) Handles (HBG Model) Use the following procedure to install 4″ adjustable legs in place Field retrofittable handles are available for the HBG unit. of the rubber feet on an HBG unit. HANDLE-18-BLK ..Designer black powdercoated rounded NOTE: 4″...
  • Page 14: Hatco Limited Warranty

    Hatco’s written instructions or limiting the generality of the foregoing, SUCH WaRRaNTIES 18 months from the date of shipment from Hatco. Buyer must DO NOT COVER: Coated incandescent light bulbs, fluorescent establish the Product’s purchase date by registering the...
  • Page 15 NOTES Form No. HBGm-1111...
  • Page 16: Authorized Parts Distributors

    HATCO AUTHORIzED PARTS DISTRIBUTORS ALABAMA IOWA NEW yORK TEXAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...
