3-2
System Parameter
Alarm Mask
3.2 Connecting the iPERL System to a PC
You will need an OMNI Communicator 100A and drivers to connect the iPERL system to your PC. To obtain
these tools, please see your Sensus representative. To connect the iPERL system to your PC:
1. Attach the USB connector from the OMNI Communicator 100A to any available USB port on your
PC.
2. Check your Device Manager to determine the USB port's COM port settings.
3. Go to Start | Control Panel | System | Hardware | Device Manager.
4. Expand the Ports option to view the COM port assignment for the USB Serial Port.
5. In the Unipro application, click the Defaults menu option.
The Defaults screen appears, as shown in Figure 3-1.
6. Choose Connection Settings from the list.
WRMTM-40001
The types of alarms that will be recorded by the system. The
options are reboot, low battery, very low battery, configuration
error, empty pipe, magnetic tamper, reverse flow, leak, EMF
range, low battery volts, high temperature, flow field, high cur-
rent, glide slope, ADC failure, and touchread failure.
Figure 3-1: Defaults Screen
iPERL Water Management System Technical Manual
Programming
Definition
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the iPerl and is the answer not in the manual?
Questions and answers
how do I change the battery
The manual does not provide instructions for changing the battery in a Sensus iPERL. However, it does mention that the battery icon will turn on when the battery is low or the meter is near the end of its life. The iPERL system is designed as a sealed unit, meaning the battery is not user-replaceable. If the battery is low, you may need to contact Sensus or your utility provider for further assistance.
This answer is automatically generated
my sensus iperl water meter was installed upside down, with heat tape wrap around the top where the digital reader is to prevent freeze up, could this affect the accuracy of the meter ?
The Sensus iPERL water meter uses electromagnetic technology, which allows it to be installed in any orientation without affecting its accuracy. Therefore, installing it upside down should not impact its performance. However, wrapping heat tape around the digital reader could potentially interfere with the electronic components, display visibility, or long-term durability. It is recommended to follow the manufacturer's installation guidelines to ensure proper operation.
This answer is automatically generated

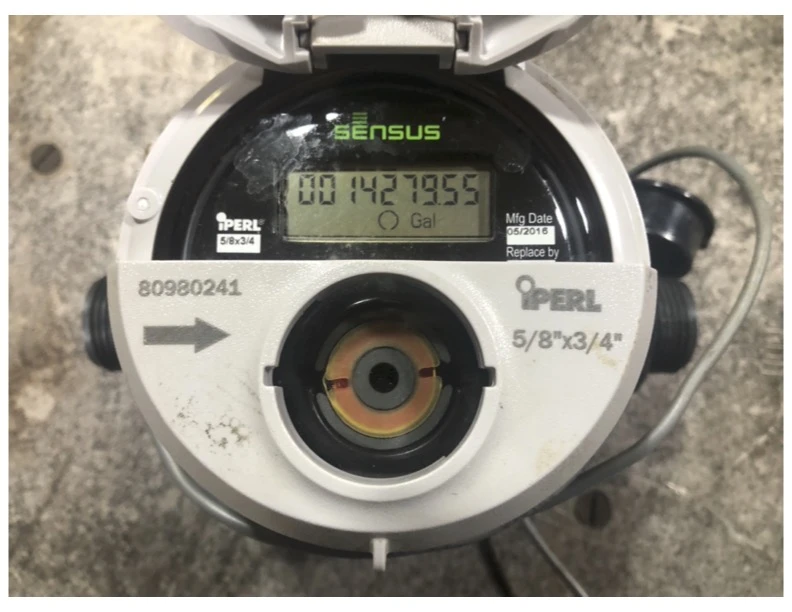

Does this meter display in hundredths of gallons?
Yes, the Sensus iPerl meter displays in hundredths of gallons, as indicated by the decimal point and register markings.
This answer is automatically generated
