- Page 1 HP U160 LED Backlit Monitor User Guide...
- Page 2 Company, L.P. Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services . Nothing herein should be construed as constituting an additional warranty.
-
Page 3: About This Guide
About This Guide This guide provides information on monitor features, setting up the monitor, and technical specifications. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. - Page 4 About This Guide...
-
Page 5: Table Of Contents
Cleaning the Monitor ......................3 Shipping the Monitor ......................3 3 Setting Up and Using the Monitor ......................... 4 Installing Drivers and Connecting an HP Notebook Computer ............4 Display Modes ............................6 Extend Mode (Default) ......................6 Mirror Mode ......................... 6 Primary Display ........................ - Page 6 ENERGY STAR® Qualification ..................13 Materials Disposal ......................14 Disposal of Waste Equipment by Users in Private Household in the European Union ..14 HP Recycling Program ...................... 15 Chemical Substances ......................15 Restriction of Hazardous Substances (RoHS) ..............15 Turkey EEE Regulation .....................
-
Page 7: Product Features

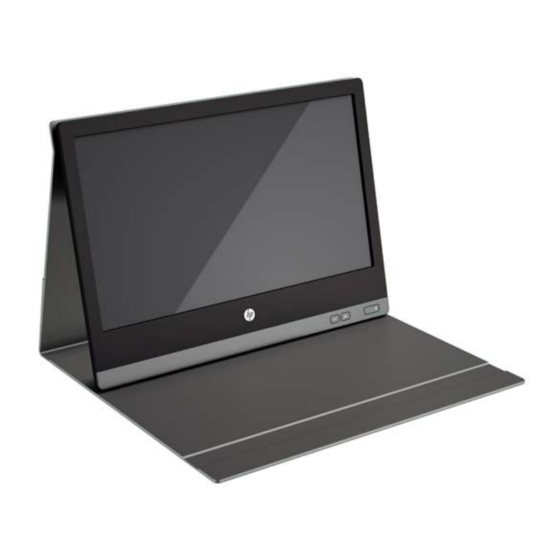

Product Features HP U160 LED Backlit Monitor The LCD (liquid crystal display) monitor has an active matrix, thin-film transistor (TFT) panel with the following features: ● 40 cm (15.6-inch) diagonal viewable area display with 1366 x 768 resolution, plus full-screen support for lower resolutions ●... -
Page 8: Safety And Maintenance Guidelines
Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails. Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor. WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause personal injury. -
Page 9: Cleaning The Monitor
Cleaning the Monitor Turn off the monitor and unplug the power cord from the back of the unit. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol. CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface. -
Page 10: Setting Up And Using The Monitor
Do not turn on power to the monitor until you have installed the drivers on your computer and connected the monitor to the computer. To set up the monitor: Insert the CD/DVD included with the monitor into an optical drive on your HP computer and install the drivers from the CD/DVD. - Page 11 Insert the single end of the provided USB “Y” cable into the USB port on the monitor and insert the two USB connectors on the other end of the cable into two USB ports on the computer. Turn on power to the monitor. Installing Drivers and Connecting an HP Notebook Computer...
-
Page 12: Display Modes
To set up the HP U160 monitor in extend mode, click on the USB Graphics icon in the system tray on the Windows taskbar and select Extend. The device will now be extending in the direction it was the last time the monitor was in this mode. -
Page 13: Primary Display
HP U160 monitor. Primary Display To set up the HP U160 monitor as the primary display, click on the USB Graphics icon in the system tray on the Windows taskbar and select Set as Main Monitor. -
Page 14: Front Panel Controls
Front Panel Controls Icon Button Function Minus Decreases brightness Plus Increases brightness Power Turns the monitor on or off NOTE: There is no on-screen display (OSD) menu for this model. Chapter 3 Setting Up and Using the Monitor... -
Page 15: Finding More Information
The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head. -
Page 16: Technical Specifications
Technical Specifications NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. HP U160 LED Backlit Monitor Table 5-1 U160 Specifications Input Terminal USB for power and video (cable included) Maximum Weight (Unpacked) 1.54 kg... -
Page 17: Agency Regulatory Notices
This device must accept any interference received, including interference that may cause undesired operation. For questions regarding the product, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-HP-INVENT (1-800 474-6836) Federal Communications Commission Notice... -
Page 18: Canadian Notice
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either within the product documentation or at the following web site: http://www.hp.eu/certificates... -
Page 19: Japanese Notice
0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider. -
Page 20: Materials Disposal
STAR® Power Management Web site at http://www.energystar.gov/powermanagement. Materials Disposal Some HP LCD monitors contain mercury in the fluorescent lamps that might require special handling at end-of-life. Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA) http://www.eiae.org. -
Page 21: Hp Recycling Program
Chemical Substances HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and Council). A chemical information report for this product can be found at http://www.hp.com/go/reach. -
Page 22: Turkey Eee Regulation
Turkey EEE Regulation In Conformity with the EEE Regulation EEE Yönetmeliğine Uygundur Ukraine Restriction of Hazardous Substances The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 No. 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment. -
Page 23: Lcd Monitor Quality And Pixel Policy
This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.
