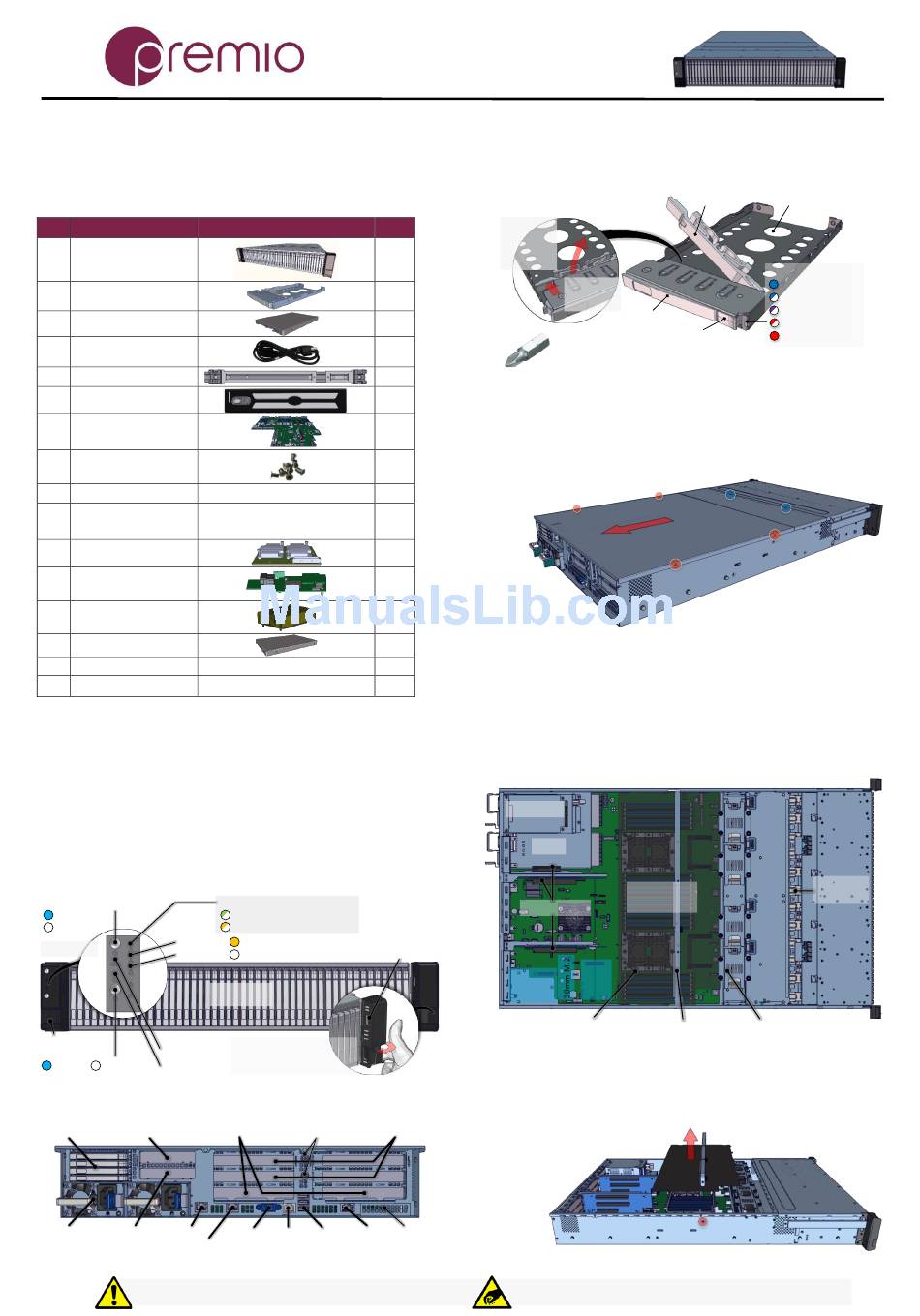

Premio FlacheSAN2-D5 Quick Manual

Thank you for your purchase of FlacheSAN2-D5, a 2U 48-Bay Skylake DP Storage Server!
1.
Check the content
your package contains the following:
# Description Image / Description
1 2U 48-Bay Enclosure
2 2.5" Drive Trays
3 Storage SSD (opt.)
4 Power Cable*
5 Rail Kit (optional)
6 Bezel (optional)
7
Intel S2600WT MB
(preinstalled)
8 6#32 IH#1 Screw Set
for MB / Riser*
9 IO Cards (optional)
10 SFF 8087-8643 cable
Used for IO cards, optionally
(preinstalled)
installed by order
11 IO Module (opt.)
12 RAID Module
(optional)
13 Heat sink
14 OS Disk (optional)
15 This quick guide
16 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
FlacheSAN2-D5 is a 48x 2.5" 7mm SSD based storage server in
a 2U space, supporting dual Skylake processors powered by
Intel S2600WF motherboard, 6x rear Gen3 x8 FH PCIe cards,
2x LP PCIe cards, and 4-Bay 2.5" canister.
Front view of the unit
Power Button / LED:
System On
System Off
Eth0 LED:
Front Panel
Eth1 LED
Ear Handle
NMI Button
ID Button / LED:
ID On ID Off Reset Button
Rear view of the unit
4x 2.5" Disk LP PCIe Slot FH HL PCIe Slots
Bay for OS
Gen2 x4, x8 mech Gen3 x8, x8 mech
LP PCIe Slot NIC 1
PSU
NIC 2
Gen3 x8, x8 mech
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
FlacheSAN2-D5 Quick Guide
Version 1.00 – 2017.09.18
of the box. Please confirm that
Qty
1
48+4
48
2
1
1
1
1 set
1 set
12
1
1
2
1-4
1
1 set
System Status LED:
(Blink) System Healthy
(Blink) System Degraded
Link UP /Act
USB Port
Link Down
48x 2.5"
Drive Bay
Turn the ear handle
inwards and use the index
finger to pull the unit
Expander FH FL PCIe Slots
Serial Ports
Gen3 x8, x16 mech
VGA RJ45 USB 3.0 IPMI
Port Serial Ports Port
Drive Tray
To unlock the drive lock:
1. Push the
drive lock
latch
inwards
2. Then pull
it upwards
Tool-less drive tray is best used for SSDs.
It is recommended to apply M3 screws when installing HDDs
3.
Remove the top cover
on the sides of the unit. Remove additional screws (blue
circles) to open the middle top cover (for fan module access).
Slide the covers towards the back of the unit.
4.
Inspect the internal components
FlacheSAN2-D5 system by default comes with Intel S2600WF
Skylake motherboard, an air duct, fan modules, backplanes,
IO cards for 48x SSDs with internal mini-SAS cables. Upon
request, optional items such as ROC Module, OS disk, BBU can
be provided. Note the locations of each component.
Rear 4-Bay
PSU
Riser Card x3
OCP
Module
Air Duct
5.
Remove air duct assembly
Remove two screws from the sides of the unit (red circle) and
pull the air duct / IO card support bar assembly up.
IOM
Slot
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
Drive Lock
(unlocked position)
Tray Handle
Tray Latch
by removing the 4 screws
Motherboard
S2600WF
SAS
Mod
IO Card Support Bar Fan Module x4
2.5" 7mm
HDD / SSD
Tray
Drive Status LED:
(Solid) Drive Online
(Blink) Drive Activity
(Fast Blink) Drive Locate
(Slow Blink) Rebuild
(Solid) Drive Fail
of the chassis.
Backplane
x4
from the chassis.
