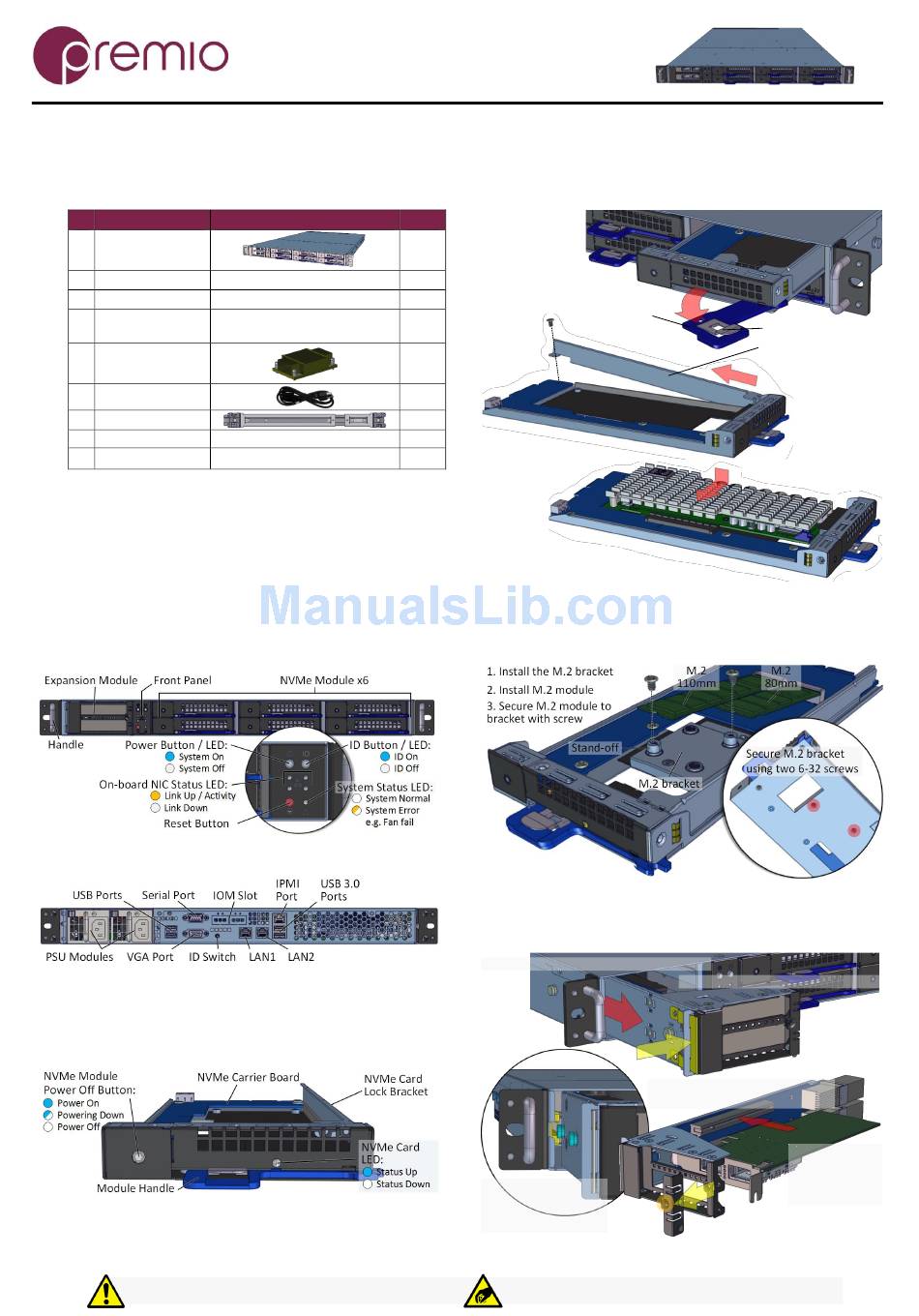

Premio FlacheSAN1N6C-D4 Quick Manual

Thank you for your purchase of FlacheSAN1N6C-D4 1U 6x NVMe Haswell
1.
Check the content
your package contains the following:
# Description
1 Enclosure
2 Motherboard
3 OS drive
4 CPU and memory
(optional)
5 Heat sink
(optional)
6 Power Cable*
7 Slide Rail Kit (opt)
8 This Quick Guide
9 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
FlacheSAN1N6 is a 6-Bay NVMe storage server supporting
Intel Xeon E5-2600v3/v4 processor, front hot-swap low
profile PCIe3 x4 NVMe cards, up to 2x PCIe3 x16 expansion
slots, and PCIe3 x8 IOM.
Front View
Rear View
NVMe Carrier
FlacheSAN1N NVMe carrier supports multiple low-profile
NVMe PCIe cards such as Kingston EP1000 by Liqid, Samsung
SM1715; and M.2 form factor NVMe e.g. SM951-NVme.
To hot swap the NVMe cards, press the Power Off button,
wait until the button is completely off before replacing it.
Installation and service of this product should be conducted by trained
personnels to avoid any bodily injury from electric shock or heavy object
FlacheSAN1N6C-D4 Quick Guide
Version 1.10 – 2017.02.13
of the box. Please verify that
Image / Description
Asrock EP2C612D16FM
optional
Pre-installed upon request
Server!
3.
Install NVMe cards
carrier supports one low-profile PCIe3 x4 NVMe card.
Qty
1. Press the latch
and pull the carrier
1
handle outwards
2. Remove the carrier
1
from the enclosure
1 or 2
Carrier Handle
2 sets
2
2
1
1
1 set
5. Insert the NVMe
card to the slot
6. Secure the card by replacing the lock
bracket and secure it with the screw
When using M.2 NVMe cards, M.2 brackets are needed to
secure M.2 cards on. See below on how to install M.2 to the
carrier:
4.
Install Expansion Card
module support up to 2x PCIe3 x16 low-profile cards.
1. Push the latch inwards (yellow markings)
5. Return the expander
module to the unit.
Make sure the pins go
into the pin guide
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
to the carrier as follows. One
Latch
Lock Bracket
3. Remove the
screw securing
the lock bracket
4. Remove the
lock bracket
to the unit. Expansion
2. Remove the expansion card module
3. Remove the screw (yellow circle)
to remove the lock bracket
4. Insert the card
(with low profile
bracket) to the
riser card slot
