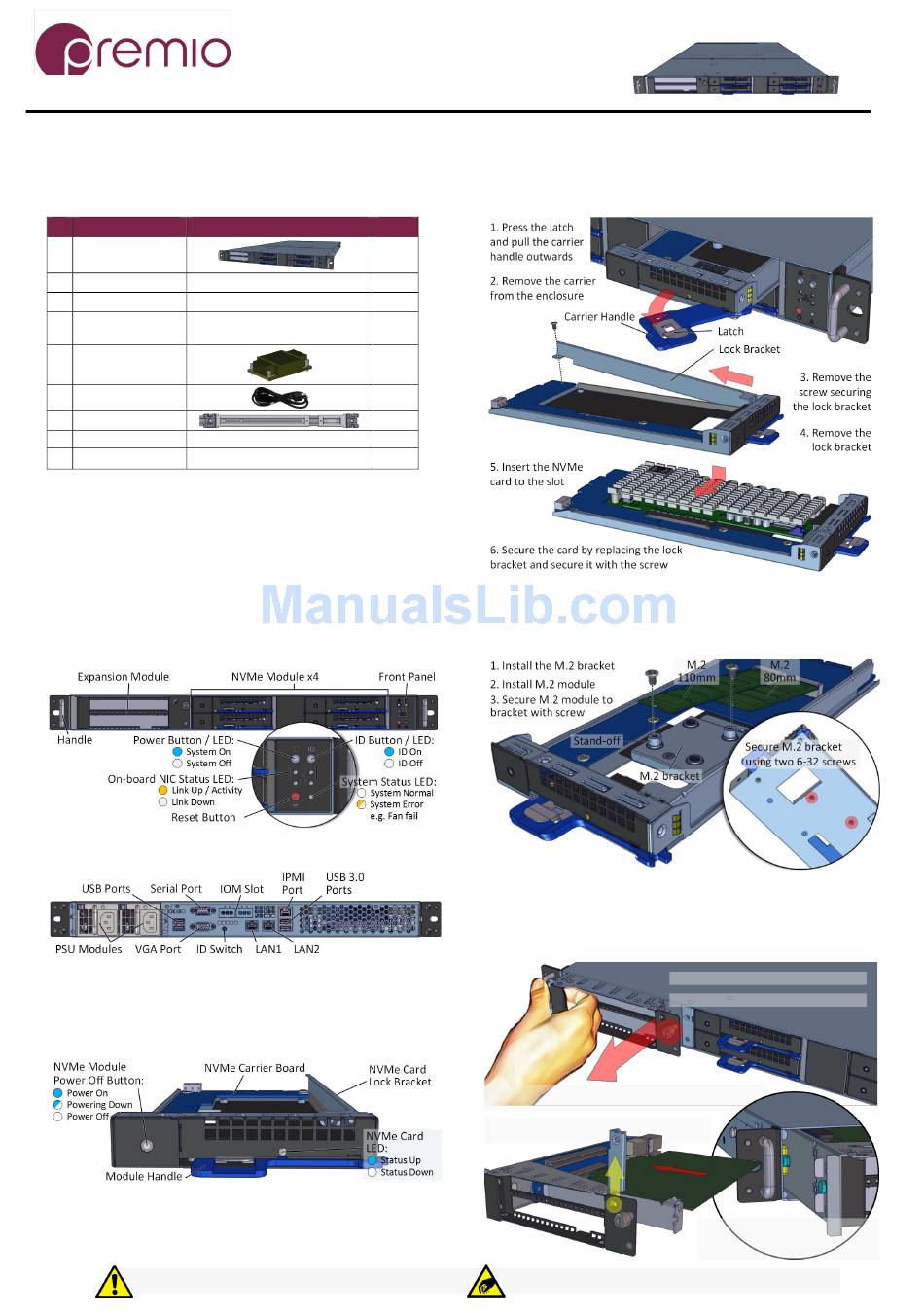

Premio FlacheSAN1N4C-D4 Quick Manual

Thank you for your purchase of Premio FlacheSAN1N4C-D4, 1U 4x NVMe
1.
Check the content
your package contains the following:
# Description Image / Description
1 Enclosure
2 Motherboard
Asrock EP2C612D16FM
3 OS drive
optional
4 CPU and memory
Pre-installed upon request
(optional)
5 Heat sink
(optional)
6 Power Cable*
7 Slide Rail Kit (opt)
8 This Quick Guide
9 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
FlacheSAN1N4C-D4 is a 4-Bay NVMe storage server
supporting Intel Xeon E5-2600v3/v4 processor, front hot-
swap low profile PCIe3 x8 NVMe cards, up to 2x PCIe3 x16
expansion slots, and PCIe3 x8 IOM.
Front View
Rear View
NVMe Carrier
FlacheSAN1N NVMe carrier supports multiple low-profile
NVMe PCIe cards such as Kingston EP1000 by Liqid, Samsung
SM1715; and M.2 form factor NVMe e.g. SM951-NVme.
To hot swap the NVMe cards, press the Power Off button,
wait until the button is completely off before replacing it.
Installation and service of this product should be conducted by trained
personnels to avoid any bodily injury from electric shock or heavy object
FlacheSAN1N4C-D4 Quick Guide
Version 1.20 – 2017.02.13
Haswell Server!
of the box. Please verify that
Qty
1
1
1 or 2
2 sets
2
2
1
1
1 set
3.
Install NVMe cards
carrier supports one low-profile PCIe3 x8 NVMe card.
When using M.2 NVMe cards, M.2 brackets are needed to
secure M.2 cards on. See below on how to install M.2 to the
carrier:
4.
Install Expansion Card
module support up to 2x PCIe3 x16 low-profile or full-height
cards.
3. Remove the screw (yellow circle) to remove the lock
bracket (yellow arrow)
4. Insert the card (use full height bracket) to
the riser card slot
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
to the carrier as follows. One
to the unit. Expansion
1. Loosen the thumbscrew (red circle)
2. Remove the expansion card module
5. Return the expander module to
the unit. Make sure the pins go
into the pin guide
