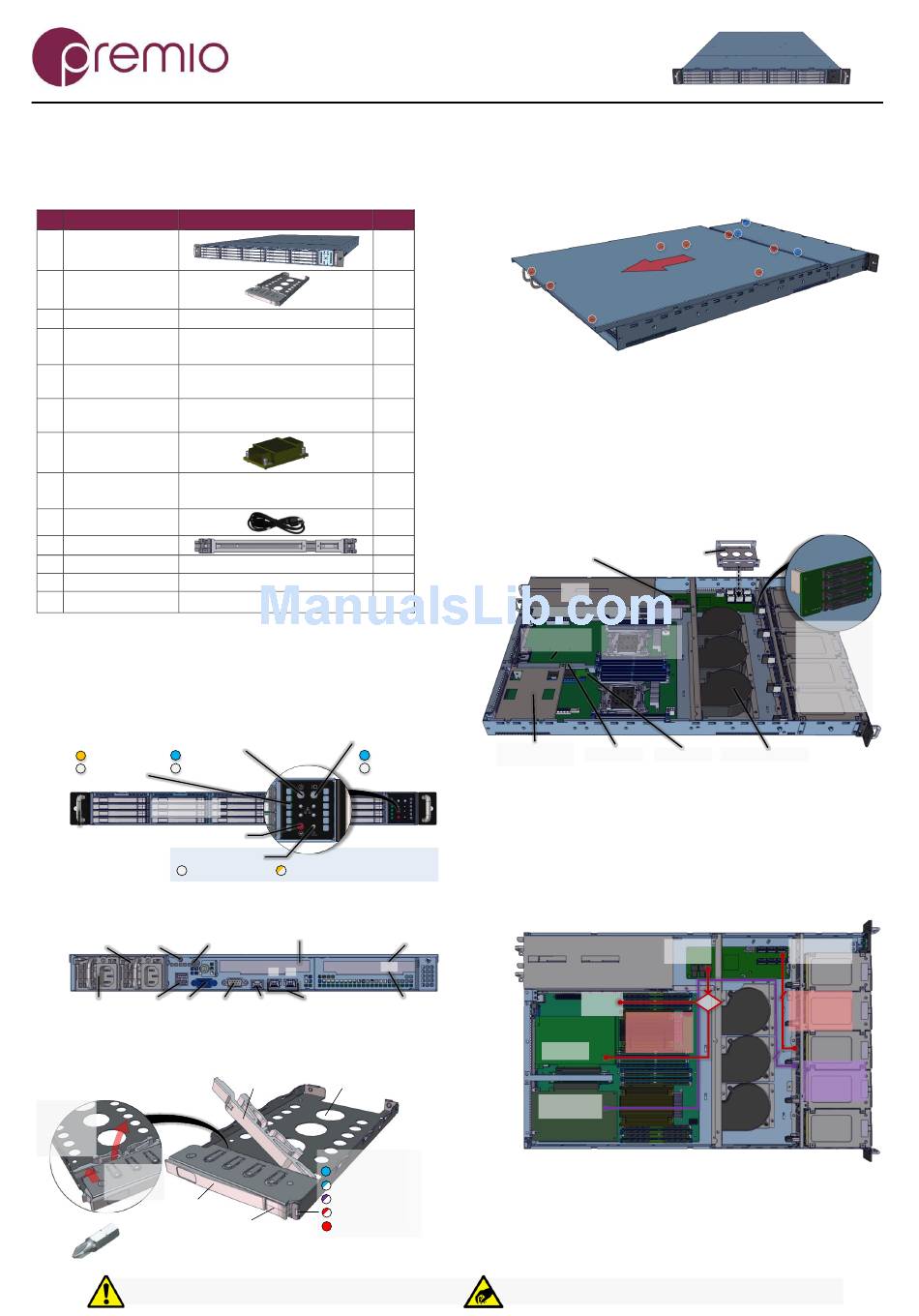

Premio FlacheSAN1L-D4 Quick Manual

Thank you for your purchase of FlacheSAN1L-D3 1U 20-Bay Haswell Dual-Processor Storage Server!
1.
Check the content
your package contains the following:
# Description Image / Description
1 1U20 Enclosure,
27" depth
2 2.5" Tool-less
Drive Trays
3 Motherboard
Asrock EP2C612D16NM series
4 Internal SAS
SFF8087-8087 or SFF8087-8643
cables
depending on SKU
5 Expander board or
Depending on SKU
OS disk bracket
6 CPU and memory
Pre-installed upon request
(optional)
7 Heat sink
(optional)
8 Screw Sets*
for drives, motherboard, and rail
/ rack
9 Power Cable*
10 Slide Rail Kit (opt)
11 Front Bezel (opt)
12 This Quick Guide
13 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
Front View
NIC LED: Power Button / LED:
System On
Link UP /Act
Link Down System Off
20 Drive Bays
Ear Handle Reset Button
System Status LED:
System Normal
Rear View
Power Alarm Mute Serial
Supply B Button Port
Power USB3.0 VGA
Supply A Ports Port
Drive Tray
To unlock the drive lock:
1. Push the
drive lock
latch
inwards
2. Then pull
it upwards
Tray Handle
Tray Latch
Tool-less drive tray is best used for SSDs.
It is recommended to apply M3 screws when installing HDDs
Installation and service of this product should be conducted by a trained
personnel to avoid any bodily injury from electric shock or heavy object hazard
FlacheSAN1L-D4 Enclosure Quick Guide
Version 2.80 – 2016.03.28
of the box. Please verify that
Qty
1
20
1
5
1
2
sets
2
3
sets
2
1
1
1 set
ID Button / LED:
ID On
ID Off
1 2
Front Panel
(Blink) System Error e.g. Fan fail
PCIe Gen3 10GbE Slot PCIe Gen3
or
x16 Slot w/ mezzanine
or
1 2
COM IPMI 1GbE or 10GbE OS Disks
Port LAN Port Ports
Drive Lock
(unlocked position) 2.5" 7mm
HDD / SSD
Tray
Drive Status LED:
(Solid) Drive Online
(Blink) Drive Activity
(Fast Blink) Drive Locate
(Slow Blink) Rebuild
(Solid) Drive Fail
3.
Remove the top cover
(red circles) on the top of the unit and slide the cover towards
the back of the unit.
Remove additional 3 screws (blue circles) to open the middle
top cover (for backplane access).
4.
Inspect the internal
consists of an Asrock EP2C612D16NM series Haswell DP
Grantley motherboard, a set of backplanes, blower modules,
PCIe riser cards for IO cards, and an option of an expander
module or a drive bracket depending on the order SKU.
Expander Board
(optional)
Mezzannine
Slot (optional)
OS Disk Bracket
(optional)
See illustration below for the data path from disk devices to
the host. Two options are available: through an expander (red
path), and with no expander (purple path).
For expander mode, a set of SAS cables are routed from
backplanes to expander board and then a choice of routing to
an IO card or an on-board SCU port (SAS2/SATA3 6Gb/s).
For OS, in place of one PCIE6 card, OS disk bracket is used.
x16 Slot
IO Card
IO Card with
5 SAS ports
For a non-expander SKU, in place of expander board, an OS
disk bracket occupies the space. Due to an absence of the
expander board, to access all 20 drives from the front bay, an
IO card with five SAS ports is required, e.g. Adaptec 72405.
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
by removing the 8 screws
of the chassis. By default, it
OS Disk Bracket
(optional)
PSU
Asrock
EP2C612D16NM
motherboard
PCIE7 Riser PCIE6 Riser Blower Module x3
SAS UP
Port(s)
LSI3008
OR
Ports
1 SFF 8643 to
8643 or 8087
SAS cable
5 columns of
backplanes
with one SFF-
8087 mini-SAS
connector and
4 SATA drive
slots each
5 SAS DOWN
Ports
5 SFF 8087-
8087 SAS
cables
5 SFF 8087-
8643 SAS
cables
