Robitronic Overloader 2 Instruction Manual page 6

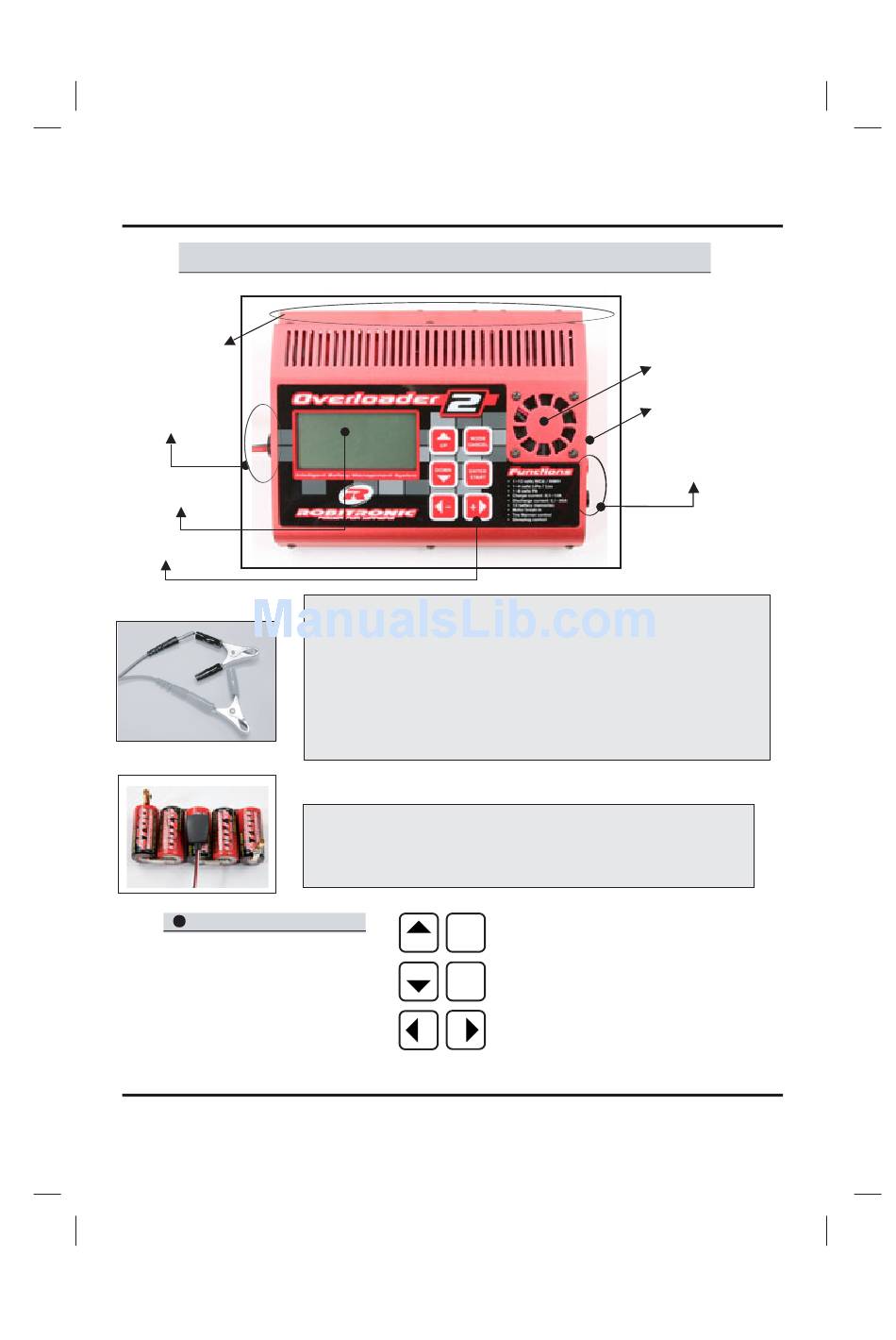

Charger – general description
Cooling Section
Power Input
LCD Display
Operating buttons
Operating buttons
The power input cord is equipped with 4mm connectors for
using a power supply. Crocodile style connectors are also
included. They are directly compatible with the 4mm power
input cord connectors. This way you can easily use your
Overloader2 with various input power sources (power supply,
12V car battery,...). PLEASE NOTE: it is very important that
you connect the black input cord with the minus pole (-) and
the red input cord with the plus pole (+) of your power source.
For best connect ability and safe operations the
temperature sensor is equipped with a strong magnet and
therefore can be easily attached to most kind of common
hobby batteries.
MODE /
CANCEL
UP
DOWN
ENTER /
START
_
+
6
Cooling fan
Serial PC connection
Power output &
temperature sensor
