Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H.'s RealTrax
™
ScaleTrax
or traditional tubular
track. It is also compatible with most
standard AC transformers. (See page
15 for a complete list of compatible
transformers and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE

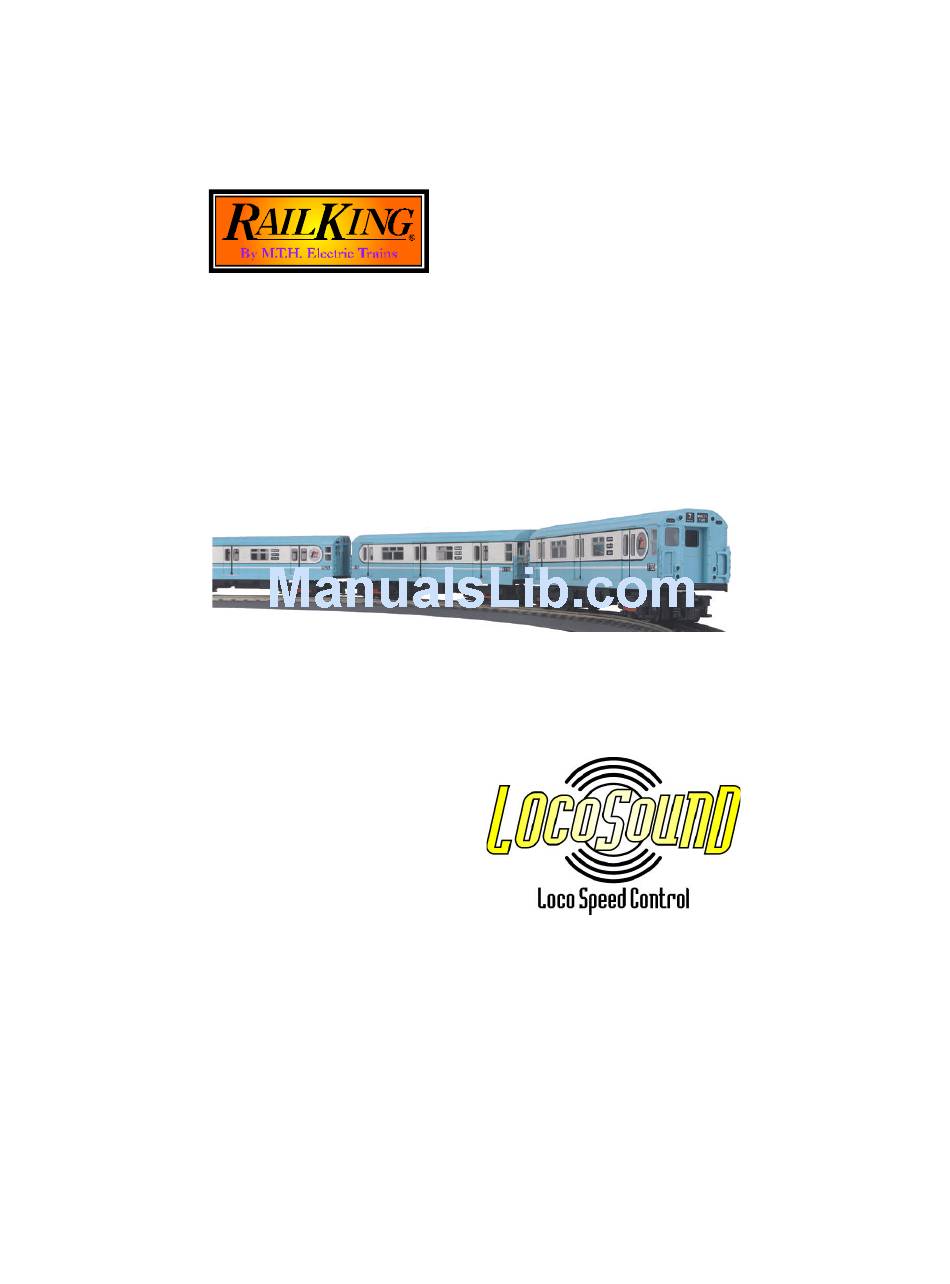

RailKing R-36
Subway Set
OPERATOR'S MANUAL
®
or
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rail King 30-2274-0
Summary of Contents for Rail King 30-2274-0
- Page 1 RailKing R-36 Subway Set OPERATOR’S MANUAL Compatibility This engine will operate on any traditional O-31 Gauge track system, ® including M.T.H.’s RealTrax ™ ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 15 for a complete list of compatible transformers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Checklis t....................3 Lubrication.....................3 Basic Operation .....................4 Loco-Sound Operating Instructions..............5 Activating Loco-Sound Features............5 Speed Control..................6 Locking Locomotive Into A Direction..........6 Using Proto-Cast and Proto-Dispatch Features........5 Maintenance......................8 Lubricating and Greasing Instructions...........8 Cleaning The Wheels, Tires and Track..........9 Lightbulb Replacement Instructions............ -
Page 3: Set Up Checklist
Set Up Checklist • Lubricate the locomotive • Apply power to run as described in the Basic Operating Section of this manual Lubrication DO NOT OVER OIL You should lubricate the engine to prevent it from squeaking. Use light household oil and follow the lubrication points marked “L” in Fig. -
Page 4: Basic Operation
Basic Operation Throttle Throttle up the power to your track. Advance the throttle until 12 – 16 volts is applied, then put the subway set into forward motion by either firmly pressing the Direction button on your transformer or remote once or dropping and advancing the throttle. -
Page 5: Loco-Sound Operating Instructions
Loco-Sound Operating Instructions Activating Loco-Sound Features This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment. Timing Chart Press ½ Sec. Press ½ Sec. Press Pause Pause... -
Page 6: Speed Control
Speed Control M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. -
Page 7: Using Proto-Cast And Proto-Dispatch Features
not change direction (including going into neutral) until you repeat the 1 horn, 3 bells code to return the engine to its normal condition, even if the engine is kept without power for extended periods of time. Place Direction Lock Engine into Horn Bell... -
Page 8: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and linkage components and pickup rollers DO NOT to prevent squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit. -
Page 9: Cleaning The Wheels, Tires And Track
5. Repeat the procedure for the other motor and truck. 6. Reassemble the chassis and body, being careful that the wires are not caught between the body and chassis, as this can lead to a short that may damage the electronics beyond repair. 7. -
Page 10: Lightbulb Replacement Instructions
Lightbulb Replacement Instructions Interior Lights To replace the interior lights in the powered unit: 1. Follow the shell removal instructions found in the “Lubrication and Greasing” section of this booklet. 2. Pull bulb straight out to remove. Gently Pull Bulbs Away From Socket To Remove Figure 5 To replace the interior lights in the... - Page 11 To replace the headlights and other Gently Pull Bulbs end-of-car lights in the powered unit: Away From Socket To Remove 1. Remove the shell as described in the “Lubrication and Greasing” section of this booklet. 2. Pull out the bulb(s) you need to change.
-
Page 12: Traction Tire Replacement
Traction Tire Replacement Your subway set is equipped with two neoprene rubber traction tires on each powered truck block. While these tires are extremely durable, you may need to replace them at some point. Screws to Remove Trucksides First, remove the truck sides from the truck block. -
Page 13: Troubleshooting Loco-Sound® 2.0 Problems
Troubleshooting Loco-Sound Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580;... - Page 14 Volume Remedy Loco-Sound volume is set too high. The sounds seem distorted, especially Turn the volume control knob on the when the whistle or bell is activated. bottom of the chassis counter- clockwise to reduce the volume. RailKing R-36 Subway Set...
-
Page 15: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 16: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric Trains to obtain Repair Authorization. - Page 17 AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING RETAILER LIST ALABAMA FLORIDA LOUISIANA SOUTHERLAND STATION DEPOT HOBBY SHOP AMERICA'S TRAIN YARD HUNTSVILLE LAKE WORTH BATON ROUGE 256-533-4720 561-585-1982 225-926-5592 railway@bellsouth.net jimmyt1982@aol.com www.depothobbies.com MAINE ARIZONA...
- Page 18 MISSOURI COUNTRY AND STUFF RICK'S TOY TRAINS SWITCH STAND ANDOVER TOLEDO SAINT LOUIS 973-786-7086 419-478-0171 314-781-4458 stuff@crystal.palace.net r41877@earthlink.com T & K HOBBY SHOP RIDGEFIELD HOBBY BRIDGEPORT MARK TWAIN HOBBY CENTER RIDGEFIELD 740-633-6607 ST. CHARLES 201-943-2636 salea@tkhobbies.com 636-946-2816 www.tkhobbies.com webmaster@hobby1.com COLUMBUS TRAIN STATION www.hobby1.com COLUMBUS TRAINS-N- THINGS...
- Page 19 THE STATION TENNESSEE WISCONSIN NEW CUMBERLAND MODEL RAILROAD & HOBBY SHOP SOMMERFELD'S TRAINS 717-774-7096 MEMPHIS BUTLER station@paonline.com 901-384-6500 262-783-7797 BUSSINGER TRAINS mrhs99@earthlink.net questions@sommerfelds.com AMBLER www.modelrailroadandhobby.com www.sommerfelds.com 215-628-2366 choochoos@icdc.com TEXAS G B T V & TRAINS www.icdc.com/~btrains HOBBY TIME GREEN BAY AMARILLO 920-496-9697 CHARLEROI SWEEPER CENTER...
