By MTH Electric Trains

TROLLEY CAR

OPERATING INSTRUCTIONS

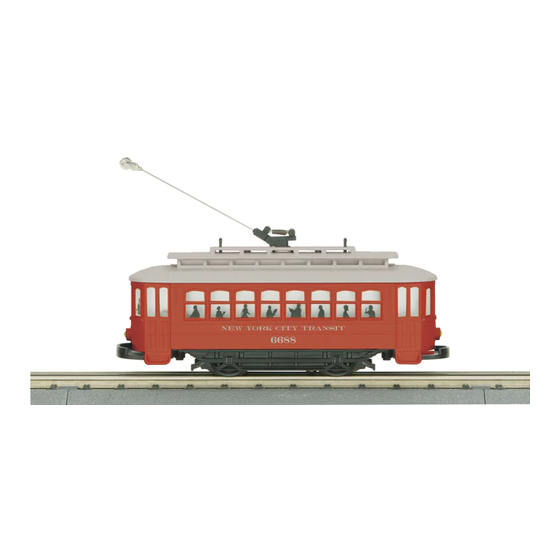

Your new RailKing Trolley Car is designed to bring excitement to

someone new to model railroading or to add fun to an existing layout.

The trolley's sturdy ABS plastic construction with all-metal wheels and

gears are designed for years of operating fun.

Table of Contents

Need help?

Do you have a question about the TROLLEY CAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Rail King TROLLEY CAR

Page 1: Operating Instructions
By MTH Electric Trains TROLLEY CAR OPERATING INSTRUCTIONS Your new RailKing Trolley Car is designed to bring excitement to someone new to model railroading or to add fun to an existing layout. The trolley’s sturdy ABS plastic construction with all-metal wheels and...
Page 2: Table Of Contents
Table Of Contents Compatibility Set Up Lubricating the Trolley Car Exploded Parts View Diagram Transformer Compatibility Chart Safety Precautions Service and Warranty Information Trolley Operating Instructions...
Page 3: Compatibility
Set Up and Operation • Lubricate the trolley car as shown on page 4. • Place the trolley car on the track and apply power to run. Once power has been applied, the trolley car will immediately begin moving. The trolley will reverse direction when the Automatic Reversing Bumper Mechanism (ARBM) in its bumper is depressed.
Page 4: Lubricating The Trolley Car
Lubricating the Trolley Car Before you run your trolley car, you must lubricate it to prevent squeaking and premature wear. Use a light household or hobby oil to lubricate the gears, truck block bronze bushings, and pickup rollers. Apply a small drop of oil (a pinpoint oiler will help place the right amount of oil where you need it) to each of the points indicated below.
Page 5 Lamp Replacement The trolley uses two LEDs for directional headlights and two incandescent bulbs for interior lights. To replace the headlights or interior lights remove the four screws that attach the body to the frame, shown in figure 2. Lift the body from the frame and replace the bulbs. Note: Although the body shell can be rotated 180 degrees and still be fitted to the frame, the directional lights will only work properly in the original orientation.
Page 6: Exploded Parts View Diagram
Exploded Parts View The chart and diagram on the next few pages should be referenced when requesting replacement parts for your RailKing® locomotive. Parts can be ordered directly from MTH Electric Trains, 7020 Columbia Gateway Drive, Columbia, MD 21046-1532. Trolley P a r t s Name and Number Part #...
Page 7 Trolley Operating Instructions...
Page 8: Transformer Compatibility And Wiring Chart
TRANSFORMER COMPATIBILITY AND WIRING CHART The chart below lists many of the compatible transformers and how the terminals on these compatible transformers should be attached to your layout. Transformer Min/Max. Power Transformer Center Rail Outside Rail Model Voltage Rating Type Lionel 1032 5-16v 90-Watt...
Page 9: Safety Precautions
WARNING: When using electrical products, basic safety precautions should be followed including the following: CAUTION: Electrically Operated Product: Not recommended for children under 10 years of age. M.T.H. recommends adult supervision with children ages 10 - 16. As with all electric products, precautions should be observed during handling and use to reduce the risk of electric shock.
Page 10: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H.
