Set Countdown Timer
The Light Controller offers a countdown timer function for
your pool and spa light(s). When activated, the lights will
stay on for a predetermined amount of time set by the
user, then turn off automatically. To set the countdown
timer follow the procedure below. When selecting the
duration, note that each lit LED represents 1 hour. The
total number of LEDs that are lit = the total duration in
hours. The lights will automatically turn off at the end of
the countdown duration.

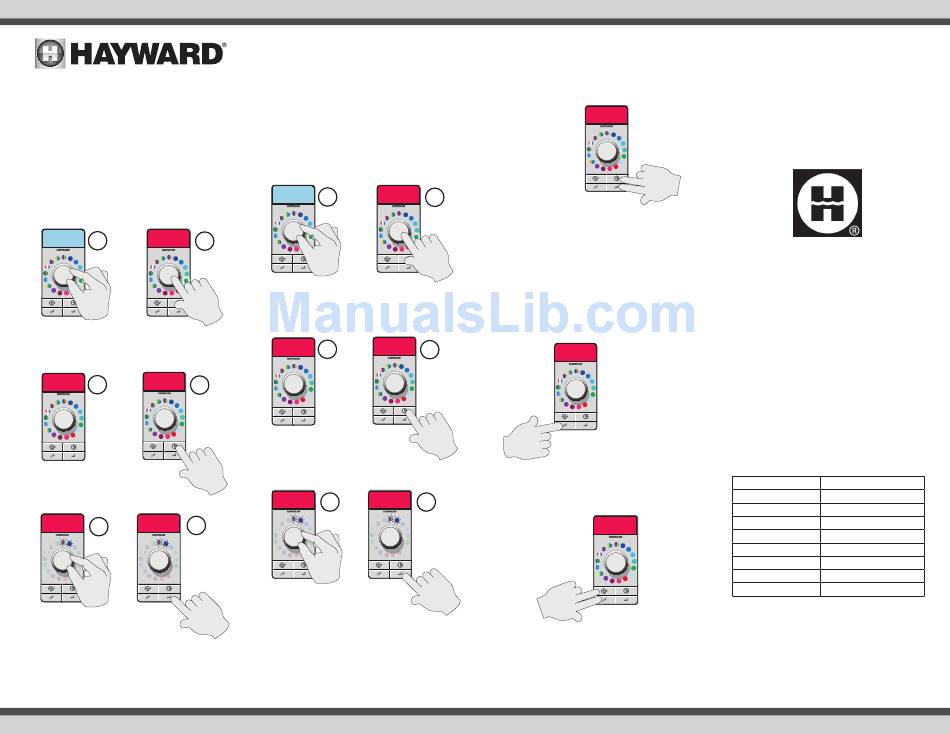

The example below shows that the lights will stay on for
2 hours and then automatically shut off.
1 2
Rotate CENTER
Briefly push the
KNOB to select
CENTER KNOB to
desired color or
save
show
3 4
Push the
Wait until all
SCHEDULE
LEDs stop
button
blinking
6
5
Select the number
Briefly push
of hours (each lit
the ENTER
LED = 1 hour)
button to
save
The Light Controller will indicate that a new countdown
timer has been set by blinking LED 5 (see LED Indicator
Codes) and then revert to Show/Color mode.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Set Recurring Schedule
The procedure to set a schedule is identical to setting a
countdown timer, except that the ENTER button is held for
3 seconds at the end of the procedure. Once set, the lights
will turn on daily at the same time each day and stay on for
the duration that was selected. If the lights are already on,
they will change to the scheduled color or show.
The example below shows that the lights will turn on
automatically every day (beginning immediately after the
schedule is saved) and shut off after 2 hours.
1 2
Rotate CENTER
Briefly push the
KNOB to select
CENTER KNOB to
desired color or
save
show
3
4
Push the
Wait until all
SCHEDULE
LEDs stop
button
blinking
5 6
Select the number
of hours (each lit
LED = 1 hour)
Push and hold the
ENTER button for 3
seconds to save
The Light Controller will indicate that a new schedule has
been set by blinking LED 4 (see LED Indicator Codes) and
then revert to Show/Color mode.
Cancelling a Countdown Timer or Schedule
The procedure for cancelling a countdown timer or a
schedule is identical. Push and hold both the SCHEDULE
button and the ENTER button for 3 seconds. The Light
Controller will cancel the existing settings and will revert
to Show/Color mode.
Push and hold the
SCHEDULE and
ENTER buttons for
3 seconds
The Light Controller will indicate that a countdown timer
or schedule has been cancelled by blinking LED 6 (see
LED Indicator Codes).
Resync
Occasionally the Light Controller may have to be re-
synchronized with the lights due to a power interruption
or other type of communication error. In that case, press
and hold the Resync button for 3 seconds. The Light
Controller will initiate a re-synchronization process that
will re-establish communication with the pool/spa lights.
This may take up to 1 minute.
Push and hold the
RESYNC button for
3 seconds
Factory Reset
To clear all previous settings, press the SHOW/COLOR and
RESYNC buttons and hold for 3 seconds.
The Light Controller will indicate a factory reset by blinking
LED 7 (see LED Indicator Codes).
Warranty and Other Languages
Refer to hayward.com for other languages and warranty
information.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
ColorLogic Light Controller
®
Owner's Manual
LKCUS1100
LKCUB1100
LED Indicator Codes
The Light Controller can indicate certain conditions by
blinking the front LEDs. Refer to the following conditions
and their corresponding indicator codes (LED 1 is at the
12 o'clock position, LED 2 is the 1st LED after the 12
o'clock position, etc.).
Condition Indicator Code
Same Selection LED 1 blinking
Overload LED 2 blinking
Busy LED 3 blinking
Recurring Schedule LED 4 blinking
One Time Countdown LED 5 blinking
Timer Reset LED 6 blinking
Factory Reset LED 7 blinking
Processing Request All LEDs in a circular pattern
