RIOTEC CR6327A Programming Quick Manual

Programming Quick Guide
-CR6327A. / FS5027A

Installation

Make sure that the scanner has the correct cable to plug in the PC as
below described:
*Note : Please install PL-2303 driver for USB serial

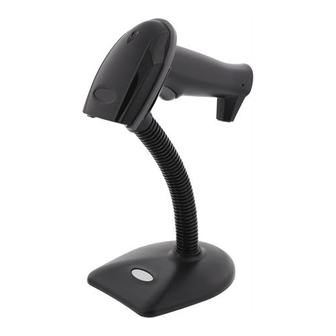

Auto-sensing setup

The auto-sensing will be activated while
scanner puts on stand. When scanner is
removed from stand, it becomes trigger
mode.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect
codes, please scan from A1 to A6 for USB HID or B1 to B6 for RS232 or USB
Serial. This will reset the scanner to its factory defaults.
USB HID
A1
A2
A3
A4
A5
A6
* Note: Please install PL-2303 driver for USB Serial.

Barcode Configuration Method:

(Flow chart for setup procedure :)
Start
Configuration
1
Keyboard Country ( FOR USB HID Only)
Scan the appropriate country code below to program the keyboard for your
country or language. As a general rule, the following characters are not
supported by the scanner for countries other than the United States:
@ | $ # { } [ ] = / ' \ < > ~
RS232 or USB Serial
B1
USA
(Original setting)
B2
Denmark
B3
France
B4
Italy
1D Symbologies On/Off – 1
B5
ENABLE
B6
ENABLE
ENABLE
ENABLE
ENABLE
End
Configuration
Japan
Finland
Germany
Norway
CODE 39 DISABLE
CODE 39 Transmit
Start/Stop Character DISABLE
CODE 39
FULL ASCII DISABLE
CODE 128 DISABLE
GS1-128
UCC/EAN-128 DISABLE
