RIOTEC LS6007 User Manual

Laser barcode scanner
Hide thumbs

Advertisement

Table of Contents

Laser Barcode
Scanner
Model no. LS6007
FS5027
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS6007 and is the answer not in the manual?

Questions and answers

Related Manuals for RIOTEC LS6007

Summary of Contents for RIOTEC LS6007

  • Page 1 Laser Barcode Scanner Model no. LS6007 FS5027 User’s Manual...

  • Page 2: Fcc Compliance

    FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION……………………………………………………………………………… ..…2~3 INSTALLATION………………………………………………………………………………..…...4~7 SET UP FROM BAR CODE LABEL………………………………………………………….……..8 Multi-interface Functions……….………………………………………………………9~11 Interface-Serial……..……………………………………………………………………12~13 1D Symbologies On/Off……………………………………………………………….14~15 2D Symbologies On/Off…………………………………………………………………….16 Symbologies Set Up…………………………………………………………………….17~21 Termination String Setup Bar Codes…………………………………………………..22...

  • Page 4: Introduction

    Introduction...

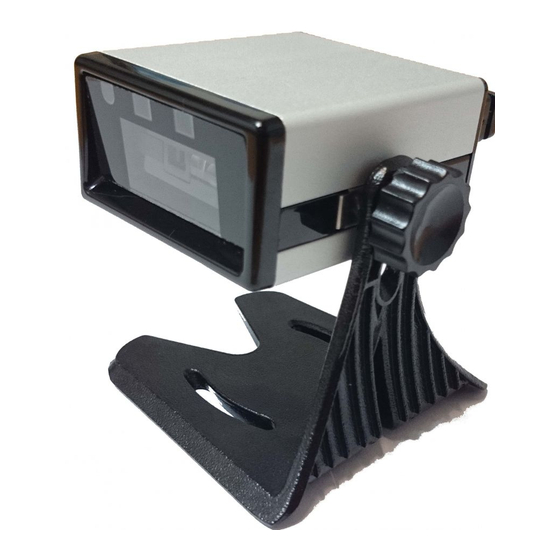

  • Page 5 RIOTEC LS6007 FS5027 2D Laser barcode scanner, using Intermec engine, combines the best scanning performance and value. The device provides an accurate, easy, and fast method of data entry and data storage for computerized information systems. It is easy to install drivers to operate.

  • Page 6: Installation

    Installation Insert the plug on the free end of the Communications Cable into the appropriate connector on the host as below described: USB cable Connection: Connect with host Reset Configuration to Defaults If you are unsure of the scanner configuration or have scanned the incorrect codes, please scan the “Reset Configuration to Defaults”...
  • Page 7 NOTE: for Serial port (RS232 cable), please plug the power connector of 5V power adapter to RS232 cable. Be sure that Host computer is turned OFF Connect scanner cable to the USB port(COM port) on the host system. .Ensure that all connections are secure. Turn on your host. And please operate the scanner under the right software application.
  • Page 8 Reset Configuration to Defaults If you are unsure of the scanner configuration or have scanned the incorrect codes, please scan the “Reset Configuration to Defaults” barcode. This will reset the scanner to its factory defaults settings. Please read following 2 barcode to reset to defaults. Load All Factory Default 【...
  • Page 9 If USB(HID) VERSION,PLEASE SET THE OUT PUT MODE AS USB(HID) Operation Be sure that Host computer is turned OFF. Ensure that all connections are secure. Turn on your host. And please operate the scanner under the right software application, such as Notepad or Word(RS232 interface should be under Hyper Terminal”...

  • Page 10: Setup From Bar Code Label

    Setup from Bar Code Label...

  • Page 11: Multi-Interface Functions

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Multi-Interface Functions Please read following 2 barcode to reset to defaults. RESET CONFIGURATION TO DEFAULTS Save as User Default Load User Default 【 【 【 【 Pro CMD： ： ： ： 0001150】 】 】 】 【...
  • Page 12 ** Code Programming ON ** Code Programming OFF 【 【 【 【 Pro CMD： ： ： ： 0006010】 】 】 】 【 【 【 【 Pro CMD： ： ： ： 0006000】 】 】 】 Sensor ** High Sensitivity (= 4) Mode Sensor Mode Timeout Pro CMD：0313000...
  • Page 13 ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Prohibit Reading All = allow reading Prohibit Prohibit Prohibit Allow Reading All = enable to read all symbologies and programming codes programming codes only. Pro CMD：0001020 Pro CMD：0001010 Allow Reading All 1D Prohibit Reading All 1D Pro CMD：0001040...

  • Page 14: Interface-Serial

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Interface – Serial - 1 BAUD SERIAL BAUD RATE - 4800 RATE SERIAL BAUD RATE - 2400 Pro CMD：0100010 Pro CMD：0100020 SERIAL BAUD RATE - 9600 SERIAL BAUD RATE - 14400 Pro CMD：0100030 Pro CMD：0100040 SERIAL BAUD RATE -19200...

  • Page 15: Interface-Serial

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Interface – Serial - 2 PARA- METERS SERIAL DATA BITS - 8 SERIAL DATA BITS - 6 Pro CMD：0103030 Pro CMD：0103010 SERIAL DATA BITS - 7 SERIAL DATA BITS - 5 Pro CMD：0103020 Pro CMD：0103000 SERIAL STOP BITS - 1...

  • Page 16: Symbologies On/Off

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 1D Symbologies On/Off - 1 CODE 39 CODE 39 ENABLE CODE 39 DISABLE Pro CMD：0408020 Pro CMD：0408010 CODE 93 CODE 93 - ENABLE CODE 93 - DISABLE Pro CMD：0410020 Pro CMD：0410010 CODE 128 CODE 128 - DISABLE...
  • Page 17 Pro CMD：0405020 Pro CMD：0405010 China post 2 5 CHINA POST 25 - ENABLE CHINA POST 25 - DISABLE Pro CMD：0406020 Pro CMD：0406010...

  • Page 18: D Symbologies On/Off

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 1D Symbologies On/Off – 2 UPC/EAN UPC-A DISABLE UPC-A ENABLE Pro CMD：0404020 Pro CMD：0404010 UPC-E DISABLE UPC-E ENABLE Pro CMD：0403020 Pro CMD：0403010 EAN-8 ENABLE EAN-8 DISABLE Pro CMD：0401020 Pro CMD：0401010 EAN-13 ENABLE EAN-13 DISABLE...
  • Page 19 ** Code Programming ON ** Code Programming OFF 【 【 【 【 Pro CMD： ： ： ： 0006010】 】 】 】 【 【 【 【 Pro CMD： ： ： ： 0006000】 】 】 】 2D Symbologies On/Off - 1 Data Matrix Data Matrix -ENABLE Data Matrix -DISABLE Pro CMD：0504020...

  • Page 20: Symbologies Set Up

    Pro CMD：0503020 Pro CMD：0503010 PDF 417 PDF 417ENABLE PDF 417 DISABLE Pro CMD：0501020 Pro CMD：0501010 **Forward Direction Barcode Only Both Pro CMD:0501320 Pro CMD:0501322 Backward Direction Barcode Only Pro CMD:0501321 Symbologies Set Up - 1 CODE 128 CHECK DIGIT CODE 128 CHECK DIGIT –ENABLE CODE 128 CHECK DIGIT -DISABLE Pro CMD：0400150 Pro CMD：0400160...

  • Page 21: Check Byte

    UCC/EAN -13 CHECK BYTE TRANSMIT UCC/EAN-13 TRANSMIT UCC/EAN-13 CHECK –ENABLE CHECK –DISABLE Pro CMD：0402040 Pro CMD：0402030 UPC-E CHECK BYTE TRANSMIT UPC-E TRANSMIT UPC-E CHECK –ENABLE CHECK –DISABLE Pro CMD：0403040 Pro CMD：0403030 UPC-A CHECK BYTE TRANSMIT UPC-A TRANSMIT UPC-A CHECK –ENABLE CHECK –DISABLE Pro CMD：0404040 Pro CMD：0404030...
  • Page 22 Pro CMD：0406050 Pro CMD：0406060 Check, Transmit All Pro CMD：0406070 CODE 39 Check, Transmit No Check NO Check, Transmit All CHECK BYTE Pro CMD：0408050 Pro CMD：0408060 Check, Transmit All Pro CMD：0408070 ** Code Programming ON ** Code Programming OFF 【 【 【 【 Pro CMD： ： ： ： 0006010】 】 】 】 【...
  • Page 23 CODE 93 Check, Transmit No Check NO Check, Transmit All CHECK BYTE Pro CMD：0410050 Pro CMD：0410060 Check, Transmit All Pro CMD：0409070...
  • Page 24 ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Symbologies Set Up – 2 UPC/EAN EXPAND UPC-E TO UPC-A ENABLE EXPAND UPC-E TO UPC-A DISABLE FORMATING Pro CMD：0401100 Pro CMD：0401090 Expand to UPC-A ENABLE Expand to UPC-A DISABLE Pro CMD：0403120 Pro CMD：0403110 UCC/EAN-8...
  • Page 25 Pro CMD：0402080 Pro CMD：0402070...
  • Page 26 ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 Symbologies Set Up – 3 UPC-E 2 Digits Addenda ENABLE 2 Digits Addenda DISABLE Addenda Code 0403060 Pro CMD： Pro CMD：0403050 5 Digits Addenda ENABLE 5 Digits Addenda DISABLE Pro CMD：0403080 Pro CMD：0403070 UPC-A...

  • Page 27: Termination String Setup Bar Codes

    ** Code Programming ON ** Code Programming OFF 【Pro CMD：0006010】 【Pro CMD：0006000】 TERMINATION STRING SETUP BAR CODES STRING# 1 Step 1 TERMINATION Step 2 CHAR - CR Pro CMD：0310000 Pro CMD：0309010 Step3 Pro CMD：0000160 STRING# 1 TERMINATION CHAR - LF Step 1 Step 2 Pro CMD：0310000...
  • Page 28 Pro CMD：0000160...
  • Page 29 Version: 1.0 Date: MAY 27, 2009 P/N: 79.60301.011...
