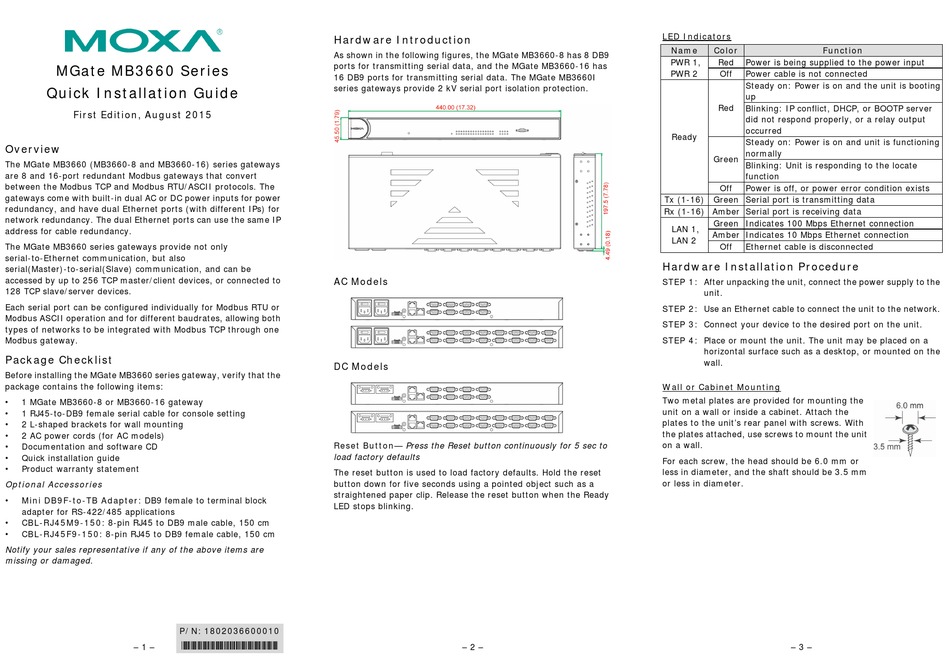

MGate MB3660 Series

Quick Installation Guide

First Edition, August 2015
Overview

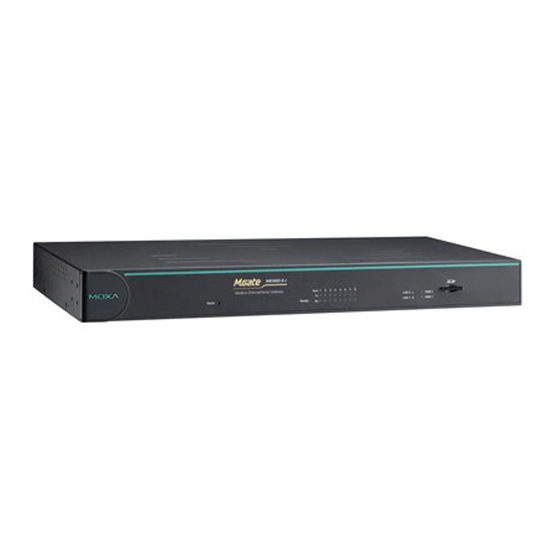

The MGate MB3660 (MB3660-8 and MB3660-16) series gateways
are 8 and 16-port redundant Modbus gateways that convert
between the Modbus TCP and Modbus RTU/ASCII protocols. The
gateways come with built-in dual AC or DC power inputs for power
redundancy, and have dual Ethernet ports (with different IPs) for
network redundancy. The dual Ethernet ports can use the same IP
address for cable redundancy.
The MGate MB3660 series gateways provide not only
serial-to-Ethernet communication, but also
serial(Master)-to-serial(Slave) communication, and can be
accessed by up to 256 TCP master/client devices, or connected to
128 TCP slave/server devices.
Each serial port can be configured individually for Modbus RTU or
Modbus ASCII operation and for different baudrates, allowing both
types of networks to be integrated with Modbus TCP through one
Modbus gateway.

Package Checklist

Before installing the MGate MB3660 series gateway, verify that the
package contains the following items:
• 1 MGate MB3660-8 or MB3660-16 gateway
• 1 RJ45-to-DB9 female serial cable for console setting
• 2 L-shaped brackets for wall mounting
• 2 AC power cords (for AC models)
• Documentation and software CD
• Quick installation guide
• Product warranty statement
Optional Accessories
• Mini DB9F-to-TB Adapter: DB9 female to terminal block
adapter for RS-422/485 applications
• CBL-RJ45M9-150: 8-pin RJ45 to DB9 male cable, 150 cm
CBL-RJ45F9-150: 8-pin RJ45 to DB9 female cable, 150 cm
•
Notify your sales representative if any of the above items are
missing or damaged.
P/N: 1802036600010
– 1 – *1802036600010*

Hardware Introduction

As shown in the following figures, the MGate MB3660-8 has 8 DB9
ports for transmitting serial data, and the MGate MB3660-16 has
16 DB9 ports for transmitting serial data. The MGate MB3660I
series gateways provide 2 kV serial port isolation protection.
AC Models
DC Models
Reset Button— Press the Reset button continuously for 5 sec to
load factory defaults
The reset button is used to load factory defaults. Hold the reset
button down for five seconds using a pointed object such as a
straightened paper clip. Release the reset button when the Ready
LED stops blinking.
– 2 –
LED Indicators
Name Color Function
PWR 1, Red Power is being supplied to the power input
PWR 2 Off Power cable is not connected
Steady on: Power is on and the unit is booting
up
Red
Blinking: IP conflict, DHCP, or BOOTP server
did not respond properly, or a relay output
occurred
Ready
Steady on: Power is on and unit is functioning
normally
Green
Blinking: Unit is responding to the locate
function
Off Power is off, or power error condition exists
Tx (1-16) Green Serial port is transmitting data
Rx (1-16) Amber Serial port is receiving data
Green Indicates 100 Mbps Ethernet connection
LAN 1,
Amber Indicates 10 Mbps Ethernet connection
LAN 2
Off Ethernet cable is disconnected
Hardware Installation Procedure
STEP 1: After unpacking the unit, connect the power supply to the
unit.
STEP 2: Use an Ethernet cable to connect the unit to the network.
STEP 3: Connect your device to the desired port on the unit.
STEP 4: Place or mount the unit. The unit may be placed on a
horizontal surface such as a desktop, or mounted on the
wall.
Wall or Cabinet Mounting
Two metal plates are provided for mounting the
unit on a wall or inside a cabinet. Attach the
plates to the unit's rear panel with screws. With
the plates attached, use screws to mount the unit
on a wall.
For each screw, the head should be 6.0 mm or
less in diameter, and the shaft should be 3.5 mm
or less in diameter.
