Image Processing System
Installation Instruction Manual for FZ5 series
© OMRON Corporation 2017 All Rights Reserved
Precautions for Compliance with UL Standards and CSA Standards
Notice to Users of the FZ5 series in the USA and Canada
Please observe the following installation information in addition to the general information
in the instruction manuals when installing the product in the USA or Canada in order to use
the product under UL and CSA-certified conditions. These conditions are required by NFPA
70, National Electrical Code in the USA and the Canadian Electrical Code, Part I in Canada
and may different from information given in the product manuals and safety precautions.
This manual must be consulted in all cases in order to understand the risk of potential
HAZARDS and the actions which must be taken to avoid them.
If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Wiring for Power Input
・ Use SELV Power Source.
・ Do not use ferrule terminals for field wiring.
・ Tightening torque of the terminals : 12.4 Lb In. (1.4Nm)
・ Wire range : AWG 16 to 13
Environment
・ Pollution degree 2;
・ Installation category I;
・ Maximum altitude of 2000m;
・ Humidity, 35-85%RH (non-condensing);
・ Power supply voltage, 24VDC (20.4 to 26.4V DC);
・ Indoor use;
・ Operating Temperature, 0 to 50 ℃ ;
・ Protection, IP20;

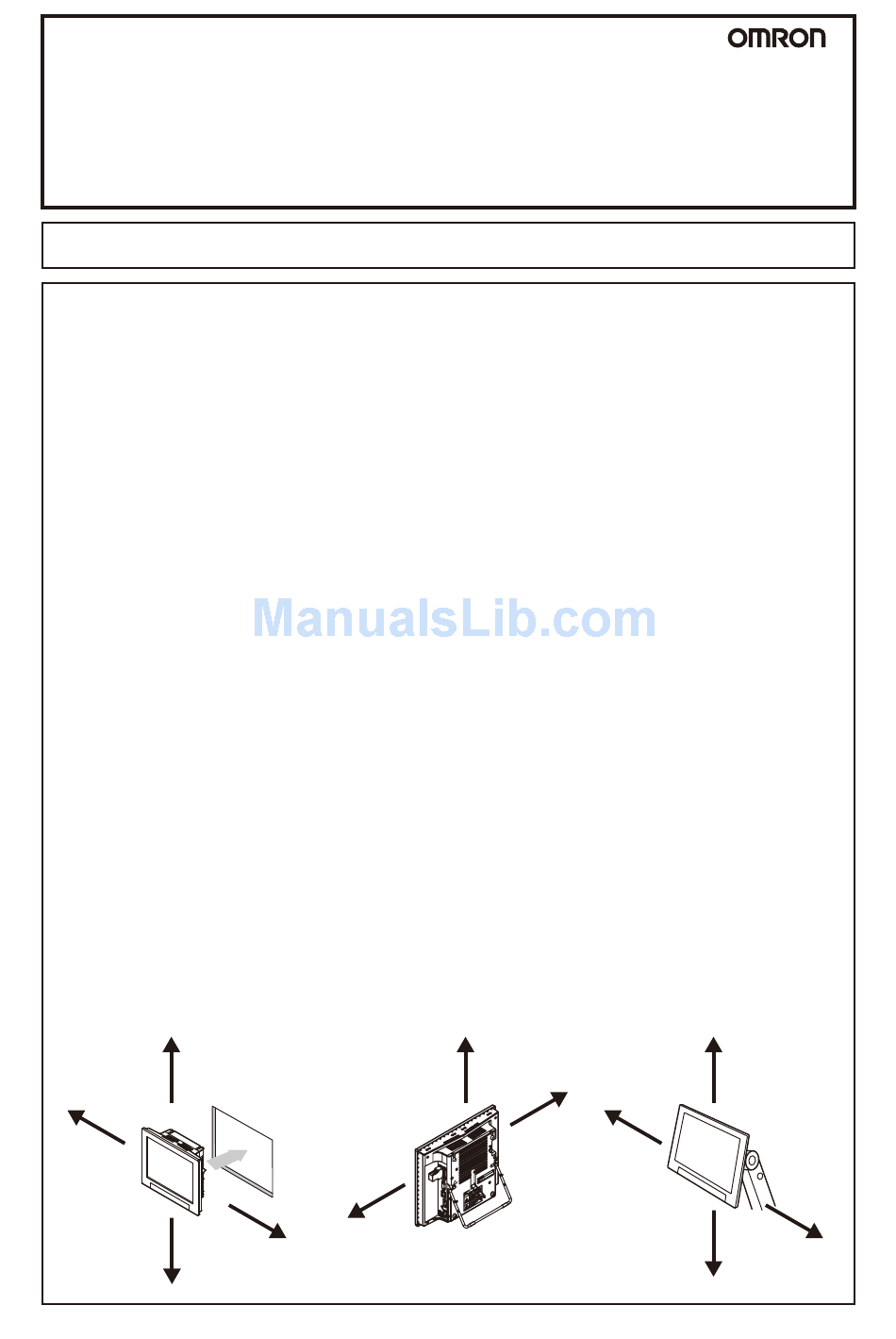

Mounting
Maintain a minimum clearance of 50 mm above and below the Sensor Controller to improve
air circulation. A minimum clearance of 10 mm between other devices must also be
maintained on the right and left sides of the product. However, if the adjacent devices do not
generate heat, provide at least 50 mm of clearance from the top of the Sensor Controller. For
the clearance at the bottom and sides, follow the mounting method.
Panel mounting
50mm clearance
10mm
clearance
50mm clearance
10mm
clearance
Desktop stand
50mm clearance
10mm
clearance
VESA mounting
50mm clearance
10mm
clearance
10mm
clearance
50mm clearance
9307999-4A
10mm
clearance
