FireClass FC410SIO Installation Manual

TECHNICAL SPECIFICATION
Type Identification Value: 148
System Compatibility:
Environment:
Operating Temperature: -25 to +70
Storage Temperature:
Operating Humidity:
Dimensions (HxWxD):
Mounting Requirements: Dual-gang electrical box
Recommended Wire Size: Min. 1.5 mm
Battery Requirements
Standby current:
Alarm current:
Addressable Device
Conditions:
Input Circuit
EOL
Alarm resistor
Electromagnetic Compatibility
The FC410SIO complies with the following:
Ø product family standard EN50130-4 in respect of Conducted
Disturbances, Radiated Immunity, Electrostatic Discharge,
Fast Transients and Slow High Energy;
Ø EN61000-6-3 for emissions.
INTRODUCTION

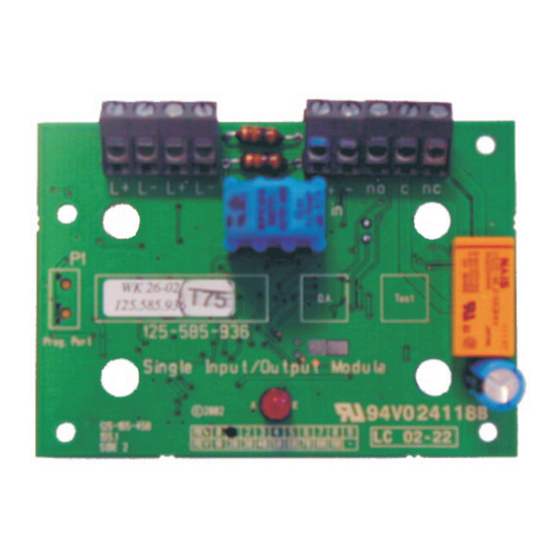

The FC410SIO Single Input/Output Module is designed to provide
a monitored open collector input and a volt free relay changeover
output.
FEATURES
Ø FC410SIO can switch up to 2 A @ 24 Vdc
WIRING & INSTALLATION NOTES
The following notes apply:
1) There are no user-required settings (such as switches or head-
ers) on the FC410SIO.
2) All wiring must conform to the applicable standards.
3) All conductors to be free of earths.
4) Verify the correct polarity of wiring before connecting the
FC410SIO to the addressable loop circuit.
5) For FC410SIO typical wiring configuration see Fig. 4.
Use only with FC Fire Alarm Controllers
Indoor Application only
o
C
o
-40 to +80 C
Up to 95% non-condensing
85 x 60 x 15 mm
2 Max. 2.5 mm
0.3 mA
3.0 mA
– Normal
– Active
– Short Circuit wiring fault
– Open Circuit wiring fault
– Device Type Invalid
– Device No Response
3K3
680 W
ENGLISH
INSTALLATION TO FC470CV ANCILLARY COVER
1) Assemble the FC410SIO to FC470CV ancillary cover, using
the four screw and washers provided.
2) Fit cover onto dual-gang backbox.
ADDRESS SETTINGS
The FC410SIO has a default factory set address of 255, this must
be set to the loop address of the device using the FC490ST Loop
Service Tool. The FC410SIO may be programmed with the ad-
2
dress prior to being installed by using the internal programming
port (see Fig. 2) or after being installed by using the programming
port on the front cover (see Fig. 3).
+ Note: once the address has been programmed, take note of
the device location and address number, to include on site
drawings.
+ Note: this device use one address only on the loop.
CABLING
Cables are to be selected in accordance with the system design
document and the requirements of the applicable standards.The
maximum section of the cable that can be connected at any one
terminal is 2.5mm
teristics of the cable and the load.
ORDERING INFORMATION
FC410SIO: Single Input / Output Module
FC470CV: Ancillary Cover
RECYCLING INFORMATION
Customers are recommended to dispose of their used equipments
(panels, detectors, sirens, and other devices) in an environmen-
tally sound manner. Potential methods include reuse of parts or
whole products and recycling of products, components, and/or
materials.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE) DIRECTIVE
The manufacturer reserves the right to change the technical speci-
fications of this product without prior notice.
2 . The section is calculated based on the charac-
In the European Union, this label indicates that this
product should NOT be disposed of with household
waste. It should be deposited at an appropriate facility
to enable recovery and recycling.
