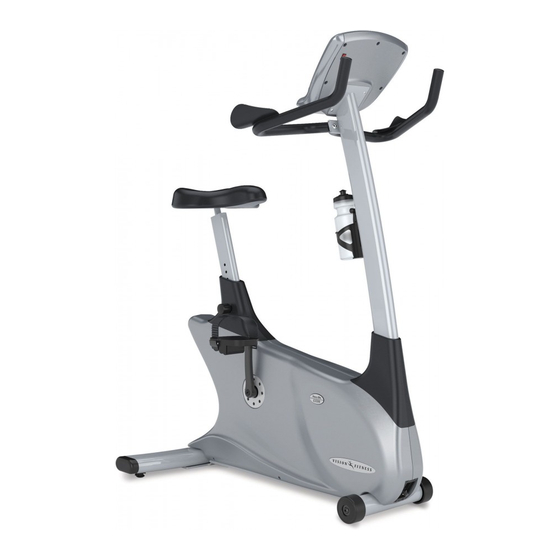

Vision Fitness E3200 Assembly Manual

Upright fitness cycles
Hide thumbs Also See for E3200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
A s s e m b l y
G u i d e
E3200
AND
E3200HRT
UPRIGHT FITNESS CYCLES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vision Fitness E3200

Summary of Contents for Vision Fitness E3200

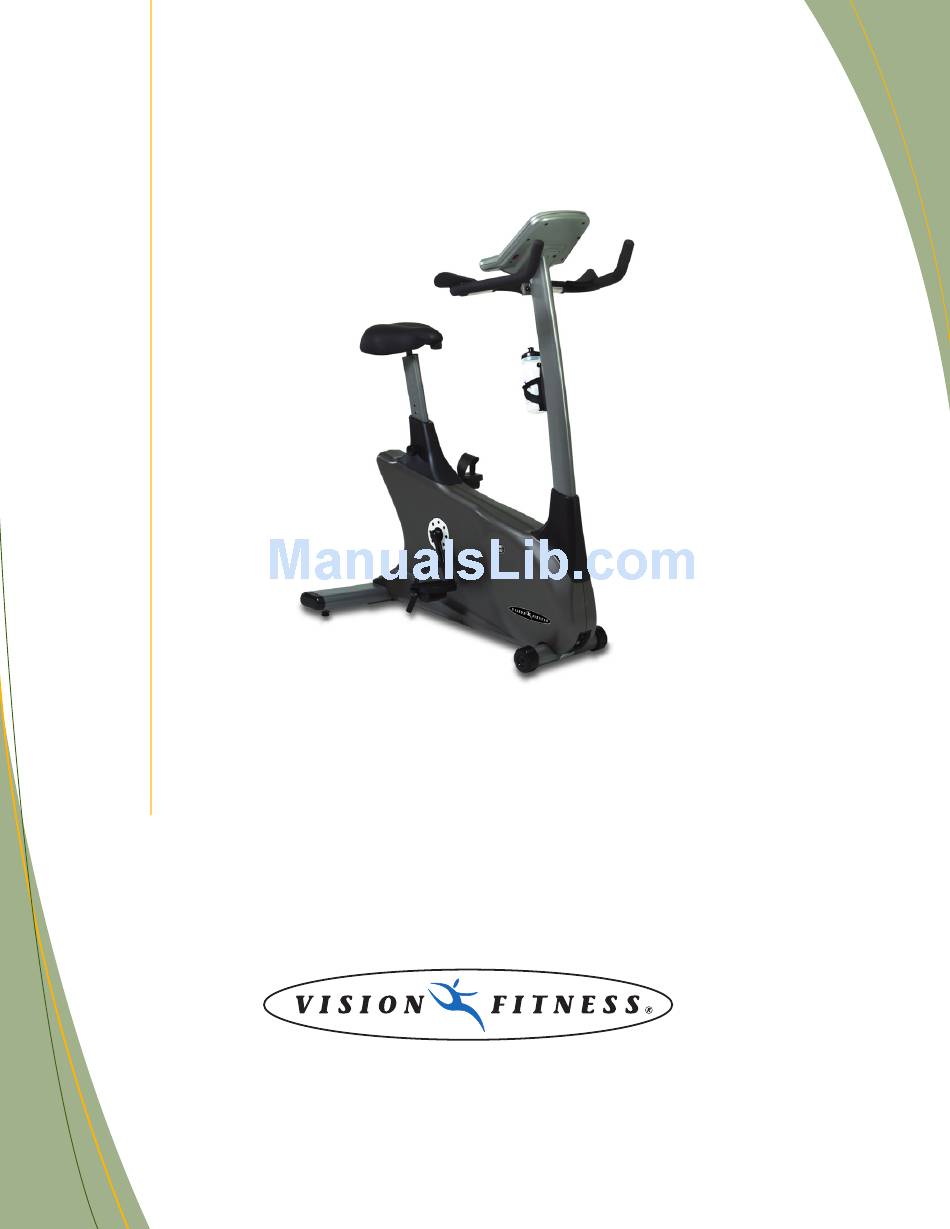

  • Page 1 A s s e m b l y G u i d e E3200 E3200HRT UPRIGHT FITNESS CYCLES...
  • Page 2 A s s e m b l y G u i d e E3200 AND E3200HRT UPRIGHT FITNESS CYCLES To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
  • Page 3 TOOLS & PARTS INCLUDED Allen Wrench Screwdriver Pedal Wrench Wrench PARTS BOX Water Bottle & Cage, Qty: 1 Heart Rate Chest Strap, Qty: 1 (E3200HRT only) Power Supply, Qty: 1 Pedals, Qty: 2 Seat Post Knob Owner’s Guide Assembly Guide Warranty Card Color-coded Hardware Bags L-Shaped Wrench...
  • Page 4 HARDWARE INCLUDED ORANGE BAG M8 Lock Washer M8 x 20L Screw Quantity: 4 Quantity: 2 M8 x 65L Screw Quantity: 2 PINK BAG M8 x 15L Screw Quantity: 7 M8 x 20L Screw Quantity: 2 M8 Lock Washer Quantity: 8...
  • Page 5 ORANGE BAG STEP • Slide the rear foot into place on the frame. Secure the foot in place with two screws (M8x20) and two lock washers (M8) to the outside holes and with two screws (M8x65) and two lock washers (M8) to the inside holes. Tighten with the blue-handled 5mm allen wrench.
  • Page 6 • Pull the wire tie up through the con- sole mast so the wire harness and heart E3200 rate wires exit the top of the mast. Only • Slide the bottom of the console mast into the frame bracket.
  • Page 7 SEAT STEP • Slide the seat post into the seat post bracket. • Screw the adjustment knob into place through the seat post cover. • Attach the seat to the seat post by sliding the bracket on the underside of the seat over the pin on the seat tube.
  • Page 8 Tighten with the 15mm pedal wrench. 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 6.04 Part #Z32CB37C-AG AG18.29PRD REV1...
