FingerTec FaceID 3 Quick Start Manual

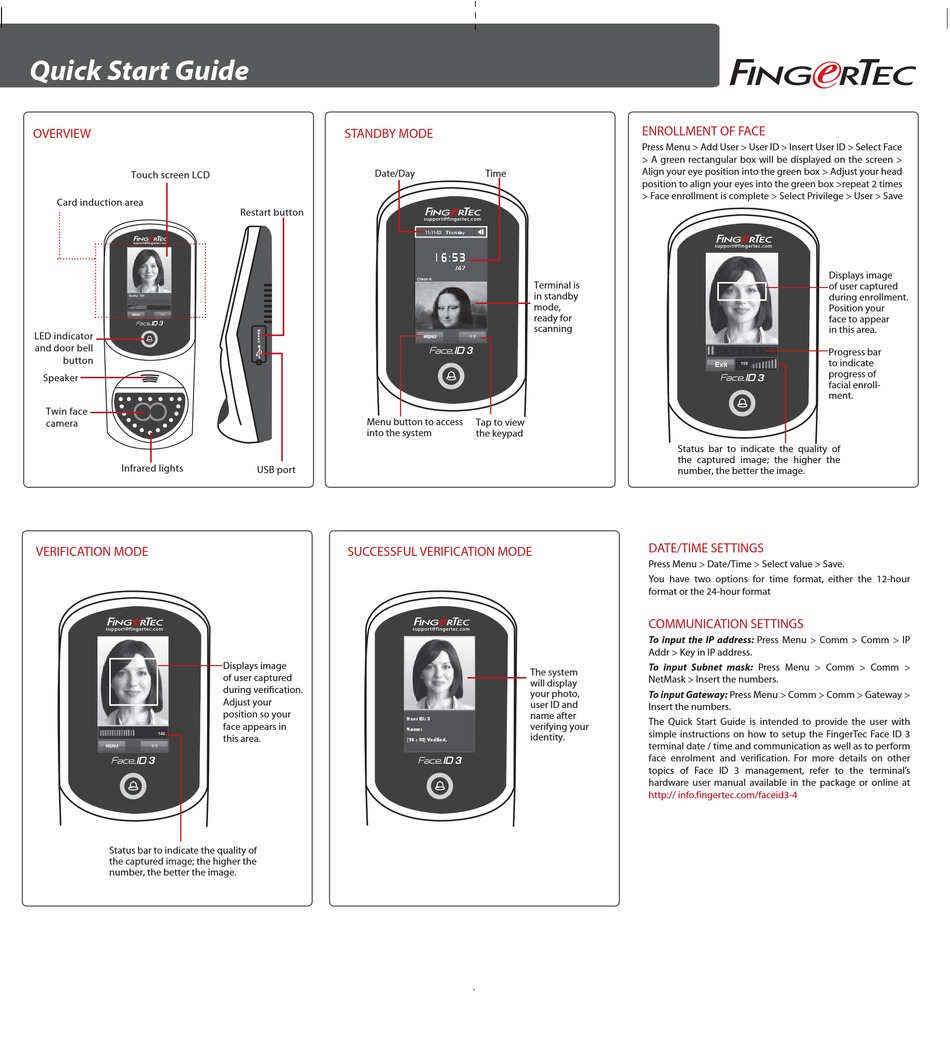

Quick Start Guide

OVERVIEW
Touch screen LCD
Card induction area
support@fingertec.com
3
LED indicator
and door bell
button
Speaker
Twin face
camera
Infrared lights
VERIFICATION MODE
support@fingertec.com
142
3
Status bar to indicate the quality of
the captured image; the higher the
number, the better the image.
STANDBY MODE
Date/Day
Restart button
Menu button to access
into the system
USB port
SUCCESSFUL VERIFICATION MODE
Displays image
of user captured
during verification.
Adjust your
position so your
face appears in
this area.
Time
support@fingertec.com
11-11-03 Thursday
1 6 : 5 3
/47
Check-In
Terminal is
in standby
mode,
ready for
scanning
3
Tap to view
the keypad
support@fingertec.com
The system
will display
your photo,
user ID and
name after
User ID: 3
verifying your
Name:
identity.
[16 : 55] Verified.
3
ENROLLMENT OF FACE
Press Menu > Add User > User ID > Insert User ID > Select Face
> A green rectangular box will be displayed on the screen >
Align your eye position into the green box > Adjust your head
position to align your eyes into the green box >repeat 2 times
> Face enrollment is complete > Select Privilege > User > Save
support@fingertec.com
Exit 159
3
Status bar to indicate the quality of
the captured image; the higher the
number, the better the image.
DATE/TIME SETTINGS
Press Menu > Date/Time > Select value > Save.
You have two options for time format, either the 12-hour
format or the 24-hour format
COMMUNICATION SETTINGS
To input the IP address: Press Menu > Comm > Comm > IP
Addr > Key in IP address.
To input Subnet mask: Press Menu > Comm > Comm >
NetMask > Insert the numbers.
To input Gateway: Press Menu > Comm > Comm > Gateway >
Insert the numbers.
The Quick Start Guide is intended to provide the user with
simple instructions on how to setup the FingerTec Face ID 3
terminal date / time and communication as well as to perform
face enrolment and verification. For more details on other
topics of Face ID 3 management, refer to the terminal's
hardware user manual available in the package or online at
http:// info.fingertec.com/faceid3-4
Displays image
of user captured
during enrollment.
Position your
face to appear
in this area.
Progress bar
to indicate
progress of
facial enroll-
ment.
