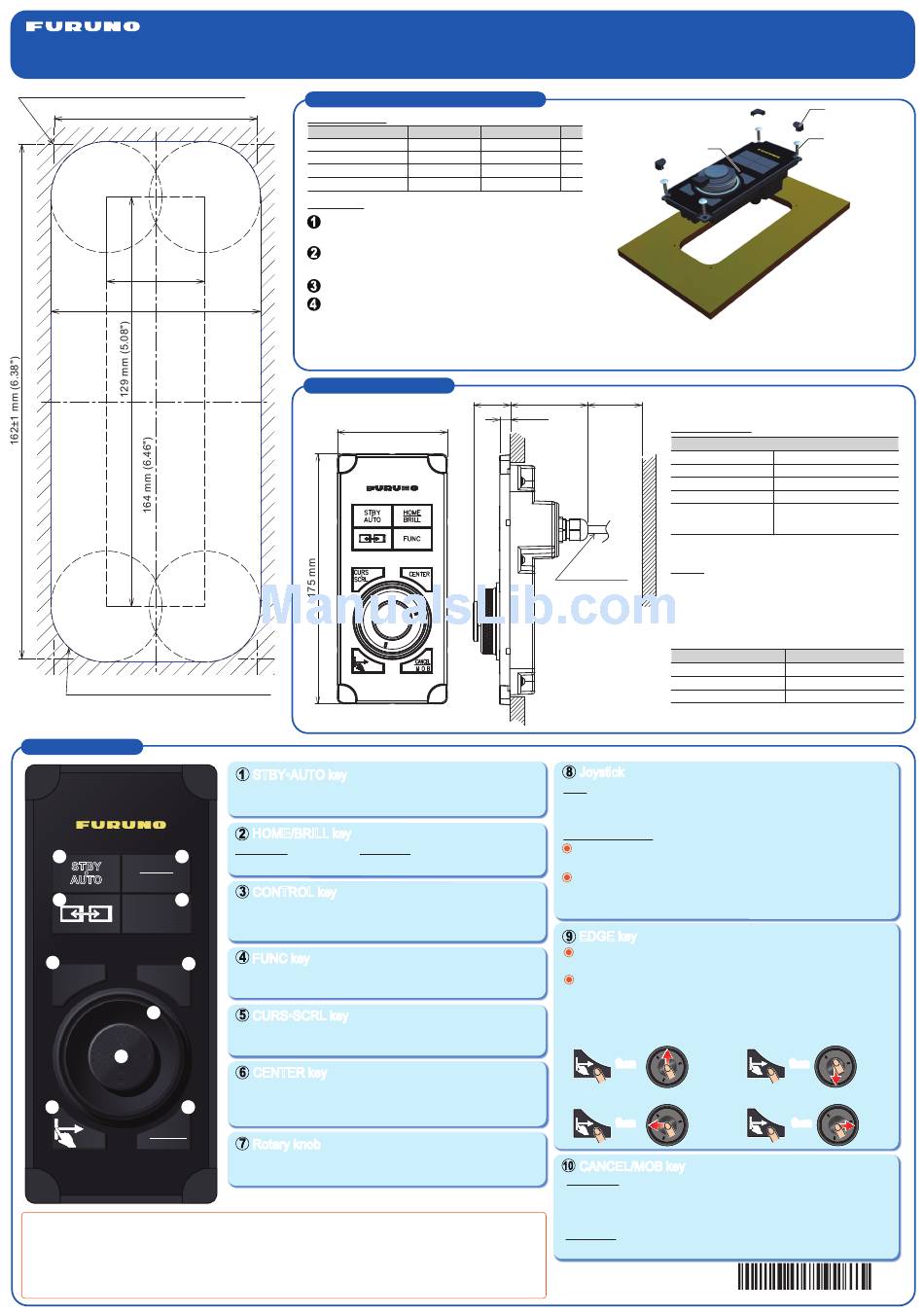

Furuno MCU-004 User Manual

REMOTE CONTROL UNIT
Drill hole for ø4×16 self-tapping screw (four places).
64±1 mm (2.50")
31 mm
(1.22")
66 mm
(2.60")
Drill hole of 35 mm in dia (four places).
Note: This template may have expanded or shrunk
slightly. Please confirm dimensions before use.
Control description
1 2
STBY HOME
•
AUTO
BRILL
3 4
FUNC
5
6
CURS
CENTER
•
SCRL
7
8
9
10
CANCEL
MOB
Tips and Notice Tips and Notice
• For TZT9/TZT14/TZTBB, the cross cursor is easier to use than the arrow cursor. To use the cross cursor, set [Cross
Cursor] to [ON] in the [General] menu.
• The MCU-004 is compatible with the FURUNO Multi Function Displays and software version combinations shown below.
TZT9, TZT14, and TZTBB: Version 5.01 or later (Planned release: Beginning of 2017)
TZTL12F and TZTL15F: Version 3.01 or later (Planned release: Middle of 2016)
User's Guide
Model
How to install the Remote Control Unit
Included items
Name
Remote Control Unit
Self-tapping Screw
Screw Cap
Hard Cover
Procedure
Using the mounting template on the left, cut a mounting
hole in the installation site.
Set the unit to the hole and secure the unit with four
self-tapping screws (ø4×16, supplied).
Attach four screw caps (supplied).
Connect the USB connector of the unit to the USB port of either
the NavNet TZtouch or TZtouch2.
Note 1: When using a USB hub to connect this device, keep in mind that the maximum power consumption for this
device is 270 mA.
Note 2: When you extend the USB cable by 5 m or more, a USB hub or USB repeater cable is required.
Outline and dimensions
77 mm
STBY•AUTO key
Switches the steering mode of the FURUNO NAVpilot-700
series Autopilot between the STBY and AUTO modes.
HOME/BRILL key
Short press: Long press:
· Opens the home screen. · Opens the Brilliance/Power window.
CONTROL key
Switches between displays that can be controlled with the
MCU-004 when multiple displays are installed in the same
network.
FUNC key
Activates the function set at [Function Gesture] in the [General]
menu.
CURS•SCRL key
Switches the function of the joystick between the Cursor and
Scroll modes.
CENTER key
· Returns your ship to the center of the screen (Plotter/
Weather/Radar display).
· Cancels the echo history (Fish finder display).
Rotary knob
· Selects an item from the menu and dialog box.
· Zooms in (+) and out (-).
MCU-004
Type Code No. Qty
- 1
MCU-004
4
4×16 SUS 304 000-162-605-10
19-032-3508-3 100-404-903-10 4
19-032-3509-3 100-404-913-10 1
26 mm 54 mm
7.5 mm
USB cable
(3 m)
Joystick
Push: Works same as the tap gesture.
· Opens the pop-up menu.
· Activates the selected item.
Operate the joystick:
in Cursor mode
· Moves the cursor.
in Scroll mode
· Pans the display (Plotter/Weather/Radar display).
· Shifts the range and scrolls back the picture (Fish finder display).
EDGE
TZT9/TZT14/TZTBB operation
Opens the RotoKey
TZTL12F/TZTL15F operation
Press the EDGE key and operate the joystick to activate the Edge
Swipe function: Quick page, Slide-out menu, [Layers] menu, and Data
area.
· Opens the [Layers] menu.
· Opens the Slide-out menu.
CANCEL/MOB
Short press:
· Moves to the previous page or layer in a menu.
· Closes the menu or dialog box.
· Ends the tool mode (End Route, End Move, etc.).
Long press:
· Enters the MOB mark at the own ship's position.
Pub. No. E42-01509-A2
(1611, REFU) MCU-004
The purpose of this guide is to provide the basic operation and
installation of the Remote Control Unit MCU-004.
All brand and product names are trademarks, registered
trademarks or service marks of their respective holders.
Remote control unit
#38 mm
Specifications
Remote Control Unit MCU-004
Ambient temperature -15 °C to +55 °C
Relative humidity
Degree of protection
Mass*
Power supply
*: Mass includes the hard cover and USB cable.
Notes
1. Table shown below indicates tolerance of
dimensions which are not specified.
2. "#" indicates minimum service clearance.
3. Use self-tapping screws (ø4×16, included)
to secure the unit.
DIMENSIONS (mm)
0 < L ≤ 50
50 < L ≤ 100
100 < L ≤ 500
key
menu.
TM
· Opens the Quick page.
then then
· Opens the Data area.
then then
key
Screw cap
(4 pcs)
Self-tapping
screw (4 pcs)
93 % or less at 40 °C
IP56 (front), IP22 (back)
0.4 kg ± 10 %
USB bus power (Consumption
current: Max. 270 mA)
TOLERANCE (mm)
±1.5
±2.5
±3
then then
then then
