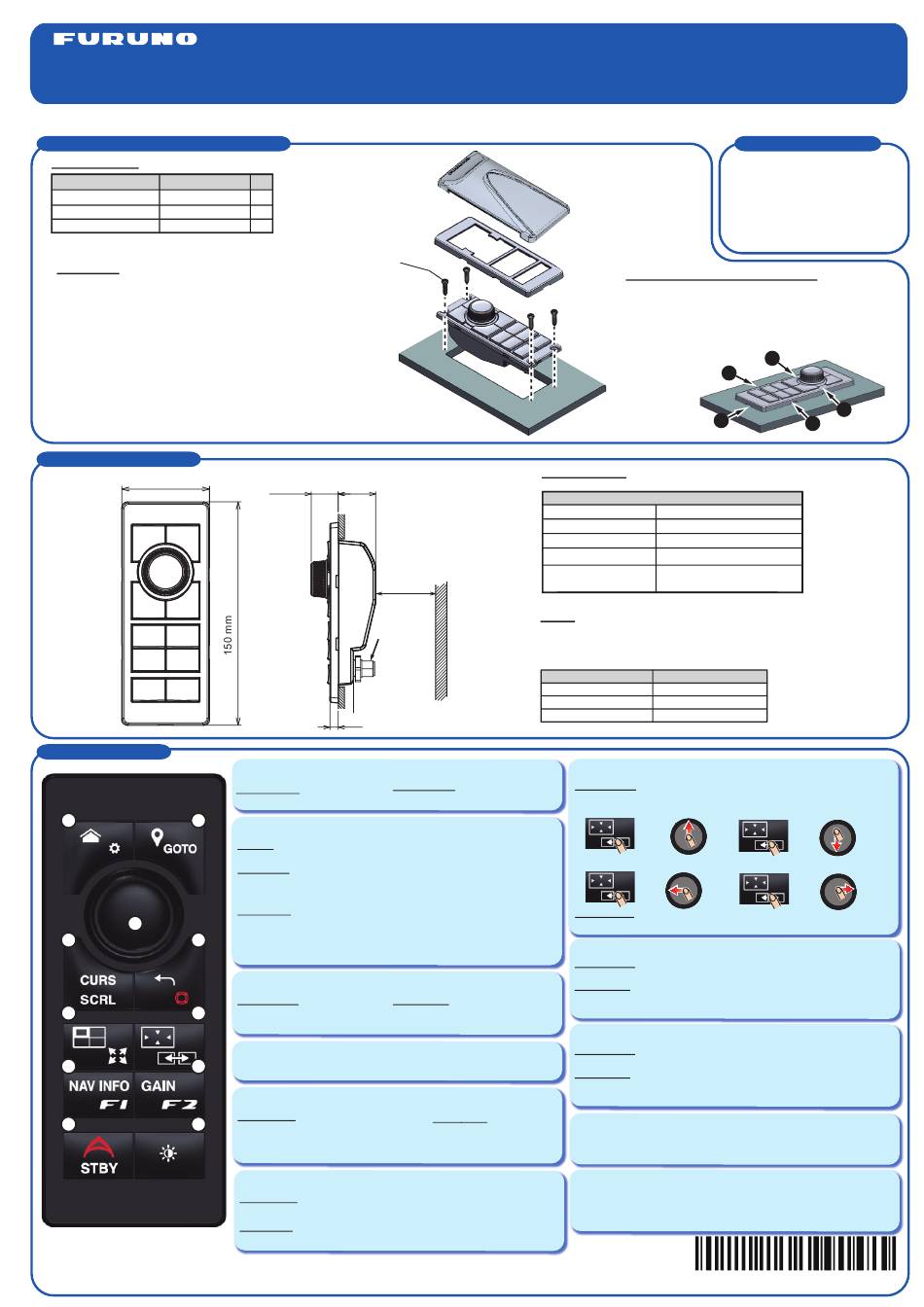

Furuno MCU-006 User Manual

REMOTE CONTROL UNIT
Note: For the sake of brevity, this guide only shows the MCU-006. For MCU-006H users, the dimensions are the same, however the indications on each
button are oriented horizontally and appear slightly different from the images shown here.
How to Install the Remote Control Unit
Included items
Name Type
Remote Control Unit MCU-006/006H
Installation Materials CP002-21001
Accessories FP002-21001
Procedure
1. Using the flush mounting template (supplied), cut a
mounting hole in the installation site.
2. Fit the flush mount sponge to the rear of the unit.
3. Connect the NMEA 2000 cable to the remote control
unit.
4. Set the unit into the hole and secure the unit with four
self-tapping screws (ø4×16, supplied).
5. Attach the panel cover.
6. Attach the sun cover.
7. Connect the NMEA 2000 connector to the same
network as the compatible MFD.
Outline and Dimensions
59 mm
Operational Overview
1 3
2
4 5
6 7
8 9
11
10
Pub. No. E42-02210-B
(2503, TEHI) MCU-006/006H
User's Guide
Model
Qty
1
1
1
Self-tapping
screw (4 pcs)
22.6 mm 31 mm
#65 mm
NMEA
2000
Connector
7 mm
1. HOME/SETTINGS key 1. HOME/SETTINGS key
Long push: :
Short push:
Opens the Settings screen.
Goes to the Home page.
2. Joystick/Rotokey™ 2. Joystick/Rotokey™
Push:
Confirms selection of item by cursor.
Joystick:
• Moves the cursor in the cursor mode.
• Scrolls the screen in the scroll mode.
Roto key:
• Selects items on menus.
• Zooms the display in, out.
• Increments, decrements numerical display.
3. Event/GOTO key 3. Event/GOTO key
Short press: Long press:
Creates an event mark Go to the cursor-selected point.
at the current position.
4. 4. CURS/SCROLL key CURS/SCROLL key
Switches between cursor shift, screen scroll.
5. 5. CANCEL/MOB key CANCEL/MOB key
Short push:
• Goes back one layer in the menu.
• Closes the menu, dialogue box.
• Ends tool mode.
6. 6. CTRL/Full Screen key CTRL/Full Screen key
Short push:
Switches active screen.
Long push:
Switches the active screen between full screen, divided screen.
MCU-006/006H
Sun cover
Panel Panel
cover cover
Remote Remote
control unit control unit
Mounting Mounting
hole hole
Specifications
Remote Control Unit MCU-006/006H
Ambient temperature -15 °C to +55 °C
Relative humidity
Degree of protection
Mass
*
Power supply
* : Mass does not include the sun cover.
Notes
1. The table shown below indicates tolerance of dimensions.
2. "#" indicates minimum service clearance.
3. Use self-tapping screws (ø4×16, included) to secure the unit.
DIMENSIONS (mm)
0 < L ≤ 50
50 < L ≤ 100
100 < L ≤ 500
7. 7. EDGE Swipe/Switch MFD to CONTROL key EDGE Swipe/Switch MFD to CONTROL
Short press:
Enables edge swipe operation with the joystick.
• Opens the Layers menu.
• Opens the Slide-out menu. • Opens the Data area.
Long press:
Switches the MFD to operate.
8. NAV INFO/F1 key 8. NAV INFO/F1
Short press:
Opens the NAV INFO window.
Long press:
Performs the function gesture assigned to the "two finger tap
function.".
9. GAIN/F2 key 9. GAIN/F2
Short press:
Enables gain setting with the Rotokey™.
Long press:
Performs the function gesture assigned to the "two finger
long tap function.".
Long push:
10. 10. AUTO/STBY key AUTO/STBY
Inscribes an MOB
Switches between AUTO and STBY mode for the
mark at current location.
connected FURUNO AutoPilot.
11. 11. Brill key Brill
Opens the [Quick Access] window.
Displays the brilliance adjustment window when
the [Quick Access] window is open.
This guide provides the basic operating and installation
procedures for this equipment. For detailed information,
see the Operator's Manual.
The brand, product names, trademarks, registered
trademarks, or service marks mentioned in this document
belong to their respective holders.
Compatible Equipment
• TZT9F • TZT12F • TZT16F
• TZT19F • TZT10X • TZT13X
• TZT16X • TZT22X • TZT24X
• TZTBBX
Note : TZT9F/12F/16F/19F are
supported by V3.56 or later.
How to Remove the Panel Cover
Insert a flat-head screwdriver into each of the
indicated slots, in numerical order. Twist the
screwdriver gently to release each of the sides.
Failure to release the sides in order may
damage the cover.
5
3
1
93% or less at 40 °C
IP56 (front), IP55 (back)
0.15 kg
NMEA 2000 (Consumption
current: Max. 100 mA; LEN: 2)
TOLERANCE (mm)
±1.5
±2.5
±3
• Opens the Quick page.
then then then then then then
then then then
then then then
key
key
key
key
00020031311
4
2
key
