4.23 Water Inlet Filter
Before starting refer to Section 1.1.
Isolate the boiler from the electrical supply, refer to Section 1.3.
Remove the outer case, refer to Section 1.4.
Isolate domestic water inlet, release the domestic water pressure
and drain, refer to Section 1.3 and 1.6.
Remove the control housing, refer to Section 4.7 paragraph 7.
Disconnect the two union nuts to gain access to the filter, see
diagram 4.14.
Clean or renew the filter as necessary.
Discard the sealing washer and use the new one supplied, on
assembly.
4.24 Domestic Hot Water Throttle
Before starting refer to Section 1.1
Isolate the boiler from the electrical supply, refer to Section 1.3.
Remove the outer case, refer to Section 1.4.
Isolate the domestic water inlet, release the domestic water
pressure and drain, refer to Section 1.3 and 1.6.
Remove the cap nut and carefully remove the throttle adjuster,
see diagram 4.17.
Clean if necessary, taking care not to damage the throttle body.
Discard the "O" ring and use the new ones supplied, when fitting
the throttle adjuster.
4.25 Mini Expansion Vessel
Before starting, refer to Section 1.1.
Isolate the boiler from the electrical supply, refer to Section 1.3.
THERMISTOR
(CENTRAL HEATING)
4 Replacement of Parts
THERMISTOR
(HOT WATER)
'O' RING
THERMISTOR
CONNECTORS

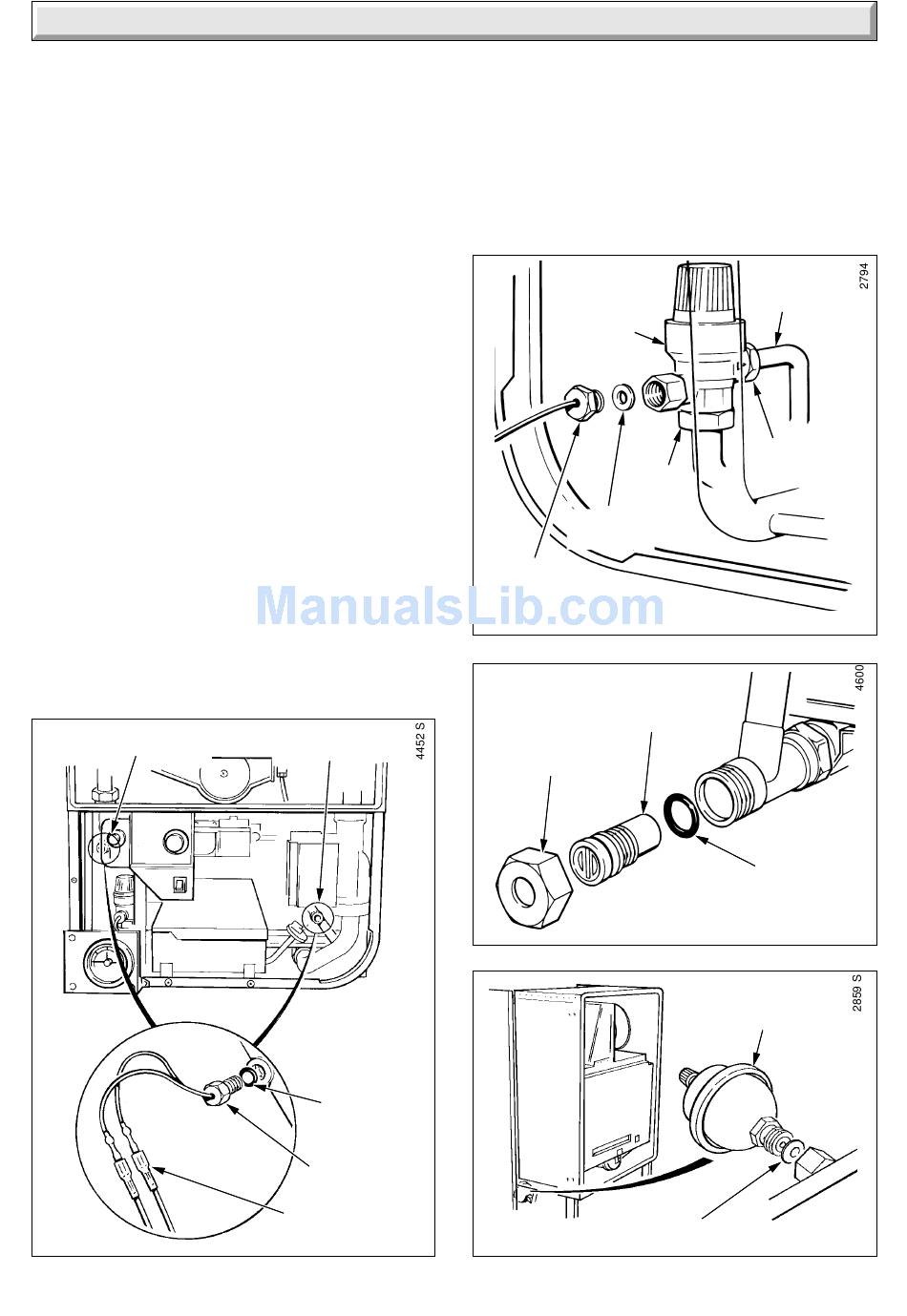

Diagram 4.15
51
Remove the outer case, refer to Section 1.4.
Isolate domestic water inlet, release the domestic water pressure
and drain, refer to Section 1.3 and 1.6.
Remove the control housing, refer to Section 4.7 paragraph 7.
Remove the mini expansion vessel, see diagram 4.18.
Discard the sealing washer and use the new one supplied,
when fitting.
SAFETY
VALVE
UNION
NUT
SEALING
WASHER
PRESSURE
GAUGE
CONNECTION
THROTTLE
ADJUSTER
CAP
NUT
SEALING
WASHER
DISCHARGE
PIPE
UNION NUT
Diagram 4.16
'O' RING
Diagram 4.17
MINI
EXPANSION
VESSEL
Diagram 4.18
221469B
