3HAC035738-001 Revision: E
Action
Secure it with its attachment screws (2
pcs) on front of the fieldbus adapter.
Reconnect the cable to the fieldbus ad-
apter.
Make sure the robot system is configured
to reflect the fieldbus adapter installed.
© Copyright 2009-2013 ABB. All rights reserved.

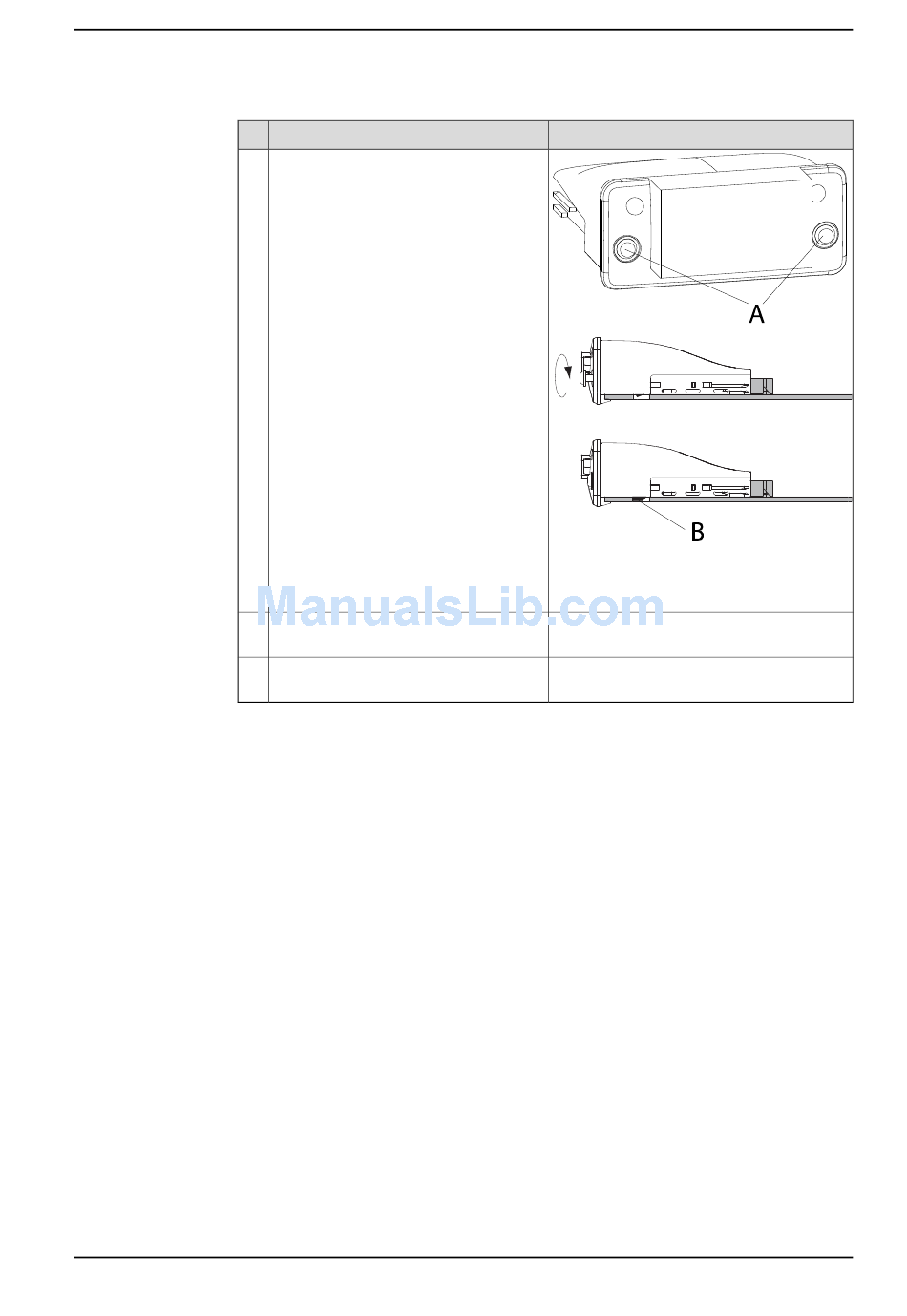

4.9 Replacement of fieldbus adapter
Note/Illustrator
xx0700000201
•
A: Attachment screws
•
B: Fastening mechanism
4 Repair
Continued
125
