3HAC035738-001 Revision: E
Action
Refit the attachment screws, and tighten
them.
Reconnect the connector X7 to the power
distribution board.
© Copyright 2009-2013 ABB. All rights reserved.
4.4 Replacement of backup energy bank
Note/illustration

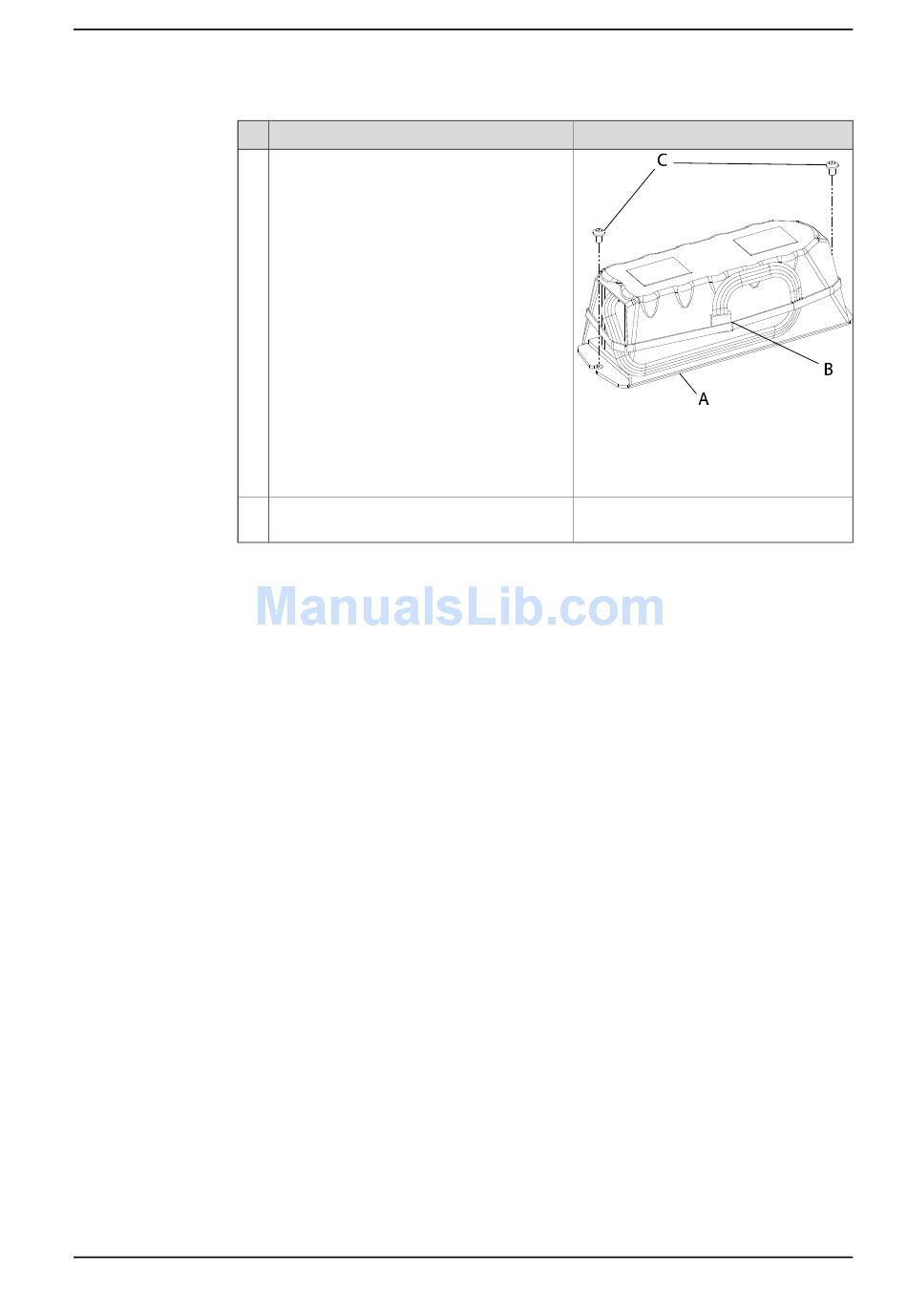

xx0900000547
•
A: Backup energy bank
•
B: connector
•
C: attachment screws
4 Repair
Continued
105
