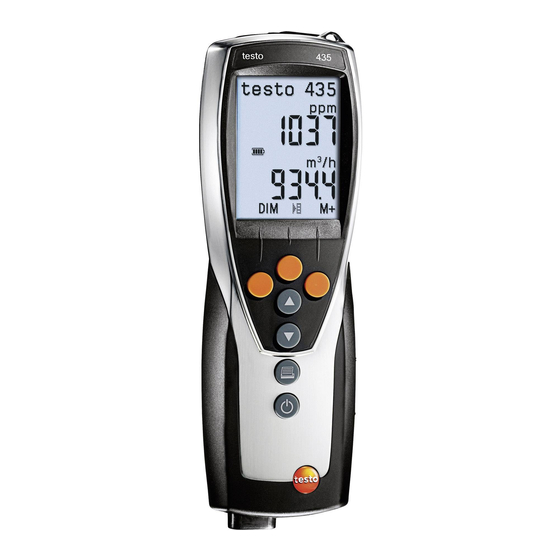

TESTO 435 Short Manual

TESTO 435 Short Manual

Multifunction measuring instrument
Hide thumbs Also See for 435:

Advertisement

Short manual
This short manual provides an overview of important functions of the product. Please be
sure to read the instuction manual before using the product!

Button functions

Button
Functions
Function button (3x): The function depends on the button assignment at the time
Change display of the 1st reading line
In configuration mode: Increase value (press and hold to increase rapidly), select option
Change display of the 2nd reading line
In configuration mode: Decrease value (press and hold to decrease rapidly), select option
Print data
435-1 / -2 only: If the Cyclical Printing function is activated, the programmed measuring program is started.
Switch instrument on, switch display light on/off;
switch instrument off (press and hold)

Function buttons (Function dependant on profile and setting)

Button
OK
ESC
/
Hold
ACT
Reset
Mean
Measp
/
Start
End
Save
Turb
Area
P=0
Functions
Open (main) menu
Enter confirmation
Cancel
Hold value/display current measurement value
Reset max./min. values to current measurement value
Open menu item "Multi-point mean calculation"
Open menu item "Measuring program" (435-2/-4 only) 435>
Start/end test series (435-2/-4 only)
Save values (435-2/-4 only)
Activate "Turb" test series (435-2/-4 only with attached turbulence probe)
Open menu item "Area"
Zero internal pressure sensor (435-3/-4 only)
Multifunction measuring instrument
testo 435
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 435 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TESTO 435

  • Page 1: Button Functions

    In configuration mode: Decrease value (press and hold to decrease rapidly), select option Print data 435-1 / -2 only: If the Cyclical Printing function is activated, the programmed measuring program is started. Switch instrument on, switch display light on/off; switch instrument off (press and hold)
  • Page 2 · No segments in the battery symbol are lit: Instrument battery is almost spent (flashing) Print function: Data are sent to the printer 435-3 / -4 only: Measurement channel differential pressure (internal sensor) Measurement channel no.: Channel 1, channel 2.
