Zaxcom RX12

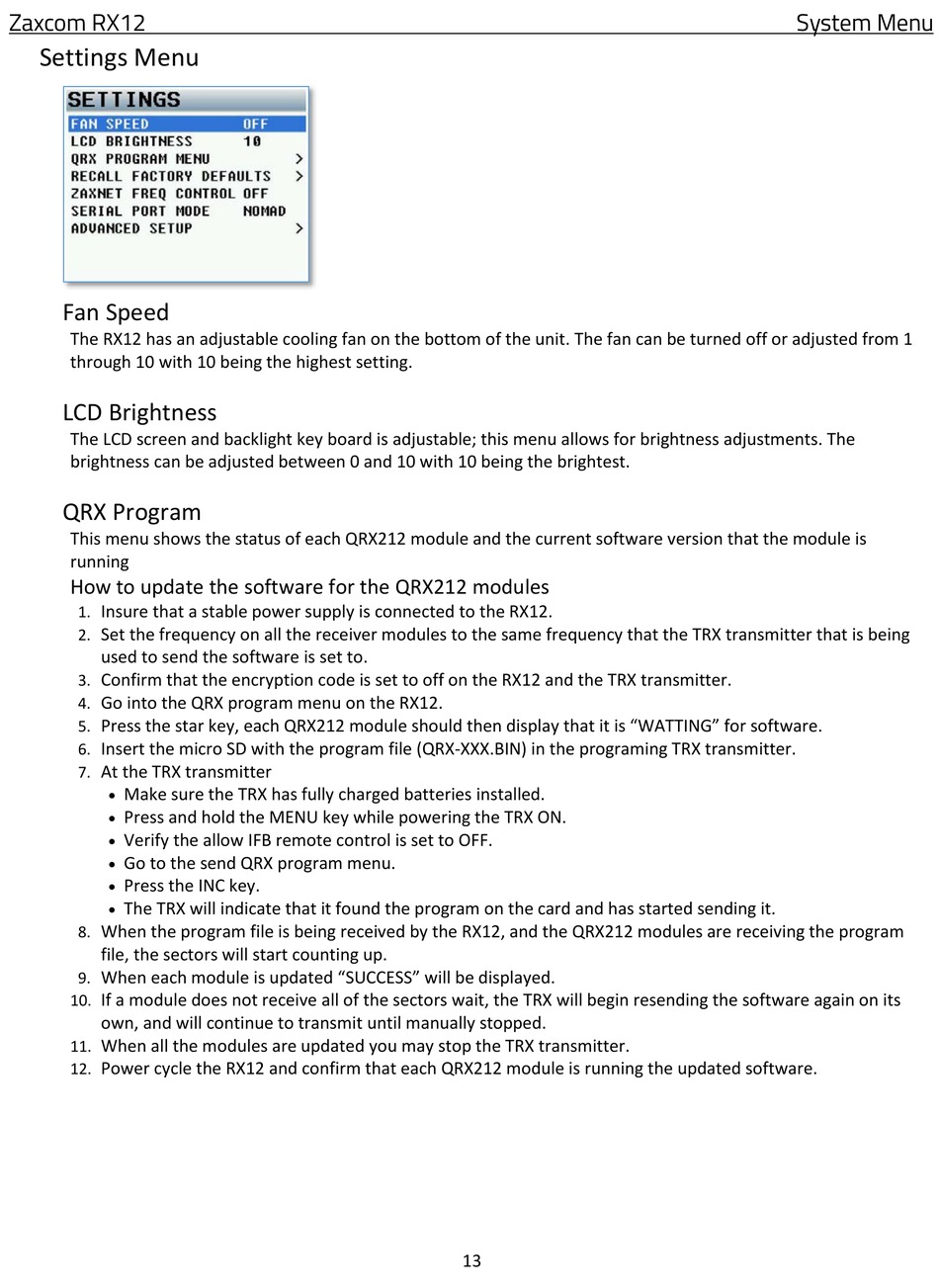

Settings Menu

Fan Speed

The RX12 has an adjustable cooling fan on the bottom of the unit. The fan can be turned off or adjusted from 1
through 10 with 10 being the highest setting.

LCD Brightness

The LCD screen and backlight key board is adjustable; this menu allows for brightness adjustments. The
brightness can be adjusted between 0 and 10 with 10 being the brightest.

QRX Program

This menu shows the status of each QRX212 module and the current software version that the module is
running

How to update the software for the QRX212 modules

Insure that a stable power supply is connected to the RX12.
1.
Set the frequency on all the receiver modules to the same frequency that the TRX transmitter that is being
2.
used to send the software is set to.
Confirm that the encryption code is set to off on the RX12 and the TRX transmitter.
3.
Go into the QRX program menu on the RX12.
4.
Press the star key, each QRX212 module should then display that it is "WATTING" for software.
5.
Insert the micro SD with the program file (QRX-XXX.BIN) in the programing TRX transmitter.
6.
At the TRX transmitter
7.

Make sure the TRX has fully charged batteries installed.

Press and hold the MENU key while powering the TRX ON.

Verify the allow IFB remote control is set to OFF.

Go to the send QRX program menu.

Press the INC key.

The TRX will indicate that it found the program on the card and has started sending it.
When the program file is being received by the RX12, and the QRX212 modules are receiving the program
8.
file, the sectors will start counting up.
When each module is updated "SUCCESS" will be displayed.
9.
If a module does not receive all of the sectors wait, the TRX will begin resending the software again on its
10.
own, and will continue to transmit until manually stopped.
When all the modules are updated you may stop the TRX transmitter.
11.
Power cycle the RX12 and confirm that each QRX212 module is running the updated software.
12.
13
