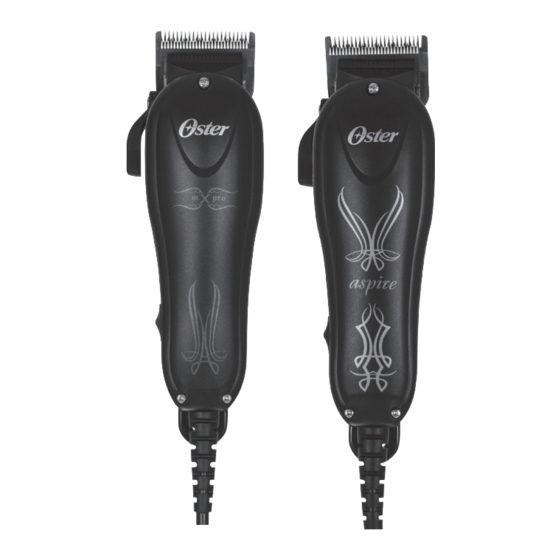

Oster 076070-010 User Manual

Adjustable Blade Clipper
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be
For Model Number: followed, including the following: Read all instructions before using the clipper.
DANGER
076070-010
076070-310
To reduce the risk of electric shock:
1. Do not reach for an appliance that has
fallen into water. Unplug immediately.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it
can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or
other liquid.
5. Always unplug this appliance from
electrical outlet immediately after using.
6. Unplug this appliance before cleaning,
putting on or taking off parts.
WARNING
To reduce the risk of burns, fire,
electric shock or injury to persons:
1. An appliance should never be left
unattended when it is plugged in.
2. Close supervision is necessary when
this appliance is used by, on, or near
children or invalids.
3. Use this appliance only for its intended
use as described in this manual. Do not
use attachments not recommended by
the manufacturer.
4. Never operate this appliance if it has
a damaged cord or plug, if it is not
working properly, if it has been dropped
or damaged, or submerged into water.
5. Keep the cord away from heated
surfaces.
6. The intended continuous operating time
is 20 minutes.
7. Never drop or insert any object into any
opening.
076070-010-061_-800_15EIM1.indd 1
SAVE THESE INSTRUCTIONS
Your complete kit includes the following:
Clipper 4 Comb Attachments:
8. Do not use outdoors or operate where
aerosol spray products are being used Cleaning Brush
# CUTS TO
or where oxygen is being administered.
Clipper Oil
1 1/8" (3mm)
9. Do not use this appliance with a
Blade Guard
damaged or broken blade, as cut or
2 1/4" (6mm)
scratched skin may occur.
3 3/8" (9mm)
10. To disconnect, move all controls to
4 1/2" (12mm)
"OFF", then remove plug from outlet.
11. During use, do not place or leave the
appliance where it is expected to be: * 07670-010: 1 set of additional blades included.
• subject to damage by animal, or
• exposed to weather.
12. Do not wrap cord around unit when OPERATING THE CLIPPER
storing. Continuous stress on the cord
can damage cord insulation and result in
a shock hazard. 1. Remove the plastic blade guard covering the teeth of the blades.
13. Avoid contact with moving blades.
2. Disperse a few drops of clipper oil across the blades. Wipe off
14. Avoid tangling or kinking the cord while
excess oil with a clean, dry cloth.
clipping or trimming. Should the cord
become tangled or kinked, stop clipping
NOTE: Oil the blade frequently during use to help the blades stay
or trimming and straighten the cord.
sharp longer.
15. This appliance is for clipping and
trimming purposes only.
DO NOT IMMERSE THE CLIPPER INTO ANY LUBRICANT.
16. Keep the appliance dry.
17. This appliance is not intended for use
3. Plug the clipper into electrical outlet.
by persons (including children) with
reduced physical, sensory or mental 4. Push the on-off switch to turn the clipper to "ON" position.
capabilities, or lack of experience and
5. When finished clipping, turn the clipper off and unplug from the
knowledge, unless they have been given
supervision or instruction concerning electrical outlet.
use of the appliance by a person
6. Clean hair clippings from the blades using clipper or brush or an old
responsible for their safety. Children
should be supervised to ensure that they toothbrush. Wipe the housing with a clean, dry cloth.
do not play with the appliance.
-E2- -E3-
ADJUSTMENTS FOR DIFFERENT CUTTING LENGTHS Blade Oiling:
Carefully slide upper blade left or right far enough to place ONE
Blade Adjustment:
drop of oil on each running rail of the lower blade. Excess oiling
Move thumb adjustment lever to raise or
will cause hair to stick between teeth, slowing or jamming blades.
lower bottom blade. Raise blade for fine
Turn on clipper and spray Oster
setting to cut hair very short for neck areas,
Fine teeth while clipper is running.
etc. lower blade for coarse setting to leave
hair longer for sideburns, etc. attachments
Blade Realignment:
may also be used with adjustable clippers.
Coarse After continued use, the clipper may
Follow regular attachments instructions
start to clatter or the blade sweep may
Figure 1
(Figure 1).
decrease. To adjust the clipper back to its
optimal performance, turn the calibration
ATTACHING GUIDE COMBS:
screw in (clockwise) (Figure 2) until the
armature and field begin to make contact
To Attach: Get front edge of blade started in comb track. Press palm
(clatter). Back the screw out (counter
of hand against blade guard and push comb onto blade. If there is
clockwise) approximately ¼ turn
resistance, place drop of oil on inner side of comb. If blade guard is
(Figure 3).
not available, use precaution when pressing hand against comb.
STORAGE
BLADE MAINTENANCE
Before replacing the blade guard for
To maintain longer clipper blade life, we recommend periodic cleaning clipper storage, spread one or two drops of oil over the blade to
and oiling, using Oster Blade Wash cleaning solution (catalog prevent the blade from rusting. Replace the blade guard. Coil the
TM
no. 76300-103) and 5 weight oil Blade Lube lubricant (Catalog No. electric cord and secure with paper (not metal) twist fastener. Store
Screw
Screw
76300-106). We also recommend the use of Oster Kool-Lube lubricant Plate clipper in its original carton in a dry location.
Holes
(Catalog No. 76300- 101) during extended usage.
Blade Cleaning:
INFORMATION • DO NOT DESTROY • READ CAREFULLY
Position the blade in a flat dish filled with just enough Blade Wash
Top Blade
The foundation of our business has been built upon the principle of
Screw Holes Bottom Blade
to cover only the blade. Turn on clipper and listen for change in
service to the user, both in designing superior products and in keeping
the hum of the motor. As the build-up is removed, the clean blade
them in condition to give long-lasting use. That is why we back up our
runs faster and higher pitch. When the pitch stabilizes (30 to 60
reputation for manufacturing top-quality products by providing the finest
seconds), turn off clipper and unplug. Use a lint-free cloth to wipe
service facilities possible for adjustment and repairs, when necessary.
blade as dry as possible. Oil blades.
Please retain the original packaging materials and carton, if possible, to
facilitate the packaging of the product if service is required. Contact the
phone number listed on the last page for warranty service.
-E4-
TM Kool-Lube lubricant through blade
Figure 2
Figure 3
© 2015 Sunbeam Products, Inc. doing business as Jarden Consumer
Solutions. All rights reserved. Distributed by Jarden Consumer
Solutions (Asia) Limited, 40/F Manhattan Place, 23 Wang Tai Road,
Kowloon Bay, Hong Kong. One Year Limited Warranty – contact
phone number listed on the last page for details. Sunbeam Products,
Inc. and Jarden Consumer Solutions (Asia) Limited are subsidiaries of
Jarden Corporation (NYSE: JAH).
SERVICE INFORMATION
How and Where to Get Service
Printed in China.
076070-010/-310-061_-800_15EIM1
-E5-
