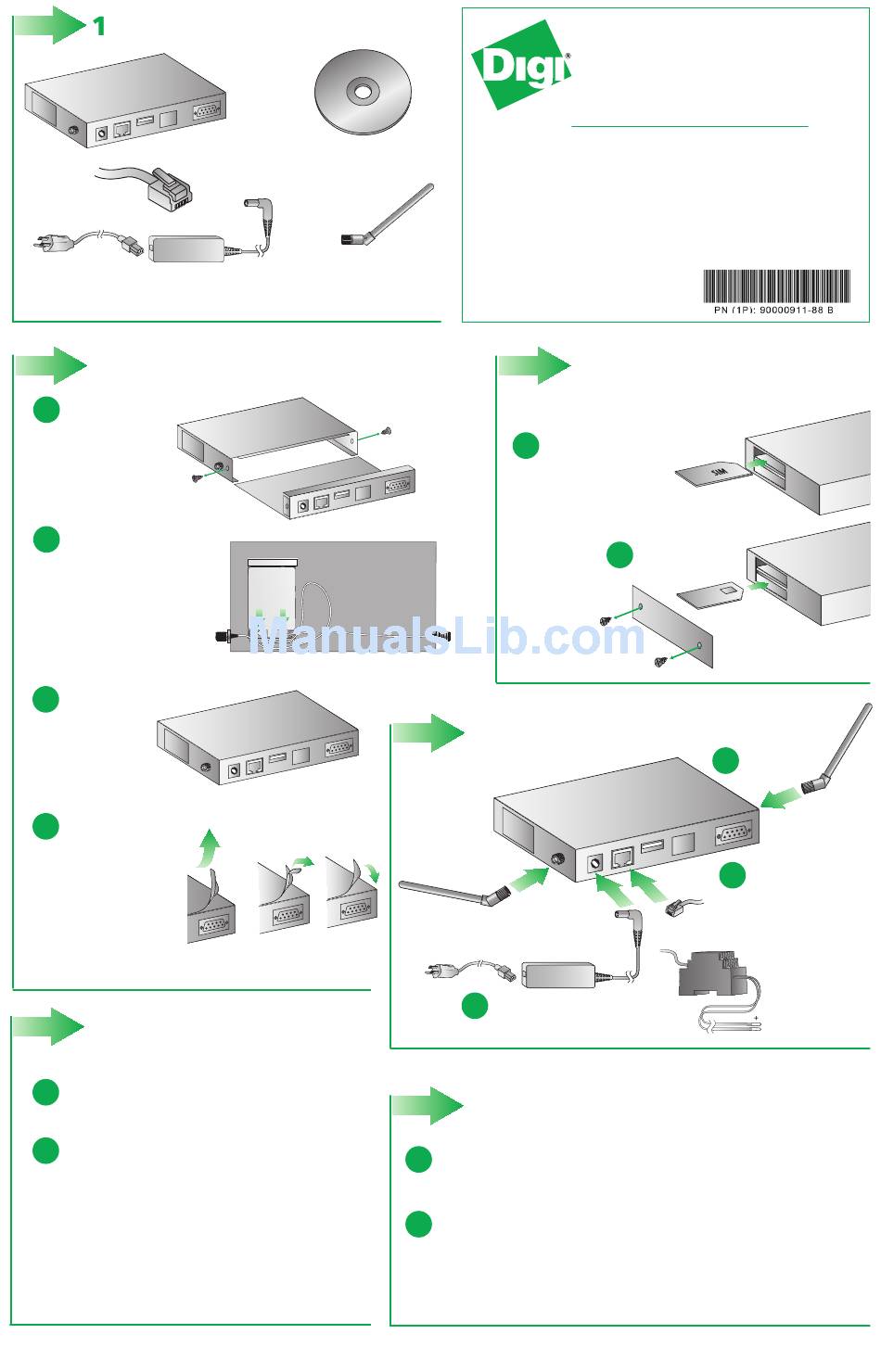

Digi Connect WAN 3G IA Quick Start Manual

Verify kit contents
Ethernet
cross-over cable
Power supply
(not included with Connect ™
2 Install PC card or module
a
Remove cover
Add module:
b
1. Snap module into
place
2. Attach antenna
cables (MAIN to
Primary external
antenna and AUX
to Secondary
external antenna
1. Replace cover
c
2. Replace screws
1. Hold tab on top
d
product label
2. Pull complete tab
and paper backing
strip off the
product label
3. Adhere the edge
of product label to
top front edge of
box
5 Configure your
cellular settings
a Open your web browser and enter the IP address 192.168.1.1
in the URL address bar
Under Configuration, click "Mobile." Enter your service provider
b
name and connection parameters and click "Apply"
Your device is now configured. If you would like to verify your
connections go to step 6
NOTE: If you have difficulty discovering your device, make sure your
host computer is set up to obtain IP addresses automatically (DHCP
server is enabled by default on the device). Also ensure all firewall
software is temporarily disabled
© 2008 Digi International, Inc.
Digi, Digi International, Inc., Digi Connect and the Digi logo are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are property of their respective owners.
Digi Connect WAN 3G
Software CD
Cellular
antennas
may be sold
separately
Not included:
must be supplied and
WAN 3G IA kit)
activated by a Cellular Service
Provider for device operation
AUX MAIN
Secondary
A SIM card
Primary
4 Connect hardware
a
c
Connect power supply
6 Validate Internet connection
Disconnect the Ethernet cross-over cable and reconnect it. This will re-establish the
a
Ethernet connection by assigning a new IP address through the DHCP server
To verify your Internet connection, enter a website of your choice
b
(e.g. www.digi.com) in the URL address bar of your browser and click "enter." Connecting
to a website indicates the connection is working
For additional information about your cellular connection, click System Information > Mobile or
reference the User's Guide provided on the enclosed CD

Quick Start Guide

Digi Connect
Digi Connect
3 Insert SIM card
(Only with GSM module)
Insert SIM into the primary SIM slot
a
(upper slot if you have a dual SIM)
Insert secondary SIM
b
card (if applicable)
b
c
OR
™ WAN 3G
™ WAN 3G IA
Fasten side panel over SIM
opening after SIM card(s)
are seated
Connect cellular
a
antennas
a
Connect Ethernet cross-
b
over cable to a PC and
the Ethernet port located
directly next to the power jack
Eternal power supply
for Connect ™ WAN
3G IA models
(not included)
