Mitsubishi FX3G-4EX-BD User Manual

JY997D51301C
Side
JAPANESE
A
Side
ENGLISH
B
FX -4EX-BD
3G
USER'S MANUAL
Manual Number JY997D51301
Revision C
Date December 2017
This manual describes the part names, dimensions, mounting, and specifications
of the product. Before use, read this manual and manuals of relevant products
fully to acquire proficiency in handling and operating the product. Make sure to
learn all the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration:
The company name and the product name to be described in this manual are the
registered trademarks or trademarks of each company.
Effective December 2017
Specifications are subject to change without notice.
©
2013 Mitsubishi Electric Corporation
Safety Precautions
(Read these precautions before use.)
This manual classify the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on the circumstances, procedures indicated by
cause severe injury.
It is important to follow all precautions for personal safety.

Associated Manuals

Manual name Manual No. Description
Explains FX 3S Series PLC
JY997D48601
FX 3S Series User's Manual specification details for I/O,
MODEL CODE:
- Hardware Edition w i r i n g , i n s t a l l a t i o n , a n d
09R535
maintenance.
Explains FX 3G Series PLC
JY997D31301
FX Series User's Manual specification details for I/O,
3G
MODEL CODE:
- Hardware Edition w i r i n g , i n s t a l l a t i o n , a n d
09R521
maintenance.
FX /FX /FX /FX /
3S 3G 3GC 3U
JY997D16601
FX 3UC Series Describes PLC programming
Programming Manual MODEL CODE: for basic/applied instructions
- Basic & Applied Instruction 09R517 and devices.
Edition
How to obtain manuals
For the necessary product manuals or documents, consult with the Mitsubishi
Electric dealer from where you purchase your product.
Side
B

Applicable standards

FX -4EX-BD
3G units made in September, 2013 or later comply with the EC Directive
(EMC Directive). Further information can be found in the following manual.
→ FX Series User's Manual - Hardware Edition
3S
→ FX Series User's Manual - Hardware Edition
3G
Regarding the standards that relate to the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.

Attention

This product is designed for use in industrial applications.

1. Outline

The FX 3G -4EX-BD input expansion board (hereinafter referred to as "
expansion board to be installed in the FX or FX
3S 3G
(hereinafter referred to as "PLC"), to add four additional inputs.

1.1 Incorporated Items

Verify that the following product and items are included in the package:
Product FX -4EX-BD
3G input expansion board
• M3×8 tapping screws for installation: 2 pcs.
Accessories • Side cover
• USER'S MANUAL (This manual)

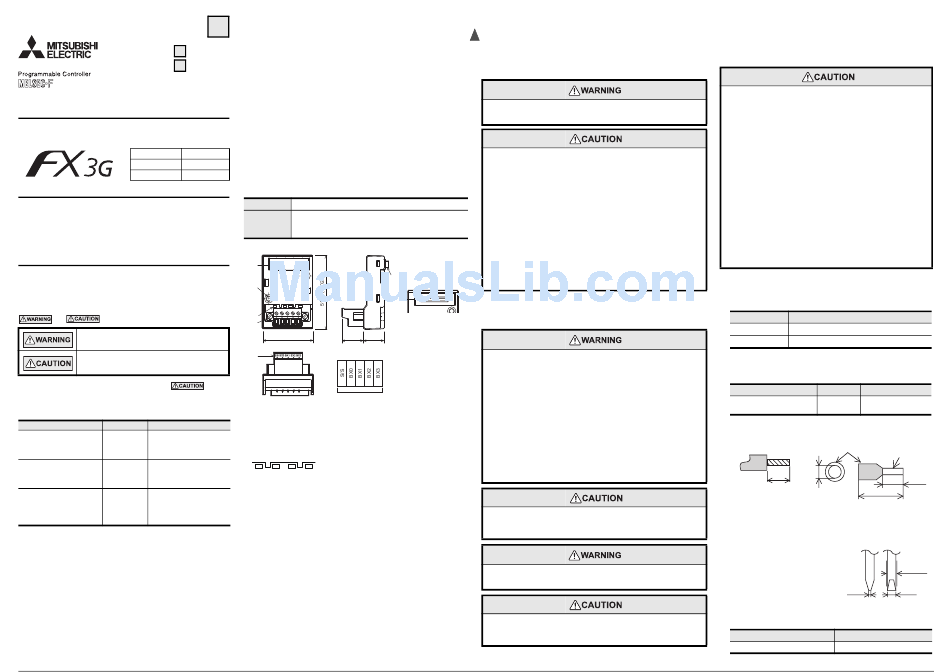

1.2 External Dimensions and Part Names

[4]
[3]
[2]
[1]
35 (1.38") 15.1 14.1
(0.6") (0.56")
[6] Terminal Layout
may also
5 poles
[1] Terminal block mounting screws
[2] Input LED
BX0 LED: The LED is lit when BX0 is on.
BX1 LED: The LED is lit when BX1 is on.
BX2 LED: The LED is lit when BX2 is on.
BX3 LED: The LED is lit when BX3 is on.
LEDs correspond to each input terminal
BX0 BX1 BX2 BX3
[3] Mounting holes (2-φ3.2)
[4] Connector cover
[5] Main unit connector
[6] Terminal block for input (European)
[7] Memory cassette/Display module connector

2. Installation

INSTALLATION
PRECAUTIONS
• Make sure to cut off all phases of the power supply externally before attempting
installation or wiring work.
Failure to do so may cause electric shock or damage to the product.
INSTALLATION
PRECAUTIONS
4EX-BD ") is an
• Use the product within the generic environment specifications described in PLC
series programmable controller
main unit manual (Hardware Edition).
Never use the product in areas with excessive dust, oily smoke, conductive dusts,
corrosive gas (salt air, Cl , H
2 2
or impacts, or expose it to high temperature, condensation, or rain and wind.
If the product is used in such conditions, electric shock, fire, malfunctions,
deterioration or damage may occur.
• Make sure to affix the expansion board with tapping screws.
Tightening torque should follow the specifications in the manual.
Loose connections may cause malfunctions.
• Use screwdrivers carefully when performing installation work, thus avoiding
accident or product damage.
• When drilling screw holes or wiring, make sure that cutting and wiring debris do
not enter the ventilation slits of the PLC.
Failure to do so may cause fire, equipment failures or malfunctions.
Unit: mm (inches)
• Do not touch the conductive parts of the product directly.
Doing so may cause device failures or malfunctions.
• Connect expansion board securely to their designated connectors.
[5] Connector cover is
Loose connections may cause malfunctions.
removed
For installation/uninstallation details, refer to the following manual.
[7]

3. Wiring

MASS (Weight):
Approx. 20 g (0.05 lbs)
DESIGN
PRECAUTIONS
• Make sure to have the following safety circuits outside of the PLC to ensure safe
system operation even during external power supply problems or PLC failure.
Otherwise, malfunctions may cause serious accidents.
1) Most importantly, have the following: an emergency stop circuit, a protection
circuit, an interlock circuit for opposite movements (such as normal vs.
reverse rotation), and an interlock circuit (to prevent damage to the equipment
at the upper and lower positioning limits).
2) Note that when the PLC CPU detects an error, such as a watchdog timer
error, during self-diagnosis, all outputs are turned off. Also, when an error that
cannot be detected by the PLC CPU occurs in an input/output control block,
output control may be disabled.
External circuits and mechanisms should be designed to ensure safe
machinery operation in such a case.
3) If an overload of the 24 V DC service power supply occurs, the voltage
automatically drops, inputs in the PLC are disabled, and all outputs are turned
off.
External circuits and mechanisms should be designed to ensure safe
machinery operation in such a case.
DESIGN
PRECAUTIONS
• Do not bundle the control line together with or lay it close to the main circuit or
power line. As a guideline, lay the control line at least 100 mm (3.94") or more
away from the main circuit or power line.
Noise may cause malfunctions.
WIRING
PRECAUTIONS
• Make sure to cut off all phases of the power supply externally before attempting
installation or wiring work.
Failure to do so may cause electric shock or damage to the product.
WIRING
PRECAUTIONS
• Connect the DC power supply to the dedicated terminals specified in the manual
of the PLC main unit.
If an AC power supply is connected to a DC input/output terminal or DC power
supply terminal, the PLC will burn out.
WIRING
PRECAUTIONS
• When drilling screw holes or wiring, make sure cutting or wire debris does not
enter the ventilation slits.
Failure to do so may cause fire, equipment failures or malfunctions.
• Make sure to observe the following precautions in order to prevent
malfunctions under the influence of noise:
- Do not bundle the power line or input line together with or lay it close to the
main circuit, high-voltage line or load line.
Otherwise, noise disturbance and/or surge induction are likely to take
place.
As a guideline, lay the control line at least 100mm (3.94") or more away
from the main circuit or high-voltage lines.
• Make sure to properly wire to the terminal block (European type) in
S, SO or NO ), flammable gas, vibration
2 2
accordance with the following precautions.
Failure to do so may cause electric shock, equipment failures, a short-circuit,
wire breakage, malfunctions, or damage to the product.
- The disposal size of the cable end should follow the dimensions described
in the manual.
- Tightening torque should follow the specifications in the manual.
- Twist the end of strand wire and make sure that there are no loose wires.
- Do not solder-plate the electric wire ends.
- Do not connect more than the specified number of wires or electric wires
of unspecified size.
- Affix the electric wires so that neither the terminal block nor the connected
parts are directly stressed.

3.1 Applicable Cable and Terminal Tightening Torque

3.1.1 Terminal block (European type)
1) Wire size
Wiring to input device should use 22 to 20 AWG wire.
→ FX Series User's Manual - Hardware Edition
3S
2) Applicable cable
→ FX
Series User's Manual - Hardware Edition
3G
Single-wire
2-wire
3) Termination of cable end
Strip the coating of strand wire and twist the cable core before connecting it,
or strip the coating of single wire before connecting it.
An alternative connection is to use a ferrule with insulating sleeve.
<Reference>
Phoenix Contact Co., Ltd.
*1 Old model name: CRIMPFOX ZA 3
*2 Old model name: CRIMPFOX UD 6
- Strand wire/single wire
When using a ferrule with insulation sleeve, choose a wire with proper cable
sheath referring to the above outside dimensions, or otherwise, the wire
cannot be inserted easily.
The tightening torque must be 0.22 to 0.25 N
screws exceeding the specified torque. Failure to do so may cause equipment
failures or malfunctions.
4) Tool
For tightening the terminal, use a
commercially available small
screwdriver having a straight form that is
not widened toward the end as shown
right.
Caution:
If the diameter of screwdriver grip is too
small, tightening torque will not be able
to be achieved. Use the following recommended screwdriver or an
appropriate replacement (grip diameter: approximately 25 mm (0.98")).
<Reference>
Type Wire size
0.3 to 0.5 mm 2 (AWG22 to 20)
2
2 pieces of 0.3 mm (AWG22)
Manufacturer Model Caulking tool
*1
CRIMPFOX 6
AI 0.5-8WH
*2
(or CRIMPFOX 6T-F )
- Ferrule with insulation sleeve
Contact area
Insulation sleeve
(Crimp area)
9mm
8mm
(0.35")
(0.31")
2.6mm(0.1") 14mm(0.55")
m. Do not tighten terminal
•
With
straight tip
0.4mm 2.5mm
(0.02") (0.1")
Manufacturer Model
Phoenix Contact Co., Ltd. SZS 0.4×2.5
