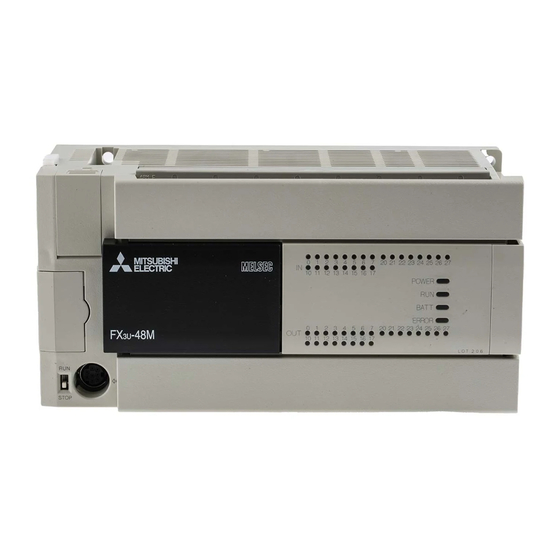

Mitsubishi FX3U SERIES Hardware Manual

Mitsubishi FX3U SERIES Hardware Manual

Hide thumbs Also See for FX3U SERIES:

Advertisement

JY997D18801G(ENGLISH)
FX
SERIES PROGRAMMABLE
3U
CONTROLLERS
HARDWARE MANUAL
Manual Number
JY997D18801
Revision
G
Date
November 2008
This manual describes the part names, dimensions, mounting,
cabling and specifications for the product. This manual is extracted
from FX
Series User's Manual - Hardware Edition. Refer to FX
3U
Series User's Manual - Hardware Edition for more details. Before
use, read this manual and manuals of relevant products fully to
acquire proficiency in the handling and operating the product. Make
sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and
read it whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this
manual are the registered trademarks or trademarks of each
company.
Effective Nov. 2008
Specifications are subject to change without notice.
© 2005 Mitsubishi Electric Corporation
Safety Precaution
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and
.
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or
severe injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in medium or
slight personal injury or physical damage.
Depending on the circumstances, procedures indicated by
may also cause severe injury.
It is important to follow all precautions for personal safety.
.
STARTUP AND
MAINTENANCE
PRECAUTIONS
• Do not touch any terminal while the PLC's power is on.
Doing so may cause electric shock or malfunctions.
• Before cleaning or retightening terminals externally cut off all
phases of the power supply.
Failure to do so may cause electric shock.
• Make sure to connect the battery for memory backup correctly.
Do not charge, disassemble, heat, short-circuit, or expose the
battery to fire.
Doing so may rupture or ignite it.
• Before modifying or disrupting the program in operation or
running the PLC, carefully read through this manual and the
associated manuals and ensure the safety of the operation.
An operation error may damage the machinery or cause accidents.
STARTUP AND
MAINTENANCE
3U
PRECAUTIONS
• Turn off the power to the PLC before attaching or detaching the
memory cassette. If the memory cassette is attached or
detached while the PLC's power is on, the data in the memory
may be destroyed, or the memory cassette may be damaged.
• Do not disassemble or modify the PLC.
Doing so may cause fire, equipment failures, or malfunctions.
For repair, contact your local Mitsubishi Electric distributor.
• Turn off the power to the PLC before connecting or disconnecting
any extension cable.
Failure to do so may cause equipment failures or malfunctions.
• Turn off the power to the PLC before attaching or detaching the
following devices.
Failure to do so may cause equipment failures or malfunctions.
- Display module, peripheral devices, expansion boards, and
special adapters
- Connector conversion adapter, extension blocks, and FX
Series terminal blocks
- Battery and memory cassette
DISPOSAL
PRECAUTIONS
• Please contact a certified electronic waste disposal company
for the environmentally safe recycling and disposal of your
device.
TRANSPORT AND
STORAGE
PRECAUTIONS
• Before transporting the PLC, turn on the power to the PLC to
check that the BATT LED is off.
If the PLC is transported with the BATT LED on or the battery
exhausted, the battery-backed data may be unstable during
transportation.
• The PLC is a precision instrument. During transportation, avoid
impacts larger than those specified in Section 2.1. Failure to do
so may cause failures in the PLC.
After transportation, verify the operations of the PLC.
Marine standard
Please consult with Mitsubishi Electric for the information on marine
standard practices and the corresponding types of equipment.
Certification of UL, cUL standards
FX
main units and input/output extension units/blocks supporting
3U
UL, cUL standards are as follows:
UL, cUL file number :E95239
Models :
MELSEC FX
series manufactured
3U
FX
-
MR/ES(-A)
FX
-
MT/ES(-A)
3U
3U
FX
-
MT/ESS
3U
Where
indicates:16,32,48,64,80,128
FX
3U
-
MR/DS
FX
3U
-
MT/DS
FX
-
MT/DSS
3U
Where
indicates:16,32,48,64,80
FX
-232ADP
FX
-485ADP
3U
3U
FX
-4AD-ADP
FX
-4DA-ADP
3U
3U
FX
-4AD-PT-ADP
FX
-4AD-TC-ADP
3U
3U
FX
-4HSX-ADP
FX
-2HSY-ADP
3U
3U
Models :
MELSEC FX
2N
series manufactured
FX
-
ER-ES/UL
FX
-
ET-ESS/UL
2N
2N
Where
indicates:32,48
FX
-48ER-DS
FX
-48ET-DSS
2N
2N
FX
2N
-48ER-UA1/UL
FX
-8ER-ES/UL
FX
-8EX-ES/UL
2N
2N
FX
-8EYR-ES/UL
FX
-8EYT-ESS/UL
2N
2N
FX
-8EX-UA1/UL
2N
FX
-16EX-ES/UL
FX
-16EYR-ES/UL
2N
2N
FX
-16EYT-ESS/UL
2N
Compliance with EC directive(CE Marking )
This document does not guarantee that a mechanical system
including this product will comply with the following standards.
Compliance to EMC directive and LVD directive of the entire
mechanical system should be checked by the user / manufacturer.
For more details please contact the local Mitsubishi Electric sales
site.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct
testing (of the identified standards below) and design analysis
(through the creation of a technical construction file) to the European
Directive for Electromagnetic Compatibility (89/336/EEC) when used
as directed by the appropriate documentation.
Type :
Programmable Controller (Open Type Equipment)
Models :
MELSEC FX
series manufactured
3U
from May 1st, 2005
FX
-
MR/ES(-A)
3U
Where
indicates:16,32,48,64,80
FX
-4HSX-ADP
FX
-2HSY-ADP
3U
3U
FX
3U
-FLROM-16
FX
3U
-FLROM-64L
FX
-7DM
3U
from June 1st, 2005
FX
3U
-232ADP
FX
3U
-485ADP
FX
-4AD-ADP
FX
-4DA-ADP
3U
3U
FX
-4AD-PT-ADP FX
-4AD-TC-ADP
3U
3U
FX
-232-BD
FX
-422-BD
3U
3U
FX
-485-BD
FX
-USB-BD
3U
3U
FX
-FLROM-64
FX
-CNV-BD
3U
3U
from November 1st, 2005 FX
-
MT/ES(-A)
3U
FX
-
MT/ESS
3U
Where
indicates:16,32,48,64,80
from February 1st, 2006
FX
-128MR/ES(-A) FX
-128MT/ES(-A)
3U
3U
FX
-128MT/ESS
3U
FX
-
MR/DS
FX
-
3U
3U
FX
-
MT/DSS
3U
Where
indicates:16,32,48,64,80
Standard
Remark
EN61131-2:2003
Compliance with all relevant aspects
Programmable controllers
of the standard.
• Radiated Emissions
- Equipment
requirements and tests
• Mains Terminal Voltage Emissions
• RF immunity
• Fast Transients
• ESD
• Surge
• Voltage drops and interruptions
• Conducted
• Power magnetic fields
Models :
MELSEC FX
series manufactured
2N
from July 1st, 1997
FX
-
ER-ES/UL FX
-
ET-ESS/UL
2N
2N
Where
indicates:32,48
FX
-16EX-ES/UL
FX
-16EYR-ES/UL
2N
2N
FX
-16EYT-ESS/UL
2N
from April 1st, 1998
FX
-48ER-DS
FX
-48ET-DSS
2N
2N
from August 1st, 1998
FX
-48ER-UA1/UL
2N
from August 1st, 2005
FX
-8ER-ES/UL
FX
-8EX-ES/UL
2N
2N
FX
-8EYR-ES/UL FX
-8EYT-ESS/UL
2N
2N
For the products above, PLCs manufactured
before March 31st, 2002 are compliant with EN50081-2 (EN61000-
6-4) and EN50082-2
from April 1st, 2002 to April 30th, 2006 are compliant with EN50081-
2 (EN61000-6-4) and EN61131-2:1994+A11:1996+A12:2000
after May 1st, 2006 are compliant with EN61131-2:2003
Standard
Remark
EN61000-6-4:2001
Compliance with all relevant aspects
- Generic emission
of the standard.
standard
• Radiated Emissions
Industrial environment
• Mains Terminal Voltage Emissions
EN50081-2:1993
Electromagnetic
compatibility
EN50082-2:1995
Compliance with all relevant aspects
Electromagnetic
of the standard.
compatibility
• RF immunity
• Fast Transients
- Generic immunity
• ESD
standard
Industrial environment
• Conducted
• Power magnetic fields
EN61131-2:1994
Compliance with all relevant aspects
/A11:1996
of the standard.
• RF Immunity
/A12:2000
• Fast Transients
Programmable controllers
- Equipment
• ESD
• Damped oscillatory wave
requirements and tests
EN61131-2:2003
Compliance with all relevant aspects
Programmable controllers
of the standard.
• Radiated Emissions
- Equipment
• Mains Terminal Voltage Emissions
requirements and tests
• RF immunity
• Fast Transients
• ESD
• Surge
• Voltage drops and interruptions
• Conducted
• Power magnetic fields
MT/DS
