BFT P4,5 Installation And User Manual
  1. Manuals
  2. Brands
  3. BFT Manuals
  4. Gate Opener
  5. P4,5
  6. Installation and user manual
BFT P4,5 Installation And User Manual

BFT P4,5 Installation And User Manual

Piston automation for swing gates
Hide thumbs Also See for P4,5:

Advertisement

Quick Links

Download this manual
AUTOMAZIONI A PISTONE PER CANCELLI A BATTENTE
PISTON AUTOMATION FOR SWING GATES
AUTOMATIONS A PISTON POUR PORTAILS BATTANTS
KOLBEN AUTOMATIONEN FÜR FLÜGELGITTERTORE
AUTOMATIZACIONES A PISTON PARA PORTONES CON BATIENTE
AUTOMATIZAÇÃO A PISTÃO PARA PORTÕRS COM BATENTE
Attenzione! Leggere attentamente le "Avvertenze" all'interno! Caution! Read "Warnings" inside carefully! Attention! Veuillez lire attentivement les Avertissements qui se trouvent à l'intérieur!
Achtung! Bitte lesen Sie aufmerksam die „Hinweise" im Inneren! ¡Atención¡ Leer atentamente las "Advertencias" en el interior! Atenção! Ler atentamente as "Instruções " que se encontram no interior!

Advertisement

loading
Need help?

Need help?

Do you have a question about the P4,5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BFT P4,5

Summary of Contents for BFT P4,5

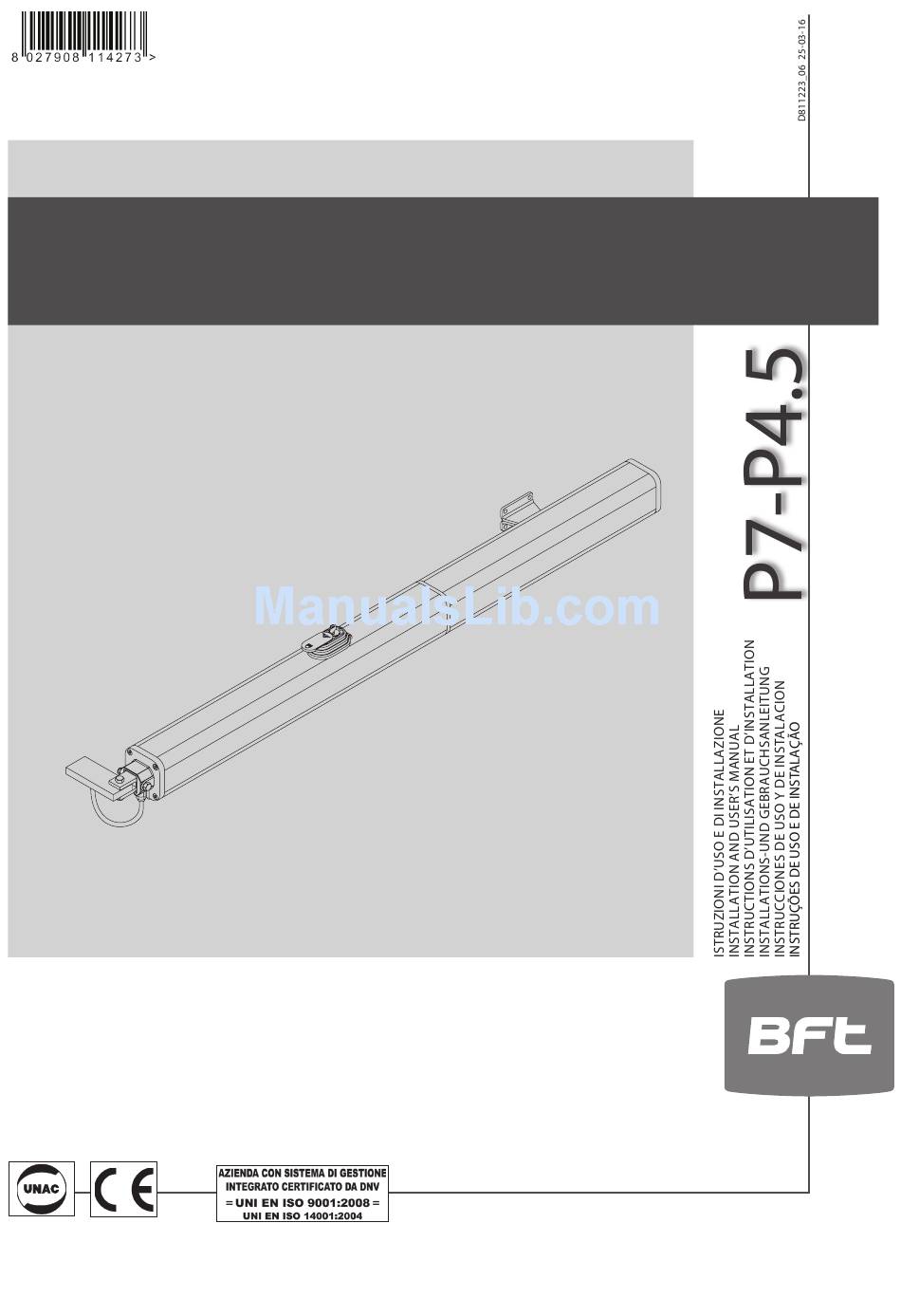

  • Page 1 AUTOMAZIONI A PISTONE PER CANCELLI A BATTENTE PISTON AUTOMATION FOR SWING GATES AUTOMATIONS A PISTON POUR PORTAILS BATTANTS KOLBEN AUTOMATIONEN FÜR FLÜGELGITTERTORE AUTOMATIZACIONES A PISTON PARA PORTONES CON BATIENTE AUTOMATIZAÇÃO A PISTÃO PARA PORTÕRS COM BATENTE Attenzione! Leggere attentamente le “Avvertenze” all’interno! Caution! Read “Warnings” inside carefully! Attention! Veuillez lire attentivement les Avertissements qui se trouvent à l’intérieur! Achtung! Bitte lesen Sie aufmerksam die „Hinweise“...

  • Page 2: Installer Warnings

    - Apply at least one warning light (flashing light) in a visible position, and also attach a Warning sign to the structure. DECLARATIONS OF CONFORMITY CAN BE FOUND AT http://www.bft- - Attach a label near the operating device, in a permanent fashion, with informa- automation.com/CE tion on how to operate the automated system’s manual release.

  • Page 3: General Safety

    - Keep out of range of the motorized door or gate while they are moving. - Keep remote controls or other control devices out of reach of children in order to avoid the automated system being operated inadvertently. - The manual release’s activation could result in un- controlled door movements if there are mechanical faults or loss of balance.
  • Page 4 operation can only be guaranteed if the instructions given herein are complied with. The Firm shall not be answerable for damage caused by failure to comply with the instructions featured herein. While we will not alter the product’s essential features, the Firm reserves the right, at any time, to make those changes deemed opportune to improve the product from a technical, design or commercial point of view, and will not be required...
  • Page 5 Fig. 1 Fig. 2 1418 1335 410 (Ct) 390 (Cu) 20 (Cr) Ct = Corsa totale Cu = Corsa utile Cr = Corsa rallentamento Total stroke Working stroke Slow-down stroke Course totale Course utile Course de ralentissement Totalhub Nutzhub Verlangsamungsstrecke Carrera total Carrera útil Carrera de deceleraciûn...
  • Page 6 Fig. 4 a ° Fig. 5 Fig. 6 Fig. 7 Fig. 8 16 - P7 - P4.5...
  • Page 7 Fig. 9 Fig. 10 7° Fig. 11 Fig. 12 P7 - P4.5 -...
  • Page 8 Fig. 13 Fig. 14 Close 4 0 0 Open Fig. 15 Fig. 16 18 - P7 - P4.5...
  • Page 9 Fig. 17 Fig. 18 Fig. 19 CLOSE OPEN P7 - P4.5 -...
  • Page 10 Fig. 20 Fig. 21 Fig. 22 20 - P7 - P4.5...
  • Page 11 INSTALLATION MANUAL ENGLISH 2) GENERAL OUTLINE opening degrees which are to be obtained. The table highlights the optimum A compact sturdy hydraulic piston, available in various versions according to “a” and “b” values for an opening of a°=90° at constant speed; in this condition, the user’s requirements and type of operation.
  • Page 12 ENGLISH INSTALLATION MANUAL 8) ELECTRICAL INSTALLATION SET-UP 12) AUTOMATION CHECK Lay out the electrical installation (fig.16) with reference to the CEI 64-8 and IEC Before the automation device finally becomes operational, scrupulously check 364 provisions, complying with the HD 384 and other national standards in the following conditions: force for electrical installation.
