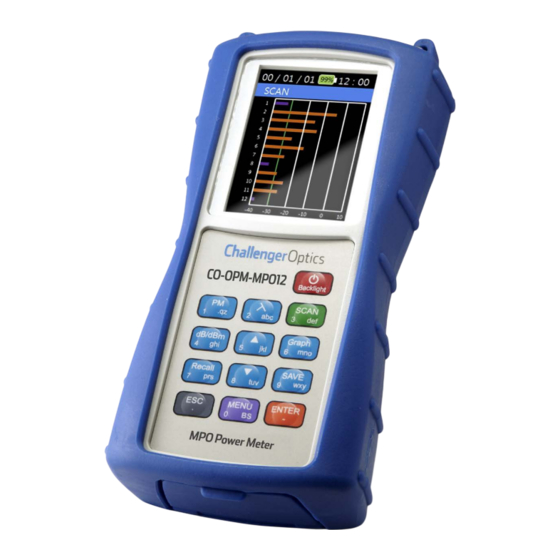

- Quick start: No warm-up and 2 second measurement - Software provided for data management The CO-OPM-MPO12 has a rechargeable battery . A USB power adapter and micro USB cable are provided for charging . Typical charge time is six hours .
Move down in a menu/page down in result screen SAVE Save measurement to meter memory Cancel or move back to previous menu MENU Access System Menu and settings ENTER Enter ChallengerOptics.com ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment Wavelength Specific Optical Testing and Measurement Equipment...
. dB (relative) & dBm (absolute) power measurements dB/dBm To measure the relative loss of an MPO circuit, connect the CO-OPM-MPO12 to a known light source with a short (test) jumper . (continued) ChallengerOptics.com ChallengerOptics.com...
. saved measurements . Press ENTER to select the data – you want to display . ChallengerOptics.com ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment Wavelength Specific Optical Testing and Measurement Equipment...
. you to configure the operating The following message shows, environment of the and the measurement is saved CO-OPM-MPO12 using the current date and time as the filename . The menu consists of: Polarity Then, press the...
‘+’ and ‘-’ sign can be changed with the buttons after offset value is entered . You can save the time by pressing button . ENTER – ChallengerOptics.com ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment Wavelength Specific Optical Testing and Measurement Equipment...
General information about the memory . equipment . PN - Product Name SN - Serial Number HW - Hardware version FW - Firmware version ChallengerOptics.com ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment Wavelength Specific Optical Testing and Measurement Equipment...
▲ ▼ ‘All’ will display power level on all 12 fibers . If you choose ‘Measured’ , only active fibers will be displayed . ChallengerOptics.com ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment Wavelength Specific Optical Testing and Measurement Equipment...
