Page 1: Table Of Contents
CO-OLS-MPO12U / Interactive Operating Manual Best viewed with Adobe Acrobat Reader 1.0 Introduction 1.1 Special Features 1.2 Specifications 1.3 Package Contents 1.4 Charge Method 1.5 Meter Care 2.0 Getting Started 2.1 Operating Keys 2.2 Key Function 2.2.1 Power ON/OFF 2.2.2 Light Source ChallengerOptics.com... -
Page 2: Introduction
Contents CO-OLS-MPO12U 1. Introduction 1.1 Special Features - 12 Fiber - CW (Continuous Wavelength), Modulation (270Hz,1KHz, 2KHz) mode - Compact size, one button operation - Color LCD for graph display - Light weight for easy field use - Quick start: Minimal warm-up 1.2 Specifications... -
Page 3: Package Contents
1 ea User’s Manual - USB stick 1 ea 1.4 Charge Method The CO-OLS-MPO12U has a rechargeable battery. A USB power adapter and micro USB cable are provided for charging. Typical charge time is three hours. Charging conditions: LED Color... -
Page 4: Getting Started

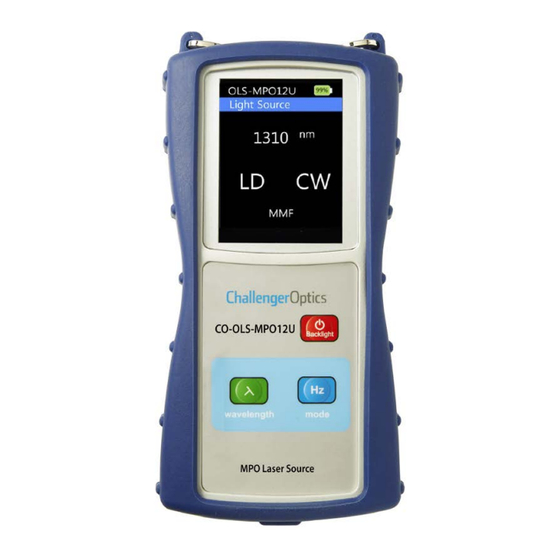

Contents CO-OLS-MPO12U 2. Getting Started 2.1 Explanation of Operating Keys Function Backlight Power On/Off, Backlight On/Off λ Change wavelength Change modulation (Off, CW, 270Hz, 1Kz, 2KHz) ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment... -
Page 5: Key Function
Contents CO-OLS-MPO12U 2.2 Key Function 2.2.1 Power ON / OFF To turn on and off. Press the button for more Backlight than 2 seconds, the logo shown appears. The meter then displays the channel with the highest power level. -
Page 6: Light Source
Contents CO-OLS-MPO12U 2.2.2 Light Source Press to change modulation. (Off, 270 Hz, 1 KHz, 2 KHz) Press λ to change wavelength. ChallengerOptics.com Wavelength Specific Optical Testing and Measurement Equipment...
