Summary of Contents for Vivreau Vi Tap-2

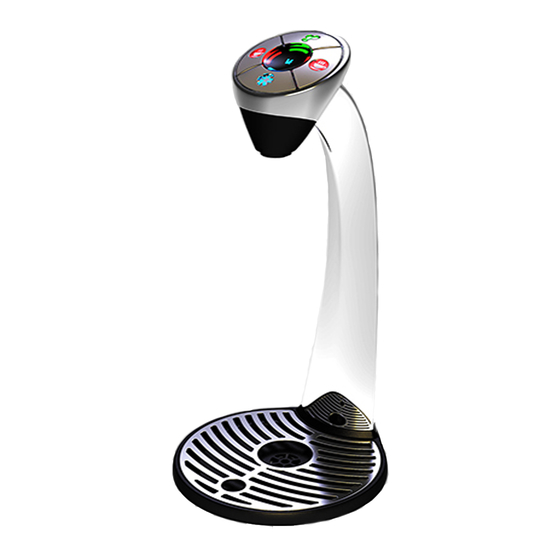

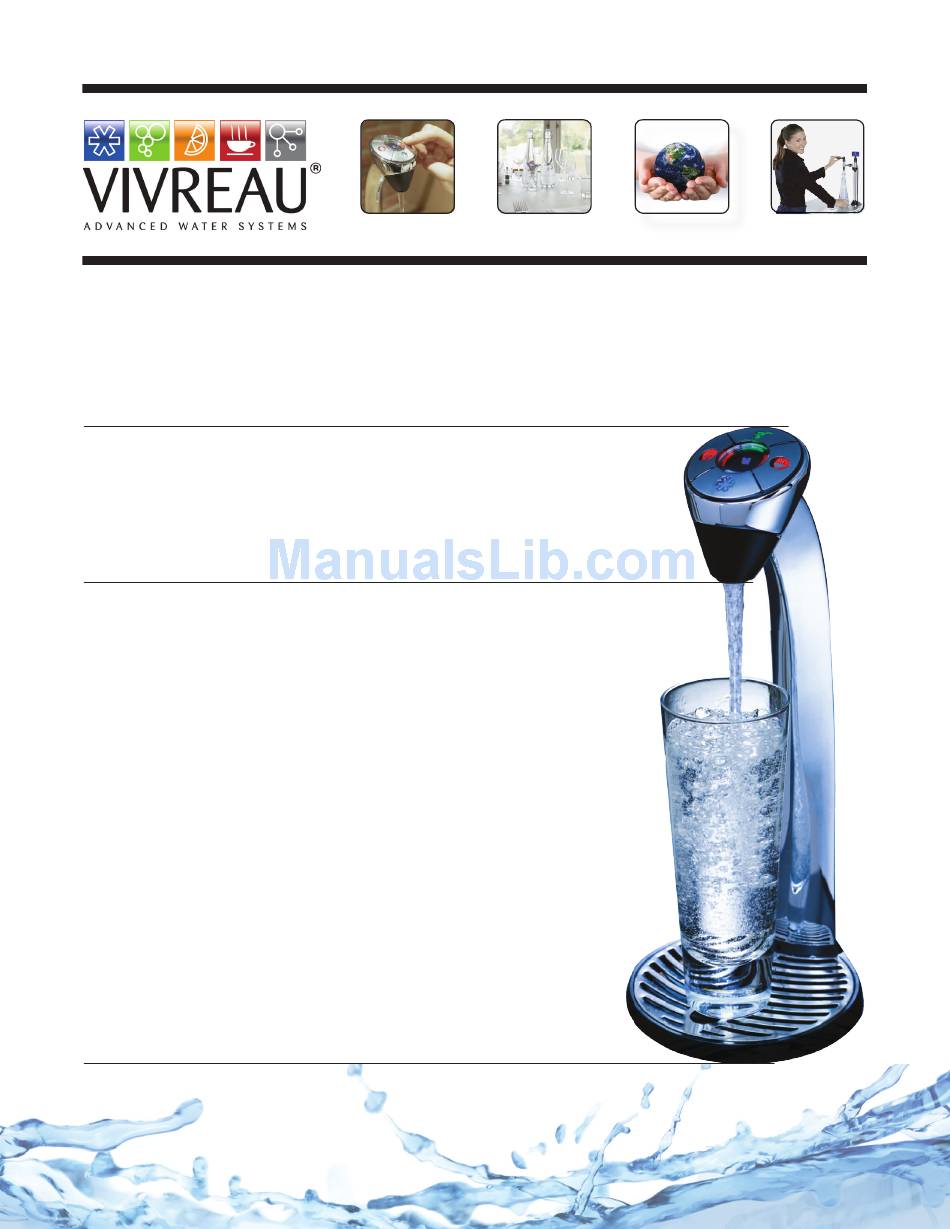

- Page 1 Freshly-drawn Traditionally Served Environmentally Friendly Specially Branded Owner’s Manual Vi TAP Dispensing System MODELS Vi TAP-2 Vi TAP-2 H Vi TAP-2 HD 170120...
- Page 2 This manual and all material provided with your system should be retained in a convenient location for future reference. Contact Vivreau if you have any questions regarding the information contained in this manual. © 2017 Vivreau USA All rights reserved.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ............5 GENERAL INFORMATION ............7 TECHNICAL SPECIFICATIONS ..........9 PRE-INSTALLATION REQUIREMENTS ........11 OPERATING INSTRUCTIONS ..........13 MAINTENANCE ................17 TROUBLESHOOTING ...............23 Vi Tap Dispensing System Owner’s Manual... - Page 4 Vi Tap Dispensing System Owner’s Manual...
-
Page 5: Safety Precautions
• The use of spare parts and accessories • Learn how to operate the unit and how to use not recommended by Vivreau may cause the controls properly. damage and/or injuries. Do not let anyone operate the unit without •... - Page 6 Section 1 Safety Precautions Vi Tap Dispensing System Owner’s Manual...
-
Page 7: General Information
This manual is solely for the use of personnel the Vivreau ViTAP-2, ViTAP-2H and ViTAP-2HD trained in the operation of the ViVreau ViTAP Dispensing Systems. Dispensing System only. •... - Page 8 Section 2 General Information Vi Tap Dispensing System Owner’s Manual...
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL DESCRIPTION The system is made up of several components The Vivreau ViTAP-2 (H/HD) is a self-service Water (depending on model) that will fit under a standard Dispensing System designed for under-counter base-cabinet section that is 30” wide (min.) installation with the Dispenser Head mounted to the countertop directly above the unit. - Page 10 Section 3 Technical Specifications Cooler/Carbonator Specifications Description Specification ViTap-2 ViTap-2H ViTap-2HD ü ü ü Width 15” ü ü ü Height 20” ü ü ü Depth 18.5” ü ü ü Weight 39.6 lb. ü ü ü Voltage 110/120 VAC/60 Hz ü ü...
-
Page 11: Pre-Installation Requirements
Cylinder (Customer supplied) - Size should Below are the services required to be in place be selected based on available space. prior to the installation of the Vivreau ViTAP Dispensing System. If you have any questions NOTE: If connecting to a bulk or existing CO... - Page 12 11" in a free and unobstructed area. Front Ventilation Cut-out detail for the Showing ventilation VIVREAU grille, shown in grilles cut in a standard a 23.5" (24") wide door door panel Side Ventilation Ventilation grilles cut in the side of a standard 24"...
-
Page 13: Operating Instructions
Cylinder. CALL SERVICE: If there is a problem, a Red LED will illuminate and the unit will beep. Please contact Vivreau Service Toll-Free at 877-999- 1044 immediately. EMPTY DRIP TRAY: (Not Activated on this Unit): When the Drip Tray Container is FULL, a Red LED will illuminate and the unit will beep;... - Page 14 Section 5 Operation DISPENSING Hot Water (if supplied) As a safety feature, to dispense Hot Water, Touch IMPORTANT _________________________ and Release either Red Button, then Press and Hold the opposite side Red Button within 3 seconds. Before operating the ViTap Dispensing System, make sure the Water Supply Valve is open and Release the button when filled.
- Page 15 Section 5 Operation FOR UNITS WITH ECO MODE OPTIONAL HOT WATER BOILER All Boilers incorporate an ECO Mode function. Operating Boiler for the First Time: To Enable ECO Mode: Make sure installation is correct. Press the ECO Mode Button located below the Ready indicator so that the leaf symbol Turn ON the Water Supply Valve.
- Page 16 Section 5 Operation 16 Vi Tap Dispensing System Owner’s Manual...
-
Page 17: Maintenance
PROCEDURE Keep the unit at peak efficiency by performing all scheduled maintenance procedures that are WARNING Before performing recommended by Vivreau. Proper maintenance maintenance service procedure that will allow the best performance and a longer involves electrical connection or disconnection working life. - Page 18 The ViTAP Dispensing System should be cleaned stainless steel scouring pads) will mar the surface. once a day. Vivreau recommends using disinfectant spray CAUTION Never use steel wool, which will or a sanitizing wipe for cleaning. leave behind particles that rust.
- Page 19 Section 6 Maintenance CLEANING SCHEDULE Cleaning Schedule Component Task Frequency Personnel Cleaning & Sanitizing Daily End-User Dispensing Head/Nozzle Drip Tray Draining, Cleaning Daily End-User Fill Level Weekly Cylinder End- User Replace As Needed Chiller Condenser Grille Cleaning, Degreasing Weekly End-User Chiller Exterior Cleaning Weekly...
- Page 20 Section 6 Maintenance CLEANING THE COOLING SYSTEM CHANGING THE CO CYLINDER CONDENSER GRILLE WARNING Wear protective gloves and The Cooling System Condenser Grille is located safety glasses when changing CO Cylinders. on the front side of the Cooler/Carbonator. WARNING CO is a colorless, odorless gas.
- Page 21 Section 6 Maintenance Loosen the connection to the Cylinder with the wrench provided and remove the Regulator from the Cylinder. WARNING The line is pressurized. Pressure will released while performing this procedure. Handle carefully. Checking for Leaks Refer to your local CO supplier for complete handling and safety instructions.
- Page 22 Dispensing Head. Bacteria and germs can form if the water dispenser has been disconnected from the Contact Vivreau Service Toll-Free at 877-999-1044. power supply for longer than 72 hours. After a longer idle period or a power failure, proceed as follows: Disconnect the Water Dispenser from the power supply.
-
Page 23: Troubleshooting
WARM WATER (Still and Sparkling) Make sure Chiller/Carbonator is plugged in and operating. Make sure the Condenser Grille is not clogged or blocked. If these Troubleshooting procedures do not resolve the issue, contact Vivreau Service Toll-Free at 877-999-1044. Vi Tap Dispensing System Owner’s Manual... - Page 24 Section 7 Troubleshooting NOTES 24 Vi Tap Dispensing System Owner’s Manual...
- Page 25 Section 7 Troubleshooting NOTES Vi Tap Dispensing System Owner’s Manual...
- Page 26 Section 7 Troubleshooting NOTES 26 Vi Tap Dispensing System Owner’s Manual...
- Page 27 Vi Tap Dispensing System Owner’s Manual...
- Page 28 +1 877 999 1044 email: infocanada@vivreau.com email: infousa@vivreau.com A S I A N PA C I F I C A F R I C A VIVREAU South Africa VIVREAU Australia VIVREAU New Zealand +27 21 671 6306 Tel: +61 3 9590 0886 Tel.
