FLIR Meridian 2TB Quick Installation Manual

A. Package Contents
Equipment
1.

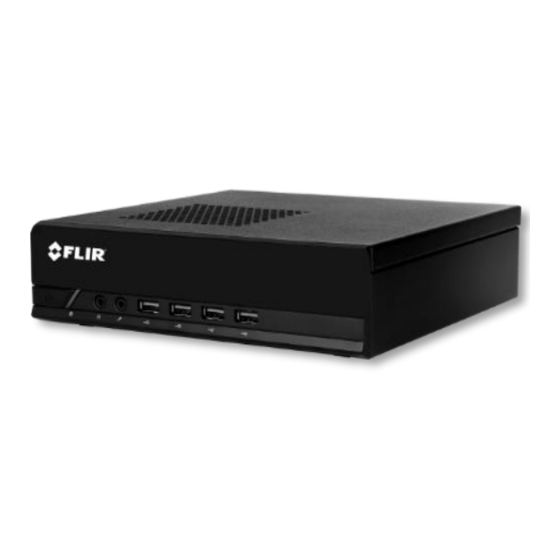

Meridian 2TB / 4TB NVR preloaded
with Meridian Software
2. USB Keyboard and Mouse
3. AC Power Cords
4. AC/DC Adapter
5. VESA Mount Plate with 4 x M4
screws
6. Wireless Antenna
7. HDMI to VGA Adapter
2TB/4TB Quick Installation Guide
Documents
1. Quick Installation Guide
2. OS End User License
Agreement
3. VESA Mount Instructions

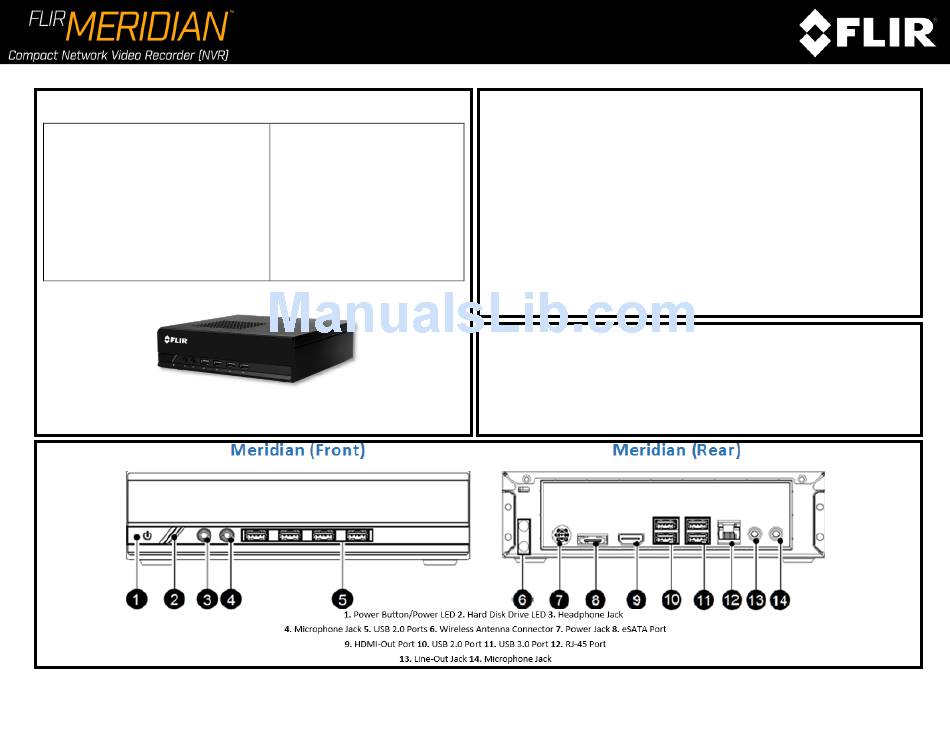

B. Setup workflow (Standalone network)
1. Setup your video network LAN and configure network infrastructure to match your
security plan (switches, routers, Ethernet cables and jacks).
2. Connect all cameras to the appropriate switches.
3. Attach the wireless antenna (included) to the antenna connector (6). This can be used to
connect the Meridian to the internet or a corporate domain. The wireless adapter is
disabled by default. Do not enable until after the wizard has complete.
4. Connect the Meridian NVR to power (7) – use the NVR power supply and cables and
connect to power.
5. Connect a monitor to the Meridian NVR – For VGA connection, connect the HDMI to VGA
video adapter provided in the box to port (9) and use a VGA cable to connect it to monitor.
Alternatively connect a compatible monitor cable directly to the HDMI display port.
6. Connect the Meridian NVR unit to the network using the RJ-45 port (12).
7. Connect the USB keyboard and mouse to 2 available USB ports (10).
C. Starting and Configuring the Meridian 2TB/4TB NVR
Your Meridian NVR is preconfigured by FLIR, and is almost ready for operation.
1. Turn on the monitor and start the Meridian NVR using the Power Button (1).
Use the default username administrator and password dvtel to log on to
2.
Windows. The Meridian Initial Setup Wizard is displayed.
Follow the steps in the wizard. If necessary, refer to the embedded Help file for
assistance.
