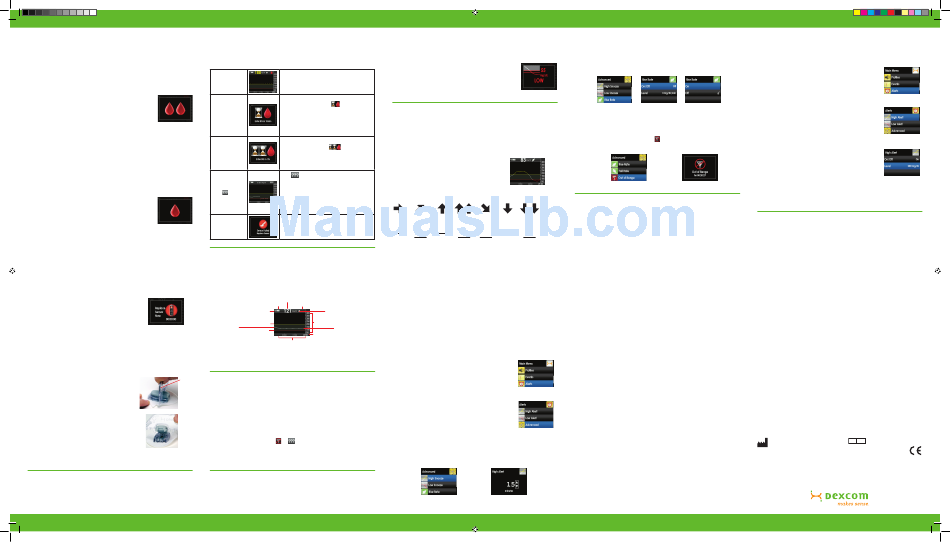

Step 6
Calibrating
You need to use your blood glucose meter to calibrate your Dexcom G4
PLATINUM System. At the end of the 2-hour startup period, you must enter
two calibrations before any sensor glucose readings will show. Calibration
blood glucose values need to be entered into the receiver within 5 minutes of
testing with your blood glucose meter.
Startup Calibration:
a. After the 2-hour startup period, the startup calibration
double blood drop prompt will show on the receiver
screen. Press the SELECT button to clear this alert.
b. Wash and dry your hands.
c. Take a fingerstick blood glucose measurement using your
Startup calibration
blood glucose meter.
prompt
d. From any trend graph, press the SELECT button to get
to the Main Menu.
e. Press the DOWN button to highlight Enter BG. Press the SELECT button.
f. For the startup calibration, the default blood glucose value on the receiver
is 120 mg/dL. Press the UP or DOWN button to enter the exact blood
glucose value from your blood glucose meter. Press the SELECT button.
g. Press the SELECT button again to accept the calibration.
h. Repeat steps c-g to enter a second blood glucose value.
Calibration Update:
The calibration single blood drop prompt will appear on
the receiver screen to let you know a calibration update is
needed. To confirm this prompt, press SELECT.
After your startup calibration, calibration updates must be
entered once every 12 hours at a minimum.
Calibration prompt
NOTE: Calibrating less than the recommended amount
may result in inaccurate sensor glucose readings. You
can enter more calibrations each day if you want. See the
Dexcom G4 PLATINUM System User's Guide for more
details on calibrating.
Step 7
Ending Your Sensor Session
The sensor automatically shuts off after 7 days.
The receiver will alert you at 6 hours, 2 hours and
30 minutes before the sensor session ends. The
Replace Sensor Now screen will show when it is
time to remove your sensor.
Replace Sensor Now screen
Removing Your Sensor Pod and Transmitter:
NOTE: Keep the sensor and transmitter together when removing from your
skin.
a. Peel the sensor pod off your body like a Band-Aid. Do not remove the
transmitter from the sensor pod until the entire sensor has been removed
from your body.
b. Place the sensor pod/transmitter on a flat
Safety
surface. There are two ways you can remove the
Lock
transmitter:
• Use your fingers to spread the back tabs of the
sensor pod. The transmitter will pop out.
OR
• Use the safety lock (from the sensor
applicator). Insert the jagged edges of the
safety lock so they "hug" the wide end of the
transmitter in the sensor pod. Press the safety
lock down until you cannot press anymore, and
then pull up. The transmitter will pop out.
c. Keep the transmitter. Dispose of the sensor
Transmitter with Safety
following your local guidelines for disposal of
Lock snapped in
blood-contacting components.
Sensor Troubleshooting
Refer to your Dexcom G4 PLATINUM System User's Guide or contact
your local distributor for any unresolved questions/troubleshooting issues.
The Dexcom G4 PLATINUM System online tutorial is also available at
www.dexcom.com.
Calibration needed.
Blood Drop • Enter a calibration as described in Step 6 of this
quick start guide
in Status Area
Sensor is not calibrating correctly.
• Press the SELECT button. will show in status
bar
Wait 15 Minute • Wait 15 minutes, then enter 1 calibration
• If error continues, enter 1 more calibration, and wait 15
Calibration Error
minutes
• If no sensor glucose readings show, contact your
local distributor
Sensor is not calibrating correctly.
• Press the SELECT button. will show in status
Wait 1 Hour
bar
Calibration
• Wait about 1 hour, then enter 1 calibration
Error
• Wait 15 minutes. If no sensor glucose readings
show, contact your local distributor
Wait. usually clears up by itself within
minutes or hours. If this continues after 3 hours,
Glucose Reading contact your local distributor.
• Do not calibrate
Error in Status
• Make sure the sensor pod is sticking well to your
Area
body and nothing is rubbing against it
• Check that the transmitter is snapped in on both
sides
Sensor shuts off before end of 7-day session.
• Press the SELECT button to clear the alert/screen
Sensor Failed
• Contact your local distributor
• Remove failed sensor and insert a new sensor
Receiver Display
You will see this screen when you turn on your receiver during a sensor session.
Most recent 5-minute glucose reading
Battery Status Area
Antenna
Trend Arrow
High Glucose Glucose
Glucose
Alert Setting
Values Plot of most
Target
recent glucose
Low Glucose
Range
reading
Current Time
Alert Setting
Trend Graph Hours
NOTE: Sensor glucose readings above your High Alert setting are yellow.
Sensor glucose readings below your Low Alert setting are red. Sensor
glucose readings in target are white.
Calibration "Do's"
• Use the same blood glucose meter for all calibrations during a sensor
session.
• Make sure your blood glucose test strips are coded correctly and not
expired.
• Wash and dry your hands before testing your blood glucose.
• Use only fingerstick blood glucose values for calibration.
Calibration "Don'ts"
• Don't calibrate when you see or in the status bar.
• Don't calibrate if your blood glucose value is higher than 400 mg/dL or lower
than 40 mg/dL.
• Don't calibrate when acetaminophen (paracetamol) is active in your body.
Low Glucose Alarm
The Dexcom G4 PLATINUM System has an automatic Low Glucose alarm
set at 55 mg/dL. You cannot change or turn off this alarm or its re-alert
settings. If you get this alarm:
• Press the SELECT button to clear.
• You will get this alarm again in 30 minutes if your sensor
glucose reading is still at or below 55 mg/dL.
Low Glucose alarm
Advanced Features of the Dexcom G4 PLATINUM
CGM System
The Dexcom G4 PLATINUM System has advanced features and alerts to
take your glucose sensing to the next level. Except for the Trend Arrows and
Event Markers, these advanced alerts are turned 'off' when you first receive
your Dexcom G4 PLATINUM System but can be turned on and customized.
Advanced Feature #1: Trend Arrows
A trend arrow may show next to the sensor
glucose reading on your receiver trend screens.
Trend arrows show you the direction and speed
your glucose is changing. See the Dexcom
G4 PLATINUM System User's Guide for more
information.
Rate of change arrow appears
in upper right of trend graph
No arrow
Constant Slowly Rising Rapidly Slowly Falling Rapidly No Rate
Rising Rising Falling Falling of Change
0-1 2-3 2-3
Information
mg/dL/min 1-2 mg/dL/min 3 or more 1-2 mg/dL/min 3 or more
mg/dL/min mg/dL/min mg/dL/min mg/dL/min
0-30 mg/dL 60-90 60-90
up or 30-60 mg/dL up 90 or more 30-60 mg/dL down 90 or more
down in 1/2 mg/dL up in 1/2 hour mg/dL mg/dL down in 1/2 hour mg/dL
hour in 1/2 hour up in 1/2 in 1/2 hour down in 1/2
hour hour
Advanced Features (continued)
Advanced Feature #2: Event Markers
Event markers let you record information that may help you and your
healthcare team better understand your glucose patterns and trends. Events
include carbohydrates (grams), insulin (units), exercise (intensity and
duration), and health (illness, stress, high/low symptoms, menstrual cycle,
alcohol). Event markers do not show on the receiver but can be downloaded
to the Dexcom Studio software. See the Dexcom G4 PLATINUM System
User's Guide for more information.
Advanced Feature #3: Advanced Alerts
To turn on any of the Advanced alerts, follow the steps below:
a. From any trend graph, press the SELECT button to get to the Main Menu.
b. Press the DOWN button to highlight Alerts. Press the
SELECT button.
Main Menu,
Alerts highlighted
c. Press the DOWN button to highlight Advanced. Press
the SELECT button.
d. Press the UP or DOWN button to highlight the
advanced feature you want to set. Press the SELECT
button.
Alerts menu,
Advanced highlighted
(1) High/Low Snooze Alerts
The High/Low Snooze alerts can be set to re-alert you when your sensor
glucose reading stays outside high or low alert level. Snooze alerts can
be set to re-alert every 15 minutes up to 5 hours. See the Dexcom G4
PLATINUM System User's Guide for more information.
Advanced menu,
High Alert setting screen,
High Snooze highlighted 15 minutes selected
Advanced Features (continued)
(2) Rise/Fall Glucose Rate Alerts
The rate alerts can be set to alert you when your sensor glucose readings
are rising (rise alert) or falling (fall alert) at 2 mg/dL or more per minute or 3
mg/dL or more per minute. See the Dexcom G4 PLATINUM System User's
Guide for more information.
Advanced menu, Rise Rate screen,
Rise Rate, On/Off
On highlighted
Rise Rate highlighted highlighted
(3) Out of Range Alert
The Out of Range alert can be set to alert you when the transmitter and
receiver are not communicating for an amount of time between 20-200
minutes. The Out of Range Symbol ( ) will be in the upper right corner
of the trend graph, and the Out of Range alert screen will show. See the
Dexcom G4 PLATINUM System User's Guide for more information.
Advanced menu, Out of Range highlighted Out of Range alert screen
Frequently Asked Questions
What are the contraindications for the Dexcom G4 PLATINUM Sensor?
• The blood glucose value from your blood glucose meter should be used
for treatment decisions, such as how much insulin you should take. The
Dexcom G4 PLATINUM System does not replace a blood glucose meter.
• The Dexcom G4 PLATINUM Sensor, Transmitter, and Receiver must
be removed prior to Magnetic Resonance Imaging (MRI), CT scan, or
diathermy treatment. The Dexcom G4 PLATINUM System has not been
tested during MRI or CT scans or with diathermy treatment, and it is
unknown if there are safety or performance issues.
• Taking acetaminophen (paracetamol) containing products (such as Tylenol)
while wearing the sensor may falsely raise your sensor glucose readings.
The level of inaccuracy depends on the amount of acetaminophen
(paracetamol) active in your body.
Should I make treatment decisions based on the results from my
Dexcom G4 PLATINUM CGM System?
No. Treatment or insulin dosing decisions should be based on the blood
glucose value from your blood glucose meter. The direction, rate of glucose
change, and trend graph on your Dexcom G4 PLATINUM System provide
additional information to help with these decisions.
Is it okay if my Dexcom G4 PLATINUM CGM Sensor glucose readings
and fingerstick blood glucose values don't match exactly?
Yes. Your sensor glucose readings are meant to be used for trending only.
Your blood glucose meter and sensor measure your glucose from two
different types of body fluids: blood and interstitial fluid. Therefore, the values
from your blood glucose meter and sensor may not match exactly.
Why can't I take any acetaminophen (paracetamol) containing
medication while I am using the Dexcom G4 PLATINUM System?
Acetaminophen (paracetamol) is a contraindication of the Dexcom G4
PLATINUM System and should not be taken while your sensor is inserted.
The Dexcom G4 PLATINUM System may read inaccurately high when you
take acetaminophen (paracetamol)-containing drugs. The level and duration
of inaccuracy may be different for each person. To understand how long
acetaminophen (paracetamol)-containing medicines may affect your body,
consult your health care provider.
Frequently Asked Questions (continued)
How do I change my high/low glucose alert levels?
Follow the below steps:
a. From any trend graph, press the SELECT button to get to the Main Menu.
b. Press the DOWN button to highlight Alerts. Press the
SELECT button.
Main Menu,
Alerts highlighted
c. Press the SELECT button to select High Alert. Or
press the DOWN button, and then the SELECT button
to select Low Alert.
Alerts menu,
High Alert highlighted
d. Use the UP or DOWN button to change alert Level.
e. Press the SELECT button to confirm changes.
How long is the warranty on the Dexcom G4
PLATINUM Transmitter?
High Alert screen,
The warranty for the transmitter is 6 months.
Level highlighted
How long is the warranty for the Dexcom G4
PLATINUM Receiver?
The warranty for the receiver is 12 months.
Dexcom, Inc. MediTech Strategic Consultants B.V.
EC REP
6340 Sequence Drive Maastrichterlaan 127-129
San Diego, CA 92121 USA NL - 6291 EN Vaals
+1.858.200.0200 Tel. +31.43.306.3320
www.dexcom.com Fax. +31.43.306.3338
0086
Outside US: Contact your local distributor
© 2013 Dexcom, Inc. All rights reserved.
LBL-011803 Rev 01 MT21931
Dexcom, Dexcom G4, Dexcom G4 PLATINUM, Dexcom Makes Sense and Dexcom Studio are either registered trademarks
or trademarks of Dexcom, Inc. in the United States and/or other countries. All other product or company names that may be
mentioned in this publication are tradenames, trademarks or registered trademarks of their respective owners.
