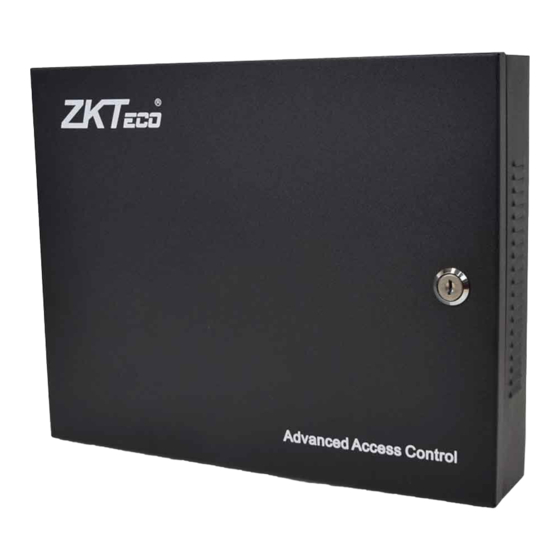

ZKTeco C3-200 Installation, Instruction And Service Manual

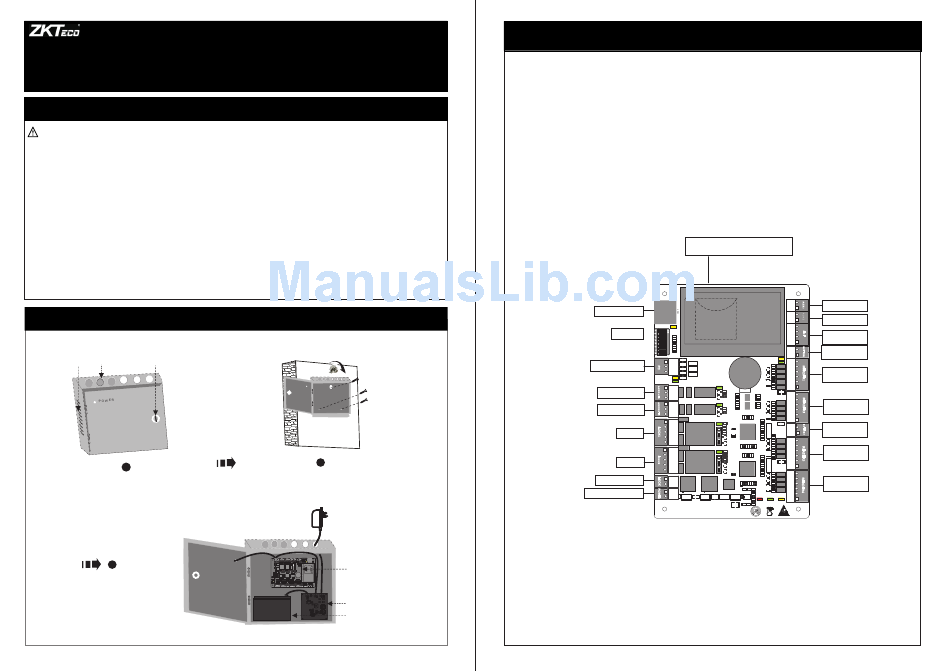

C3-200 Installation Instructions and Connection Guide

1.Cautions

Please note the following cautions. Mis-operation may lead to personal injury or
equipment failure:
1）Do not energize the system before installation is complete; never carry out
installation activities when the system is energized.
2）All peripheral devices must be grounded.
3）The conduits of wires under relay must be matched with metaled conduits, other
wires can use PVC conduits.
4）It is strongly recommended that the length of exposed part of any connection cable
should not be longer than 4 mm. Professional clamping tools may be used to avoid
unintentional contact of exposed wires to avoid short-circuit or communication failure.
5）It is recommended that card readers and buttons be installed at height of 1.4m-1.5m
above ground.
6）It is recommended to use the power supply for control panel, and external power
supply for each lock.
7）The appliance shall be installed and wired in accordance with national electrical
code and by qualified personnel only.
Description of normal working state:
Connect the system to the power supply. If the system works properly, the POWER
indicator (red) is lit constantly and the RUN indicator (green) flashes.

2.Fixed and Installation

Heat
dissipation
hole Thread hole Key hole
1
Get through the thread hole
3
Wiring the Control Panel, The Charging
Circuit Board and Backup Battery
Date: Jan. 2014
Version:1.2
Valve regulated lead-acid battery:
Constant voltage charge voltage regulation
Cycle use : 14.5V~14.9V(25)
Initial current: less than 2.88A
Standby use: 13.6V~13.8V(25)
Capacity: 12V, 7.2Ah/20hr,
Battery Type: LC-RA127R2T1
Caution:
Do not charge in a gas tight container.
Do not short the battery terminals.
Do not incinerate
Flush with water at once if contact is made with
electrolyte (Acid)
Do not attempt to disassemble the battery.
2
Fixed case
Control panel
The charging
circuit board
Backup battery

4.LED indicators, Wires, Auxiliary Input and Output

Notes:
1)Meaning of LED indicators:
LINK indicator(green): always(green) indicates TCP/IP
communication is proper;
ACT indicator(yellow): flashing indicates data is in transmitting
through TCP/IP communication.
TX indicator(yellow): flashing indicates it is sending data through
RS485 communication.
RX indicator(green): flashing indicates it is receiving data through
RS485 communication.
Auxiliary output indicator(green):always(green) indicates it is in use.
Lock indicator(green):always(green) indicates lock is open.
POWER indicator(red): always(red) indicates control panel power is on.
RUN indicator(green): flashing indicates the system works normally.
CARD indicator(yellow): flashing indicates card is punched on reader.
SD Card Interface;
Function: Backup Access Control Logs
LINK
Ethernet interface
ACT
Dip switch
Note:
Advanced Access Control
AUX Output (1-2)
connect to alarm, door
485+
bell and so on;
PC RS485 interface
485-
Port (NO,COM,NC)
GND
Electrical Parameters:
TX
RX
MAX Voltage:
NO
36V(DC)
D
Auxiliary output1 COM
MAX Current: 1.25A
NC
Note:
NO
AUX Output (1-2) D
Auxiliary output2 COM
connect way is same
NC
SEN
GND
NO
C 1
Lock
COM
NC
Note：
SEN
Lock Power Input GND
NO
C 2
Electrical Parameters:
Lock
COM
Rated Voltage: 36V(DC)
NC
Rated Current: 2A
A
Power of lock V+
Device Power Input
V-
Electrical Parameters:
A
+12V
Rated Voltage: 12V(DC) Power of control panel
GND
Rated Current: 2A
Note:
Lock(1-2):
Port (SEN)connect to door sensor single with
dry contact (no voltage);
Port (NO, COM, NC) Electrical Parameters:
MAX Voltage: 36V(DC)
MAX Current: 2A
Note:
When you select Wet mode, The power is Lock
power, Lock (1-2) total load don't more than
Lock power Rated current (2A)
Note:
Lock (1-2) connect way is same
2)Recommended use of wires：
A Use 2-conducotor power cord
B Use 6-conductor wire between wiegand reader and control panel
(RVVP 6*0.5mm) (Choose the appropriate cord for the interface
you connect, such as 6,8,10 cord.)
C Use 4-conducotor lock power cord (RVV 4*0.75mm)
D Use 2-conducotor switch power cord（RVV 2*0.5mm)
3)The auxiliary input may be connnected to infrared body detectors,
alam switches,etc.
4)The auxiliary output may be connected to door bells,alarms,etc.
Note：
AUX Input (1-2) connect to the
infrared human body induction,
wireless exit button, windows
sensor with dry contact (no
voltage);
Note：
AUX Input (1-2) connect way is
same
IN
SD card D
Auxiliary input1
GND
IN
D
Auxiliary input2
GND Note：
+12V
Output Electrical
GND
Extended Parameters:
485-
RS485 output
Rated Voltage：
485+
12V(DC)
IN
D
1# Door Button
Rated Current:
GND
TX
0.5A
RX BEEP
GLED
1# Door
WD1 B
WD0 W iegand reader
GND
+12V
BEEP
GLED
1# Door
WD1 B
WD0 W iegand reader
GND
+12V
IN
D
2# Door Button
GND
BEEP
GLED
2# Door
WD1
B
WD0 W iegand reader
GND
+12V
BEEP
GLED
2# Door
B
WD1
W iegand reader
WD0
GND
+12V
Note:
POWER RUN CARD
1、Door button (1-2) connect to Exit
button with dry contact.(no voltage);
2、Wiegand Reader (1-4) connect to
WG Reader;
Port (+12V)Output Electrical
Parameters:
Rated Voltage: 12V(DC)
Rated Current: 0.5A
Port (BEEP GLED) Output Electrical
Parameters:
Rated Voltage: 5V(DC)
Raged Current: 0.5mA
