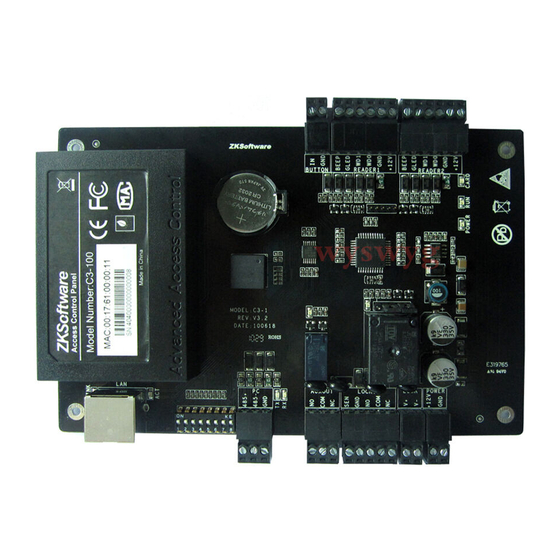

Access control panel
Hide thumbs Also See for C3-100:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Control Panel User Manual
Version: 1.2
Date: Jan., 2014
About This Manual
This manual introduces C3-100/200/400 access control panel installation connection
and user manual.

Advertisement

Table of Contents
loading

Related Manuals for ZKTeco C3-100

Summary of Contents for ZKTeco C3-100

  • Page 1 Control Panel User Manual Version: 1.2 Date: Jan., 2014 About This Manual This manual introduces C3-100/200/400 access control panel installation connection and user manual.

  • Page 2: Table Of Contents

    Contents Contents 1 Important Security Instructions..............- 1 - 1.1 Important Security Instructions..............- 1 - 1.2 Installation Cautions ................- 3 - 2 Introduction ......................- 5 - 2.1 System Function Parameters..............- 5 - 2.2 Product Technical Parameters..............- 5 - 2.3 Control Operator Panel Indicators ............- 7 - 3 Connection and Installation................- 8 - 3.1 Case Installation ..................- 8 - 3.2 Installation of Access Control Operator Panel Wires.......- 9 -...

  • Page 3: Important Security Instructions

    Important Security Instructions 1 Important Security Instructions 1.1 Important Security Instructions Read, follow and keep instructions: Before operating the equipment, read and follow strictly all security and operation instructions. Please keep the instructions in good condition for future reference. Accessories: Please use the accessories recommended by the manufacturer or delivered with the product.
  • Page 4 Control Panel User Manual If the equipment cannot work normally even though operated as instructed, please be sure to adjust only the control components specified in the operation instructions. Incorrect adjustment of other control components may cause damage to the equipment, and add to troubleshooting workload of the qualified technicians.

  • Page 5: Installation Cautions

    Important Security Instructions 1.2 Installation Cautions The conduits of wires under relay must be matched with metaled conduits, other wires can use PVC conduits, to prevent failure caused by rodent damage. Although a control panel is designed with good antistatic, lightning-proof, and leakage-proof functions, ensure its chassis and the AC ground wire are connected properly and the AC ground wire is grounded physically.
  • Page 6 Control Panel User Manual Get prepared countermeasures according to application scenarios for unexpected power failure, like selecting power supply with UPS. The connection between a card reader and a control panel should not be longer than 100m. The connection between a PC and a control panel should be shorter than 1200m for RS485 communications.

  • Page 7: Introduction

    Introduction 2 Introduction The access control management system is a new modernized security management system, which is an effective measure for security and protection management. It is mainly used to manage entrances and exits of important places, such as banks, hotels, equipment rooms, offices, smart communities, and factories.
  • Page 8 With detachable connection terminals made of alloy-steel non-magnetic flange materials. Outline dimensions of the control PCB: 160mm (length) × 106mm (width) for C3-100/200; 216mm (length) × 106mm (width) for C3-400. External box dimensions: 360mm × 285mm × 75mm. Valve regulated lead-acid battery: Constant voltage charge voltage regulation Cycle use : 14.5V~14.9V(25)

  • Page 9: Control Operator Panel Indicators

    Introduction 2.3 Control Operator Panel Indicators When the C3-100/200/400 is powered on, normally the POWER indicator (red) is lit constantly, the RUN indicator (green) flashes (indicating the system is normal), and other indicators are all off. Except the cases as follows: LINK indicator (green): indicates proper TCP/IP connection if it is lit constantly;...

  • Page 10: Connection And Installation

    Control Panel User Manual 3 Connection and Installation 3.1 Case Installation - 8 -...

  • Page 11: Installation Of Access Control Operator Panel Wires

    Connection and Installation 3.2 Installation of Access Control Operator Panel Wires 220V input RS485 network TCP/IP network communication wire communication wire C3 access control operator panel Ceiling Door sensor Electronic lock Exit button Outdoor Wiegand Indoor Wiegand card reader card reader Indoor Outdoor Figure 3-1 Access Control Operator Panel Wire Installation Diagram...

  • Page 12: Control Operator Panel System Installation

    Figure 3-2 Schematic Diagram of C3-400 System Installation Note: The diagram above takes the C3-400 for example. By contrast, only one-door two-way access is applicable to the C3-100 system; only two-door one-way or two-door two-way access is applicable to the C3-200 system.
  • Page 13 Connection and Installation The access control management system consists of two parts: management workstation (PC) and control operator panel. They communicate via TCP/IP and RS485 networks. On a 485 bus, each management workstation can be connected with up to 63 C3 control operator panels (preferably fewer than 32). The communication wires should be kept away from high-voltage wires as far as possible, and should be neither routed in parallel with nor bundled with power wires.

  • Page 14: Control Operator Panel Connection Terminals

    Control Panel User Manual 3.4 Control Operator Panel Connection Terminals C3-100 terminal connection diagram - 12 -...
  • Page 15 Connection and Installation C3-200 terminal connection diagram - 13 -...
  • Page 16 Control Panel User Manual C3-400 terminal connection diagram Descriptions of the terminals: - 14 -...

  • Page 17: Connection With Door Sensors, Exit Switches, And Auxiliary Input Devices

    The auxiliary output may be connected to alarms, cameras, door bells, etc. All the terminals mentioned above are set through relevant access control software. Please see the respective software instructions for details. Ports on the C3 control operator panel: C3-400 C3-100 C3-200 (Four-Door Functional Port (One-Door (Two-Door...
  • Page 18 Auxiliary input C3-100 provides no auxiliary input interface; C3-200 provides two, and C3-400 provides four, which are connected to infrared body detectors, smoke detectors, gas detectors, window magnetic alarms, wireless exit switches, etc. Auxiliary inputs are set through relevant access control software.
  • Page 19 Connection and Installation Figure 3-3 Connections between C3-400 and Door Sensors, Exit Switches, and Auxiliary Input Devices Note: The diagram above takes C3-400 for example. By contrast, C3-100 provides no auxiliary input interface; C3-200 provides two, and C3-400 provides four.

  • Page 20: Connection With Wiegand Readers

    Control Panel User Manual 3.6 Connection with Wiegand Readers C3-100 can connect two Wiegand readers in the one-door two-way mode. C3-200 provides four readers, which can be connected in the two-door two-way mode. C3-400 provides four readers, which can be connected in the two-door two-way or four-door one-way mode.
  • Page 21 Connection and Installation Figure 3-4 Connection between C3-400 and Readers - 19 -...

  • Page 22: Relay Output Connection

    Control Panel User Manual 3.7 Relay Output Connection C3-100 has two relays (one used as a control lock by default, and the other used as an auxiliary output); C3-200 has four relays (two used as control locks by default, and the other two used as auxiliary outputs); C3-400 has eight relays (four used as control locks by default, and the other four used as auxiliary outputs).
  • Page 23 Connection and Installation necessary to connect a diode in parallel (please use the FR107 delivered with the system) with the electronic lock to release the self-induced electromotive force during onsite connection for application of the access control system. 1. Wet mode：External power supply for NO Lock 2.
  • Page 24 Control Panel User Manual 3. Dry mode：External power supply for NO Lock 4. Dry mode：External power supply for NC Lock - 22 -...
  • Page 25 Connection and Installation 5. Dry mode：The system control the Normally Open lock use the switch value. 6. Dry mode：The system control the Normally Close lock use the switch value. - 23 -...
  • Page 26 Control Panel User Manual - 24 -...

  • Page 27: Access Control Operator Panel System Power Supply Structure

    Connection and Installation 3.8 Access Control Operator Panel System Power Supply Structure - 25 -...
  • Page 28 Control Panel User Manual An access control operator panel is powered by +12V DC. Generally, to reduce power interference between control panels, each control operator panel should be powered separately. When high reliability is required, control panels and electronic locks should be powered respectively. To prevent power failure of a control operator panel from making the whole system unable to work normally, the access control management system is usually required to have one UPS at least, and access control locks are powered externally to...

  • Page 29: Access Control Operator Panel System Networking

    Access Control Operator Panel System Networking 4 Access Control Operator Panel System Networking 4.1 Access Control Networking Wires and Wiring RS485 communication wires are made of internationally accepted shielded twisted pairs, which prove effective to prevent and shield interference. The power supply is 12V DC converted from 220V. The Wiegand readers use 6-core communication shielded wires (RVVP 6×0.5mm) (usually there are 6-core, 8-core, and 10-core types available for users to select according to the ports) to reduce interference during...
  • Page 30 Control Panel User Manual distribution). Metal hoses are applicable to ceiling wiring, but must be secure and good-looking. Shielding measures and shielding connection: If the electromagnetic interference in the wring environment is found strong in the survey before construction, it is necessary to consider shielding protection for data cables when designing a construction scheme.

  • Page 31: Tcp/Ip Network Communication

    Access Control Operator Panel System Networking 4.2 TCP/IP Network Communication The Ethernet 10/100Base-T Crossover Cable, a type of crossover network cable, is mainly used for cascade hubs and switches, or used to connect two Ethernet end-points directly (without a hub). Both 10Base-T and 100Base-T are supported. Management host Printer Card issuer...
  • Page 32 Control Panel User Manual To eliminate signal attenuation in communication cables and suppress interference, if the bus is longer than 300 meters, one 120ohm resistance is usually inserted between the first and last access control operator panels on the RS485 bus. For this access control operator panel, putting place 8 of the DIP switch to the ON position is equivalent to parallel connection of one 120ohm resistance between the 485+ and 485- lines.

  • Page 33: Dip Switch Setting (485 Address Setting, Factory Setting, And Terminal Resistance Setting)

    Access Control Operator Panel System Networking 4.4 DIP Switch Setting (485 Address Setting, Factory Setting, and Terminal Resistance Setting) 485 address setting Places 1-6 of the DIP switch are reserved to set device number for RS485 communication. The code is binary, and the lower places are in the front. When the switch is set to the ON position, it indicates 1 (on);...
  • Page 34 Control Panel User Manual Switch Setting Place Address - 32 -...
  • Page 35 Access Control Operator Panel System Networking Switch Setting Place Address Restoring factory setting The silk-screened 7 (place 7) of the DIP switch is the switch for restoration of system settings. The place is set to OFF by default. When place 7 is moved upwards and downwards for three times within 10 seconds and finally returned to the OFF position, the factory settings will be restored after the access control operator panel is restarted.
  • Page 36 Control Panel User Manual Terminal resistance setting Place 8 is for setting the RS485 termination resistance. Putting the switch to the ON position is equivalent to parallel connection of a 120ohm termination resistance between 485+ and 485-. 485 terminal resistance Restore factory setting - 34 -...
