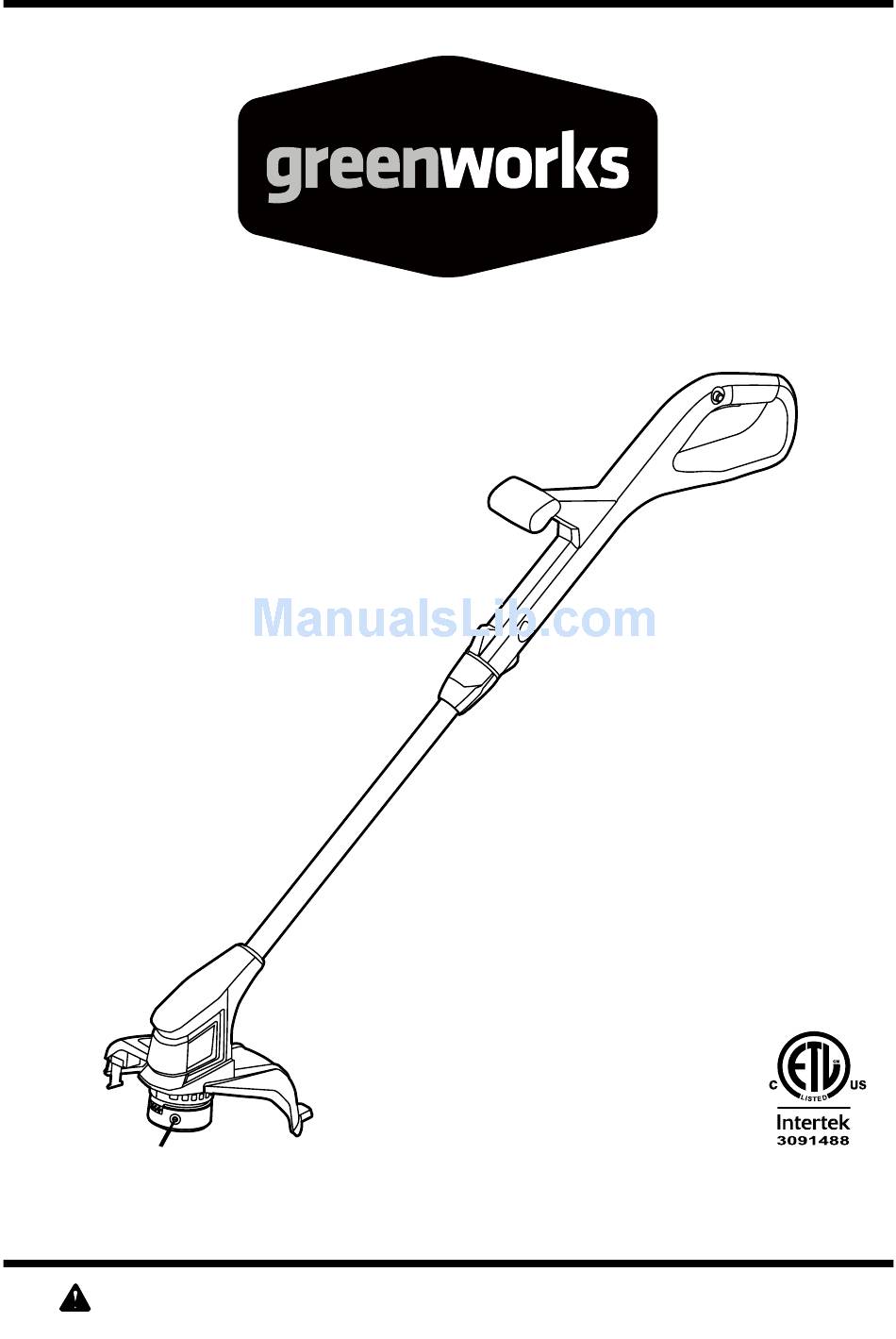

- Page 1 24V Cordless String Trimmer ST24B01 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 Important Safety Instructions ....................3 Symbols ..........................5 Know Your String Trimmer ....................7 Assembly ..........................9 Operation ........................... 1 3 Battery & Charger Maintenance..................2 0 Maintenance........................... 21 Environmentally Safe Battery Disposal .................22 Troubleshooting........................23 Warranty..........................25 Exploded View and Part List ........ -
Page 3: Important Safety Instructions
IMPORTANT SAfETY INSTRUCTIONS W A R N I N g Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Use only identical manufacturer’s replacement parts and accessories. Use of any other parts may create a hazard or cause product damage. - Page 4 IMPORTANT SAfETY INSTRUCTIONS • Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. • Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin.
-
Page 5: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYmBOL NAmE DESIgNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second) - Page 6 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYmBOL SIgNAL mEANINg DANgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 7: Know Your String Trimmer
KNOW YOUR STRING TRIMMER Fig. 1... - Page 8 KNOW YOUR STRING TRIMMER KNOW YOuR STRINg TRImmER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
-
Page 9: Assembly
ASSEMBLY uNPACKINg This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the tool carefully to make sure no breakage or damage occurred during shipping. •... - Page 10 ASSEMBLY W A R N I N g If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. W A R N I N g Do not attempt to modify this product or create accessories not recommended for use with this string trimmer.
- Page 11 ASSEMBLY ATTACHINg THE guARD (See Figure 2.) NOTE: Install the guard before the attachment is connected to the lower shaft. Invert the string trimmer to access the trimmer head. Remove the supplied screw (1) from the trimmer head with a philips head screwdriver (not included).
- Page 12 ASSEMBLY INSTALLINg THE uPPER SHAFT TO THE LOWER SHAFT (See Figure 3.) W A R N I N g Never install, remove, or adjust the lower end of the tool while the unit is running or with the battery pack installed. failure to stop the motor or remove the battery pack can result in serious personal injury.
-
Page 13: Operation
OPERATION W A R N I N g Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N g Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 14 OPERATION INSTALLINg THE BATTERY PACK (See Figure 4.) • Align raised ribs (2) on battery pack with grooves in the trimmer’s battery port. • Make sure the latch on the back of the battery pack clicks into place and that battery pack is fully seated and secure in the trimmer before beginning operation.
- Page 15 OPERATION OPERATINg THE TRImmER (See Figure 6.) W A R N I N g Always hold the string trimmer away from the body keeping clearance between the body and the string trimmer. Any contact with the string trimmer cutting head while operating can result in serious personal injury.
- Page 16 OPERATION W A R N I N g Any contact with the attachment cutting head can result in burns and/or other serious personal injury. W A R N I N g Read the safety information for safe operation when using a blade attachment and refer to the safety rules and instructions in your attachment manual.
- Page 17 OPERATION REPLACINg THE LINE (See Figure 8.) Press the tabs simultaneously on the side of the trimmer head and remove cover and spool. Cover Spool Fig. 8.1 Remove any remaining line. Clean dirt and debris from all parts. Replace spool if it is worn or damaged. Replace with a pre-wound spool, or replace line using 10 feet (3 meters) of 0.065 inch (1.65 mm) diameter line.
- Page 18 OPERATION Wind the lines clockwise around the spool simultaneously, as shown by the arrows on the spool. Fig. 9.3 Place the line in the slot on the spool flange, leaving about 6 in. ( 152 mm ) extended beyond the slot. Spool flange Fig.
- Page 19 OPERATION Reinstall the spool and cover onto the trimmer head. Push until cover snaps into place. Fig. 9.7 CuTTINg TIPS (See Figure 10.) • Keep the trimmer tilted toward the area being cut; this is the best cutting area. • The trimmer cuts when passing the unit from right to left. This will avoid throwing debris at the operator.
-
Page 20: Battery & Charger Maintenance
BATTERY & CHARGER MAINTENANCE CHECKINg BATTERY CAPACITY Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: LIGHT METRE BCI BUTTON BATTERY METRE Lights Capacity 3 Green Lights The battery is at 80-100% capacity 2 Green Lights The battery is at 50-80% capacity 1 Green Light... -
Page 21: Maintenance
Check the trigger safety system functions Visual check of the tool (no cracks or deformation) Visual check of the tool at the shaft attachment (no deformations or wear) Check the battery level Inspection of the tool by an approved Greenworks dealer... -
Page 22: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAfE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this string trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N g All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 23: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1. The battery pack is not 1. Attach the battery pack to the trimmer. attached to the trimmer. 2. No electrical contact 2. Remove battery check contact and reinstall between the trimmer and the battery pack. String trimmer battery. - Page 24 TROUBLESHOOTING Problem Cause Solution 1. Lines are welded to 1. Lubricate with silicone spray. Respool the themselves. head by following the directions in this manual. 2. Not enough line on 2. Install more line. Refer to Line spool. Replacement earlier in this manual. Lines will not advance.
-
Page 25: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 26: Exploded View And Part List
EXPLODED VIEW PARTS LIST Item No. Part No. Description 311051438 Bare tool assembly 3110382-4 Spool 3411546A-6 Spool cover 33301884 Plate 33302722-2 Cut-off blade 313031438 Guard... - Page 27 Tools P.O. Box 3130 mooresville, North Carolina 28117 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (03-25-16) Printed in China on 100% Recycled Paper...
