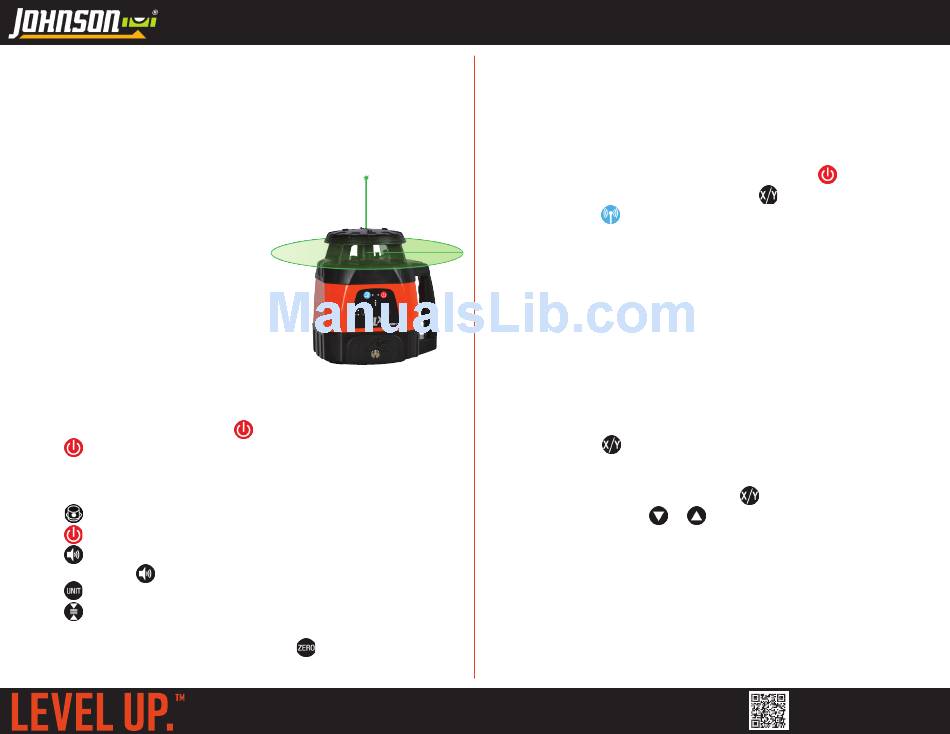

Quick Start Guide: Tracking Rotary Laser 40-6590

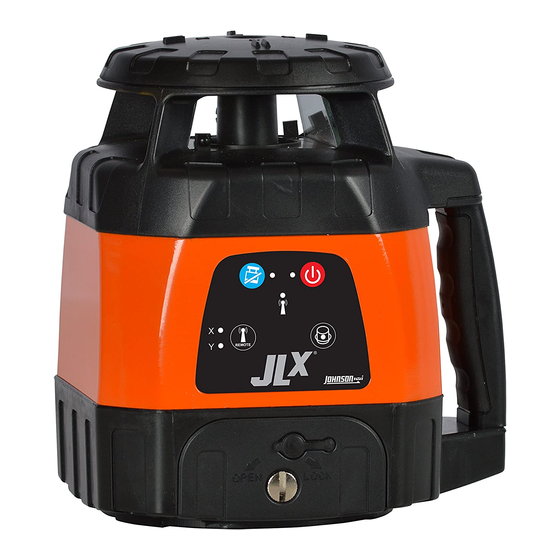

Thank you for purchasing this JLX® Tracking Rotary Laser. The JLX®
series represents Johnson's most technologically advanced tools,
designed to help you work smarter and faster. This tool features:
• Automatic tracking of the beam to the detector
• GreenBrite® technology
• Single and dual slope
• Tilt alarm
• Scan Mode
• Visual/audible out-of-level alarms
Typical Applications Include:
• Drywall track installation
• Wall framing
• Tilt-up wall installation
• Pipe and drain installation
• Orthogonal layout

GETTING STARTED

1. Insert batteries into the laser, detector, and remote.
2. Note: The laser will stop receiving remote/detector signals after
30 minutes of inactivity. Press
3. Tap to power on the laser.
In horizontal mode, the laser will self-level then begin to rotate.
In vertical mode, it will emit a plumb-down alignment laser.
Note: The laser will flash if it's beyond its self leveling range.
4. Tap to begin rotation or adjust rotational speed.
5. Tap on the detector to power it on.
6. Tap to set the detector volume level.
7. Press and hold to turn on the detector's backlight.
8. Tap to set the detector's units - mm, inches, or inches fraction.
9. Tap to set the detector's sensitivity. Sensitivity will always
display in millimeters: 1mm, 5mm, or 9mm (0.04", 0.2", 0.35").
10. To adjust the detector zero point press
when the detector is powered off. . Maximum adjustability is 0.75".
on the laser to re-enable.
. Zero offsets will clear
We want to get you up and running as quickly as possible - but this quick start guide is not a replacement for reading and understanding your
operator's manual! For complete safety & operating instructions, refer to the operator's manual included with your rotary laser, or scan the QR code.

TRACKING MODE

This laser features tracking to automatically slope the beam in either
the X or Y axis. The beam slope adjusts until the beam intersects
the detector's zero point - helpful for simplifying layout work and
connecting reference points with laser lines.
To use the rotary in tracking mode:
1. Power on the laser and the detector by pressing
2. Set your desired slope axis by pressing
3. Press and hold on the detector. The blue LED will illuminate.
4. Locate your detector's zero point over the desired target.
5. The rotary will begin to sweep through a +/-5° arc until it locates
the detector's receiving window. It will stop when it intersects the
zero point of the detector.
6. The detector's blue LED will turn off, and slope will be fixed.
7. The detector will now function like a standard laser detector. You
can locate your interim grade points without affecting the slope
of the laser.

SINGLE-AXIS SLOPE MODE

Single-axis slope mode angles the laser beam in either the X or Y
axis. If bumped, the laser will re-level and maintain slope.
1. Press and hold on the remote (not the detector) for 3
seconds to enable single-slope mode.
2. The laser's X-LED will be solid & the Y LED blinking, indicating
slope can be set for the X-axis Press
3. Use the slope buttons
adjustments, or press and hold for larger adjustment.
Pro Tip: Set a specific slope using a grade rod and detector.
1. Set the detector a known distance from the laser. Find grade.
2. Raise or lower the detector the required amount, then adjust
slope until the detector reads the beam.
3. For example, to slope 1/4" per 10', set the detector 10' from the
laser and find grade. Lower the detector 1/4" and slope the laser
beam until the detector locates the beam again.
.
on the detector.
again to toggle axes.
or to adjust slope. Tap for small
