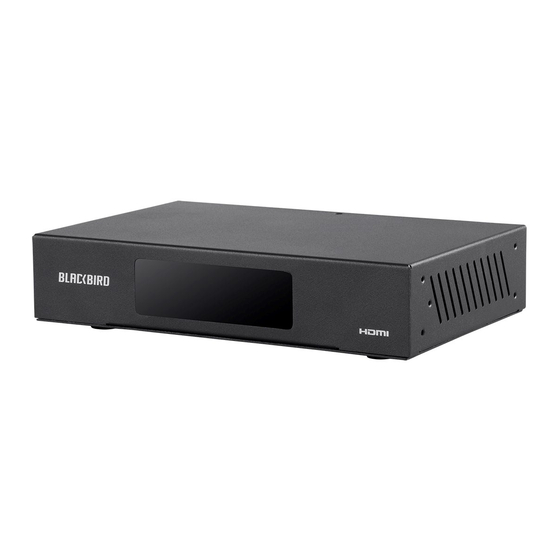

- Page 1 Blackbird™ 1x4 HDMI® Splitter for TV Walls P/N 30917 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 3 INTRODUCTION This Blackbird™ 1x4 HDMI® Splitter for TV Walls is designed to combine multiple video outputs into a single video image spanning multiple displays. The embedded video scaling system converts any input signal to the native resolution of the connected displays. It supports individual video resolutions up to 1080p@60Hz, can be cascaded up to four times, and supports video walls using up to 9 displays in a 3x3 configuration, when using two units.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 5: Product Overview
PRODUCT OVERVIEW Front Panel 1. Power LED: The LED illuminates green when the TV wall is powered on and red when it is in standby mode. 2. IR Receiver Window: Point the included IR remote control at the IR Receiver Window to control the TV wall. -
Page 6: Remote Control
4. DC 12V: DC barrel connector for connecting the included AC power adapter. Remote Control 1. Power: Press the Power button to turn the TV wall on or off. 2. Rotate: Press the Rotate button to rotate the video image 90 degrees for use with the 2x1, 3x1, and 4x1 TV wall configurations. - Page 7 SAMPLE CONNECTION DIAGRAMS 2x2 TV Wall 3x3 TV Wall...
- Page 8 TV WALL CONFIGURATIONS Single Unit Configuration (HxV) Display Orientation Layout Landscape Landscape Landscape Portrait Portrait Portrait Landscape Landscape Landscape Landscape...
-
Page 9: Technical Support
Landscape TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 10: Specifications
9.8" x 4.6" x 1.3" (250 x 118 x 32 mm) Weight 37.0 oz. (1050 g) Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
