Summary of Contents for Monoprice 30444

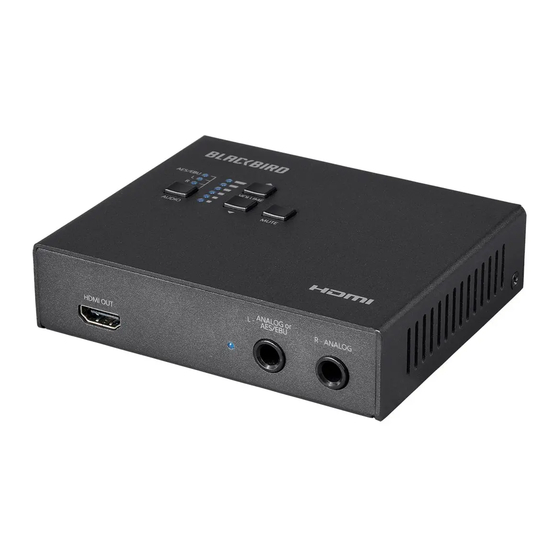

- Page 1 6G SDI to 4K HDMI® Converter with SDI Loop Out P/N 30444 User's Manual...
- Page 2 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ...
- Page 3 If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
- Page 4 PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 6G-SDI to HDMI® converter 1x AC power adapter (12 VDC, 1A)
- Page 5 2. L/R Out: 3.5mm analog stereo audio output jack. 3. HDMI Out: HDMI® output port for connecting the display. 4. Loop Out: BNC connector that carries an equalized and re-clocked SDI loop output signal. 5. SDI In: BNC connector for connecting the SDI video source. 6.
- Page 6 Congratulations, your SDI to HDMI converter is properly connected and ready for use! TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations.
- Page 7 SPECIFICATIONS Model 30444 Inputs 1x SDI (BNC) Outputs 1x HDMI®, 1x SDI (BNC), 1x 3.5mm TRS Supported SMPTE Standards ST-2081, 425M-AB, 424M, 292M, 259M-C 525/29.97 NTSC, 625/25 PAL 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, Supported SDI Formats 1080p30, 1080p50, 1080p59.94, 1080p60...
