Arctic Accelero Mono PLUS Installation Manual

Montageanleitung: www.arctic.ac/fileadmin/amp/manual_de.pdf
Guide d'installation: www.arctic.ac/fileadmin/amp/manual_fr.pdf
Manual de instalación: www.arctic.ac/fileadmin/amp/manual_es.pdf
Manual de Instalação: www.arctic.ac/fileadmin/amp/manual_pt.pdf
Installationsmanual: www.arctic.ac/fileadmin/amp/manual_se.pdf
Instalační příručka: www.arctic.ac/fileadmin/amp/manual_cz.pdf
Accessories
Screws (M2)
x 4
G-1 (Grey Compound 2 g)
x 1
Heatsinks
x 11
A
Preparation
1
Please ensure that the fan connector pin assignment on your VGA
board is in accordance with the following table.
3
4
2
4 Apply tape onto the circuit components in order to prevent short circuit Apply tape onto the circuit components in order to prevent short circuit
caused by RAM and VR heatsink interference. caused by RAM and VR heatsink interference.
6
53.2 mm - use 53.2 mm - use
51.0 mm - use 51.0 mm - use
? ?
58.4 mm - use 58.4 mm - use
43.2 mm - use 43.2 mm - use
or
Washers
x 4
G-1 (White Compound 2 g)
x 1
x 2
B
1
2
Choose the correct mounting hole size and spacers.
Mounting Hole
① ① 53.2 mm x 53.2 mm
or or
② ② 51.0 mm x 61.0 mm
or
③ ③ 58.4 mm x 58.4 mm
43.2 mm x 43.2 mm
58.4 mm x 58.4 mm
Note: This table is for reference only. Please refer to your actual VGA card holes' position during installation. Updated
information is available at amp.arctic.ac.
Telepítési kézikönyv: www.arctic.ac/fileadmin/amp/manual_hu.pdf
Instrukcja montażu: www.arctic.ac/fileadmin/amp/manual_pl.pdf
Installatiehandleiding: www.arctic.ac/fileadmin/amp/manual_nl.pdf
Руководство пользователя: www.arctic.ac/fileadmin/amp/manual_ru.pdf
RU
Manuale di installazione: www.arctic.ac/fileadmin/amp/manual_it.pdf
IT
Spacers
(2.0 mm) x 1
Mixing Wand
x 1
x 4
C
Pin No.
Pin 1
Pin 2
Pin 3
Pin 4
Not cleaning circuit components thoroughly with an eraser leads to no
3
adhesiveness of the thermal adhesive at all.
5
Appropriate Compatible Models
Spacers
2.0 mm NVIDIA GeForce:
GTS 450, 250, 240 (OEM), 150 (OEM), GT 340, 330, 320, 130 (OEM),
9800 GTX+, 9800 GTX, 9800 GT, 9600 GT, 9600 GSO 512, 9600 GSO,
8800 GTS 512 (G92), 8800 GTS (G92), 8800 GT, 8800 GS (9600GSO),
7950 GT, 7900 GTX, 7900 GT, 7900 GS, 7800 GTX 512, 7800 GTX,
7800 GT, 6800 Ultra Extreme, 6800 Ultra, 6800 GT, 6800 GS AGP, 6800,
6800 GS, 6800 AGP, 6800 XT AGP, 6800 XT, 6800 LE
AMD Radeon:
HD 7870, 7850, 6950, 6870, 6850, 6790, 5870, 5850, 5830, 4890, 4870,
4850, 4830, 3870, 3850, X1950 XTX, X1950 XT, X1950 Pro, X 1950 GT,
X1900 XTX, X1900 XT, X1900 GT, X1800 XT, X1800 XL, X1800 GTO
4.0 mm NVIDIA GeForce:
GTX 560 Ti, 560 SE, 560, 550 Ti, 460 SE, 460
4.0 mm NVIDIA GeForce:
GTX 465, 8800 GTX (G80), 8800 GTS (G80)
2.0 mm NVIDIA GeForce:
6600 GT AGP, 6600 GT, 6600 LE, 6600 DDR2, 6600
AMD Radeon:
HD 7770, 6770, 6750, 5770, 5750, 4770, 2600 XT, X1650 XT, X1650 Pro,
X1600 XT, X1600 Pro, X1550, X1300 XT, X1300 Pro, X1300
2.0 mm NVIDIA GeForce:
GTX 670

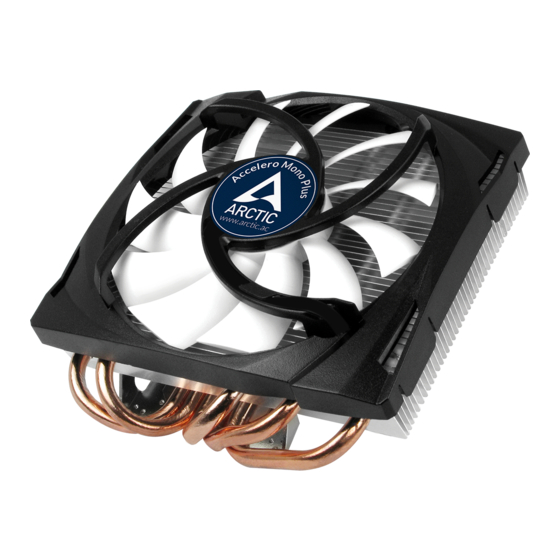

Accelero Mono PLUS
(4.0 mm) x 1
4-pin Fan
Power
x 1
Adapter
x 4
D
Main Cable Set
Color
Black
Red
Yellow
Blue
Installation Manual
Mounting Plate
(only used for HD 7770,
x 2
6770, 5770 & 5750)
VGA Bracket
x 1
x 5
E
Description
Ground
VDC
Signal
PWM
