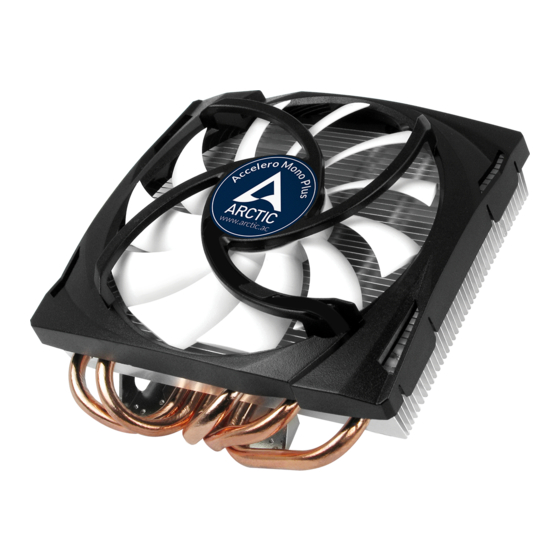

Arctic Accelero Mono PLUS Installation Manual

Accessories
Screw (M2)
x 4
Mounting Plate
4
x 2
Heatsink
x 11
A
Preparation
1
Please ensure that the fan connector pin assignment on your VGA
board is in accordance with the following table.
3
4
2
4 Apply tape onto the circuit components in order to prevent short circuit Apply tape onto the circuit components in order to prevent short circuit
caused by RAM and VR heatsink interference. caused by RAM and VR heatsink interference.
6
53.2 mm - use 53.2 mm - use
51.0 mm - use 51.0 mm - use
? ?
58.4 mm - use 58.4 mm - use
43.2 mm - use 43.2 mm - use
or
Washer (Red)
x 4
Thermal Adhesive (3 g)
x 2
B
1
2
Select the right mounting hole and corresponding spacers.
Mounting Hole
① ① 53.2 mm x 53.2 mm
or or
② ② 51.0 mm x 61.0 mm
or
③ ③ 58.4 mm x 58.4 mm
43.2 mm x 43.2 mm
58.4 mm x 58.4 mm
Note: this table is for reference only. Please refer to your own VGA card holes during installation. Updated information is
available at amp.arctic.ac
Spacer
(1.0 mm) x 4
x 1
x 4
C
Pin No.
Pin 1
Pin 2
Pin 3
Pin 4
Not cleaning circuit components thoroughly with an eraser leads to no
3
adhesiveness of the thermal glue at all.
5
Spacers Used Compatible Models
2.0 mm
NVIDIA GeForce:
GTS 450, 250, 240 (OEM), 150 (OEM), GT 340, 330, 320, 130 (OEM), 9800 GTX+,
9800 GTX, 9800 GT, 9600 GT, 9600 GSO 512, 9600 GSO, 8800 GTS 512 (G92), 8800
GTS (G92), 8800 GT, 8800 GS (9600GSO), 7950 GT, 7900 GTX, 7900 GT, 7900 GS,
7800 GTX 512, 7800 GTX, 7800 GT, 6800 Ultra Extreme, 6800 Ultra, 6800 GT, 6800
GS AGP, 6800, 6800 GS, 6800 AGP, 6800 XT AGP, 6800 XT,
6800 LE
AMD Radeon:
R9 285, R9 270X, 270, 265, HD 8870, 7870, 7850, 6950, 6870, 6850, 6790, 5870,
5850, 5830, 7890, 4870, 4850, 4830, 3870, 3850, X1950 XTX, X1950 XT, X1950 Pro,
X1950 GT, X1900 XTX, X1900 XT, X1900 GT, X1800 XT, X1800 XL, X1800 GTO
4.0 mm
NVIDIA GeForce:
GTX 560 Ti, 560 SE, 560, 550 Ti, 460 SE, 460
4.0 mm NVIDIA GeForce:
GTX 465, 8800 GTX (G80), 8800 GTS (G80)
2.0 mm
NVIDIA GeForce:
GTX 750 Ti, 750, 650Ti, 6600 GT AGP, 6600 GT, 6600 LE, 6600
DDR1, 6600
AMD Radeon:
R7 260X , HD7790, 6750, 5750, 4770, 2600 XT, X1650 XT, X1650 Pro,
X1600 XT, X1600 Pro, X1550, X1300 XT, X1300 Pro, X1300
1.0 mm NVIDIA GeForce:
GTX 650, GT 640
AMD Radeon:
R7 260, 250X, 250, 240, HD 8760, 7770, 6770, 5770
2.0 mm NVIDIA GeForce:
GTX 970, 960, 760, 670, 660Ti, 660
Accelero Mono PLUS
Installation Manual
EN
(2.0 mm) x 1
4-pin Fan Power
Adapter
x 1
x 4
D
Main Cable Set
Color Description
Black Ground
Red VDC
Yellow Signal
Blue PWM
(4.0 mm) x 1
x 5
E
