Summary of Contents for Casio DT-X100-10E
-
Page 1
DT-X100 Series Hardware Manual This document is for DT-X100 and its options.
-
Page 2: Revision History
Leaser Scanner: Wave Length, Readable width C-MOS Imager: Minimum Resolution, Readable width WLAN: Frequency, Communication Range, Output Power Bluetooth: Communication Range, Output Power Power: Operating period P.16 Ethernet Cradle/USB Cradle: USB Client Baud Rate 1.11 P.33 Product Identification is added. CASIO COMPUTER CO., LTD.
-
Page 3: Table Of Contents
3.2.6. AC adaptor（AD-S42120C） ........................24 3.2.7. AC adaptor（AD-S15050B-N5） ........................24 3.2.8. AC adaptor（AD-S60160B） ........................24 3.2.9. Battery Pack (HA-F20BAT)..........................24 3.2.10. Large-capacity Battery Pack (HA-F21LBAT)..................24 3.3 Dimensions and Weight ..........................25 3.3.1. Weight（DT-X100） ............................25 3.3.2. Dimensions(DT-X100) ..........................26 3.3.3. USB Cradle ..............................27 CASIO COMPUTER CO., LTD.
-
Page 4
4.4Connection Durability (Handheld Terminal to Battery Charger and Cradle) ..........32 5. PRODUCT IDENTIFICATION AND REFERENCE NUMBERS ..........33 6．PRECAUTIONS ........................34 (1)Operating Precautions............................34 (A) Lithium-ion Battery Pack ..........................34 (B) Others................................34 (C) About the Waterproofing/Dustproofing ......................35 (2)Storage ................................35 CASIO COMPUTER CO., LTD.
-
Page 5: Table Of Contents
No part of this document may be produced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of CASIO Computer Co., Ltd. in Tokyo Japan. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd.
-
Page 6: Overview Of The Products
AC Adaptor for USB Cradle/Ethernet Cradle/Dual AD-S42120C-N5 Battery Charger Without AC Cord AC Adaptor for Cradle-type Dual Battery Charger AD-S60160B-N Without AC Cord AC-CORD-EU AC-CODE-TW Power Cord AC-CODE-AU HA-F20BAT Battery Pack HA-F21LBAT Large-capacity Battery Pack DT-380USB-A USB Cable HA-F95HB Hand Belt CASIO COMPUTER CO., LTD.
-
Page 7: Accessories
Name Bundled in the box Remark User’s Guide Refer to DT-X100 User’s Guide AC Adaptor Option Connection Bracket Yes（one） Option screw Yes（two） Option 1.3.6. AC Adaptor/Power Cord/USB Cable Bundled in the box Name Remark User’s Guide CASIO COMPUTER CO., LTD.
-
Page 8: Battery Pack
DT-X100 Hardware Manual 1.3.7. Battery Pack Bundled in the box Name Remark User’s Guide CASIO COMPUTER CO., LTD.
-
Page 9: Options And Interfaces
HA-F21LBAT HA-F21LBAT HA-F21LBAT Battery Pack Battery Terminal Battery Pack Battery Pack Battery Pack HA-F20BAT HA-F20BAT HA-F20BAT HA-F20BAT HA-F21LBAT HA-F21LBAT HA-F21LBAT HA-F21LBAT Dual Battery Dual Battery Dual Battery Charger Charger Charger HA-F32DCHG HA-F32DCHG HA-F32DCHG AC adaptor AD-S42120B CASIO COMPUTER CO., LTD.
-
Page 10: Hardware Specifications
Maxx. 40mm （ depth 550mm ） Daylight for scannin 50000Lux or less UPC-A/UPC-E/EAN8(JAN8)/EAN13(JAN13)/Codabar(NW-7)/Code39 Interleaved2of5(ITF)/MSI/Industrial2of5/Code93/Code128(EAN128) /IATA/GS1 DataBarOmnidirectional(RSS-14)/GS1 DataBarLimited(RSS Readable Barcode Limited)/GS1 DataBar Expanded(RSS Expanded)/GS1 DataBar symbologies Stacked(RSS-14 Stacked)/GS1 DataBar Expanded Stacked(RSS Expanded Stacked)/GS1 DataBar Truncated/GS1 DataBar Stacked Omnidirectional(RSS-14 Stacked Omnidirectional) CASIO COMPUTER CO., LTD.
-
Page 11
The LCD panel employed in this product uses high precision and substantial number of components which commonly cause a small number of the pixels not to light or to remain lit all the time. This is due to the characteristics of LCD panel yield in accuracy over 99.99% and permissible CASIO COMPUTER CO., LTD.
-
Page 12
802.11b/g/n : 5MHz(11n is 2.4GHz range） Channel band width 802.11a/b/g/n： 20MHz Other feature Roaming among Access-Points 802.11a:14dBm(maximum) 802.11b:20dBm(maximum) Output power 802.11g:15dBm(maximum) 802.11n:14dBm(maximum) Security WEP(64/128bit), WPA, WPA2 WPA encrypted method TKIP, AES Authorize method PSK, EAP-TLS, PEAP-MSCHAP-V2 CASIO COMPUTER CO., LTD.
-
Page 13
Frequency Hopping Spread Spectrum ("FHSS") Modulation type GFSK(1MbpS), Π/4-dqpsk(2Mbps), 8-DPSK(3Mbps) Emission Designation F1D, G1D Frequency range 2.4000 to 2.4835GHz Communication range Approx.3m Number of channels Channel spacing 1MHz Channel band width 1MHz Output power Max. 4dBm (PowerClass2) CASIO COMPUTER CO., LTD.
-
Page 14
Signal Description Direction D ＋ USB D＋ IN/OUT D － USB D－ IN/OUT USB_ID Switch-over between USB host and USB client V BUS Power from USB cradle V CRADLE Power supply / Charge to the terminal CASIO COMPUTER CO., LTD.
-
Page 15
Approx. 5.5 hours - At room temperature - Battery pack is being installed in the Approx. 4 days (for fully charged Memory backup terminal. battery charge period level) - At room temperature. CASIO COMPUTER CO., LTD.
-
Page 16: Ethernet Cradle/usb Cradle
Signal Description Direction D ＋ USB D＋ IN/OUT D － USB D－ IN/OUT USB_ID Switch-over between USB host and USB client V BUS Power from USB cradle V CRADLE Power supply / Charge to the terminal CASIO COMPUTER CO., LTD.
-
Page 17: Cradle-type Battery Charger
Powar supply and data Input Current DC5V 1.6A （ Max ） AC Adaptor input transfer currnet Plug type EIA J RC-5320A Catego ly 3 Center Plus AC Ada ptor AD-S1 5050B Termin al layout Current Terminal GND CASIO COMPUTER CO., LTD.
-
Page 18: External Views

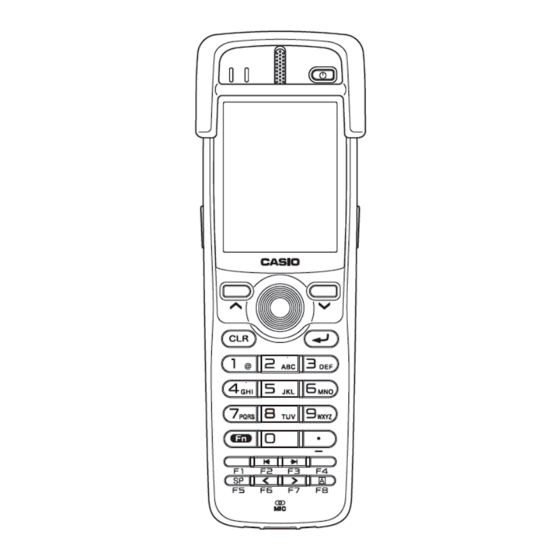

P.18 DT-X100 Hardware Manual 3.2. External Views 3.2.1. DT-X100 CASIO COMPUTER CO., LTD.
-
Page 19
Used to lock the battery cover and to release. 25 Battery Pack Cover Used to cover the battery compartment that holds the battery pack inside. 26 Mount Holes These holes hold the terminal seating in the optional USBCradle or in the Ethernet Cradle. CASIO COMPUTER CO., LTD.
-
Page 20: Ethernet Cradle/ Usb Cradle
This LED indicates the power status and the mounting status of the DT-X7. Off: Power off 12 Power LED Green: Power on, DT-X100 mounted correctly Red: Power on, DT-X100 not mounted Mount Hooks Use these hooks to lock the DT-X100 into the Ethernet cradle. （HA-F60IOA/HA-F62IOA only） CASIO COMPUTER CO., LTD.
-
Page 21: Cradle-type Battery Charger
Power is supplied to the DT-X100 via these contacts. This LED indicates the power status and the mounting status of the Handheld Terminal. Power LED Off: DT-X100 is not installed Green: Power on, DT-X100 mounted correctly CASIO COMPUTER CO., LTD.
-
Page 22: Dual Battery Charger
Used to connect multiple Dual Battery Chargers to each other. Connection Port Connection Bracket The connection bracket attaches here when you connect multiple Attachment Holes Dual Battery Chargers to each other. Power Contacts Power is supplied to the terminal via these contacts. CASIO COMPUTER CO., LTD.
-
Page 23: Cradle-type Dual Battery Charger
Charger Connection Port each other. Connection Bracket The connection bracket attaches here when you connect Attachment Holes multiple Cradle-type Dual Battery Chargers to each other. Power Contacts Power is supplied to the terminals via these contacts. CASIO COMPUTER CO., LTD.
-
Page 24: Ac Adaptor（ad-s42120c
P.24 DT-X100 Hardware Manual 3.2.6. AC adaptor （ AD-S42120C ） 3.2.7. AC adaptor （ AD-S15050B-N5 ） 3.2.8. AC adaptor （ AD-S60160B ） 3.2.9. Battery Pack ( HA-F20BAT ) 3.2.10. Large-capacity Battery Pack (HA-F21LBAT) CASIO COMPUTER CO., LTD.
-
Page 25: Dimensions And Weight
P.25 DT-X100 Hardware Manual 3.3 Dimensions and Weight 3.3.1. Weight （ DT-X100 ） Model Weight Remark DT-X100-10E Approx. 175g with Battery Pack and Protecter installed DT-X100-20E Approx. 175g with Battery Pack and Protecter installed CASIO COMPUTER CO., LTD.
-
Page 26: Dimensions(dt-x100)
P.26 DT-X100 Hardware Manual 3.3.2. Dimensions(DT-X100) CASIO COMPUTER CO., LTD.
-
Page 27: Usb Cradle
Approx. 50 x 75 x 30mm Approx. 50 x 111 x 31mm Not including AC Cord Weight Approx. 165ｇ Approx.275ｇ AD-S60160B Remark Dimensions （ W*D*H mm ） Approx. 60 x 122 x 34 mm Not including AC Cord Weight Approx. 368ｇ CASIO COMPUTER CO., LTD.
-
Page 28: Battery Pack
P.28 DT-X100 Hardware Manual 3.3.9. Battery Pack HA-F20BAT HA-F21LBAT Remark Dimensions （ W*D*H mm ） Approx. 36 x 55 x 9 mm Approx. 36 x 55 x 14 mm Weight Approx. 28 ｇ Approx. 46 ｇ CASIO COMPUTER CO., LTD.
-
Page 29: Quality References
Compatible with the temperature range for the Operation terminal during discharge, or Humidity with that of the battery chargers during charge. Compatible with the Non-operation temperature range for the terminal Dust and water-splash proof Not applicable CASIO COMPUTER CO., LTD.
-
Page 30: Electrical Performances
Output current 0 to 3500mA 0 to 3000mA 0 to 3700mA 47Hz～63Hz 47Hz～63Hz 47Hz～63Hz Input frequency Output voltage rage 11.4V～12.6V 4.75V～5.25V 15.2V～16.8V 4.2.6. Battery Pack Item HA-F20BAT HA-F21LBAT Remark/Condition Rated Capacity 1100mAh 1880mAh Rated Voltage 3.7V 3.7V CASIO COMPUTER CO., LTD.
-
Page 31: Mechanical Performances
1 cycle on each of 6 faces onto P-tile surface. Drop Durability 100cm （Test criteria, not guaranteed） Note: The drop durability height is a measured value resulting from actual testing. It does not necessarily guarantee the product from damage. CASIO COMPUTER CO., LTD.
-
Page 32: Connection Durability (handheld Terminal To Battery Charger And Cradle)
Note that subjecting the cradle to impacts or strong vibration could dislodge the handheld terminal. Also, place the cradle on a flat, level surface and take care when placing the handheld terminal in or removing it from the cradle. CASIO COMPUTER CO., LTD.
-
Page 33: Product Identification And Reference Numbers
5 digits (reserved by the manufacture) digit Production month of the year (1 to 9, A, B, C) Production year (last digit only) Model number (two digits in alphanumeric) KR : DT-X100-10E KS : DT-X100-20E CASIO COMPUTER CO., LTD.
-
Page 34: 6．precautions
6. Take care when using chemicals. 7. Applying thinners, gasoline, kerosene, solvents or oils, or substances such as cleaners, adhesives, paints, medications or toiletries that contain those materials, to the plastic case or cover may cause discoloration or other damage. CASIO COMPUTER CO., LTD.
-
Page 35: (c) About The Waterproofing/dustproofing
CASIO cannot be held liable for compensation for any damage to internal components (battery, recording media, etc) or for the costs of recorded content or the recording thereof. ・ CASIO COMPUTER CO., LTD. accepts no other liability whatsoever for any accident that occurs due to water leakage. ・ Be careful the use in the rain.
-
Page 36
P.36 DT-X100 Hardware Manual 7．Maintenance There are no parts for exchanging and checking regularly. 8．Setup and Installation Adhere to the notes, perform the appropriate setup and operation. CASIO COMPUTER CO., LTD.
-
Page 37
This software and manual can be used only under license agreement for this product — CASIO COMPUTER CO., LTD. accepts no other liability whatsoever for any accident that occurs due to the results from the use of this software and manual.
