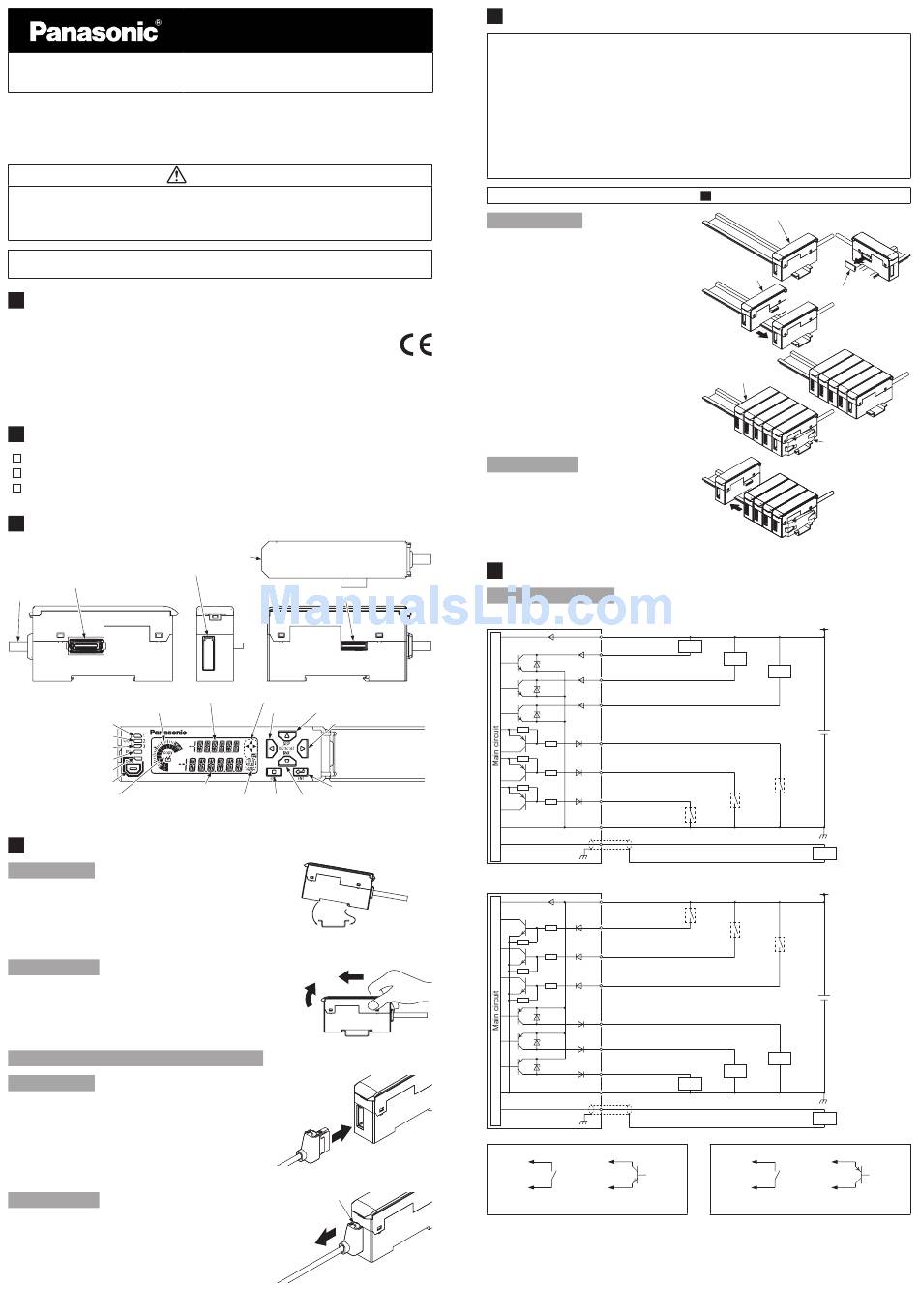

Panasonic HG-SC Instruction Manual

Contact-Type Digital Displacement Sensor / Controller
Thank you very much for purchasing Panasonic products. Read this Instruction Man-
ual carefully and thoroughly for the correct and optimum use of this product. Kindly
keep this manual in a convenient place for quick reference.
● Never use this product as a device for personnel protection.
● When using devices for personnel protection, use products that meet the laws
and standards for personnel protection that apply in each region or country, such
as OSHA, ANSI and IEC.
This document provides a brief summary of mounting, wiring, and other related information.
For detailed information, refer "our web site (http://panasonic.net/id/pidsx/global)".
1 STANDARDS AND REGULATIONS
● This product conforms to the standards and regulations below.
<European Directives>
EMC Directive
● Contact for CE
Panasonic Marketing Europe GmbH Panasonic Testing Center
Winsbergring 15, 22525 Hamburg,Germany
2 CONTENTS OF PACKAGE
Controller
Instruction Manual (English / Japanese, Chinese / Korean)
General Information for Safety, Compliance, and Instructions (23 languages) 1 pc.
3 DESCRIPTION OF PARTS
Digital display / operation cover
Sensor head connection cable connector
Female connector
(Note)
Digital display / SUB (Green)
Circle meter (Orange, Green)
Output 1 indicator (Orange)
Output 2 indicator (Orange)
Output 3 indicator (Orange)
Input indicator (White)
Preset indicator (Green)
Preset key
Digital display / MAIN (White)
Copy checkmark (Orange) Status mark (White)
Note: Not included on the slave unit / Wire-saving type HG-SC113.
4 MOUNTING
How to mount
1. Fit the rear part of the mounting section of the
controller on a DIN rail.
2. Press down the rear part of the mounting sec-
tion of the unit on the DIN rail and fit the front
part of the mounting section to the DIN rail.
How to remove
1. Push the controller forward.
2. Lift up the front part of the controller to remove
it.
Connecting the sensor head connection cable
How to mount
1. Insert the sensor head connection cable into
the connector for the sensor head connection
cable on the controller.
Note: Insert the connector firmly. Risk of sensor head or controller damage if not completely connected.
How to remove
1. Grasp the controller, and while pressing on
the release lever on the connector of the sen-
sor head connection cable, pull the cable to-
ward you to disconnect.
Note: Do not pull by holding the cable without pressing the release lever, as this can cause cable break or connector break.
INSTRUCTION MANUAL
HG-SC□
MJE-HGSC No.0056-01V
WARNING
Male connector (Slave unit only)
Guide mark (White)
LEFT key UP key
RIGHT key
ENTER key
EXIT key DOWN key
2. Press
1. Insert
35mm width DIN rail
1. Press forward
2. Lift
1. Insert
Release lever
1. Pull out
5 CONNECTING SLAVE UNITS
● Always shut off the power before connecting a slave unit to or disconnecting a
slave unit from the master unit. Risk of controller damage if you attempt connec-
tion with the power ON.
● Insert the male connector firmly into the female connector. Risk of controller
damage if not completely connected.
● To connect units, the units must be mounted on a DIN rail. Attach end plates
MS-DIN-E (optional) so as to enclose the connected units at the ends.
● Up to 15 slave units can be connected per master unit. (When communication
unit consolidated: up to 14 slave units)
● When connecting slave units to a master unit, connect only NPN output types, or
only PNP output types. Dissimilar output types cannot be connected together.
To mount or remove a controller, refer to "
How to connect
1. Mount one master unit on the DIN
rail.
2. Remove the connector cover.
3. Mount each slave unit one at a time
on the DIN rail. Remove all connec-
tor covers except for the cover on
the last end slave unit.
4. Slide each slave unit and connect
the female and male connectors.
5. Attach end plates MS-DIN-E (op-
tional) with the flat side facing in so
as to enclose the connected units
at the ends.
6. Tighten the screws to fasten the
end plates.
1 pc.
How to remove
1 pc. each
1. Loosen the screws on the end
plate.
2. Remove the end plate.
3. Slide and remove the controllers,
one at a time.
6 I/O CIRCUIT DIAGRAMS
Input circuit diagrams
● NPN output type
● PNP output type
*S1
Non-voltage contact or NPN open collector transistor
0 to +1.2V DC: Valid
+8V to +V DC or open: Invalid
Notes: 1) The HG-SC111□ and HG-SC112□ cables do not have +V or 0V. Power is supplied from the connector of the
master unit.
2) The HG-SC112□ cables do not have analog current output or analog ground.
3) Use shielded wire for the analog output.
MOUNTING".
4
Slave unit
End plate
MS-DIN-E (Optional)
Slide
(Brown) + V (Note 1)
Load
(Black) Output 1
Load
(White) Output 2
(Black / Gray) Output 3
(Pink) External input 1
(Violet) External input 2
(Pink / Violet) External input 3
*S1
(Blue) 0V (Note 1)
(Gray) Analog current output (4 to 20mA) (Note 2)
AGND (Shielded) Analog ground (Note 2, 3)
(Brown) + V (Note 1)
*S2
(Pink) External input 1
(Violet) External input 2
(Pink / Violet) External input 3
(Black) Output 1
(White) Output 2
(Black / Gray) Output 3
Load
Load
(Blue) 0V (Note 1)
(Gray) Analog current output (4 to 20mA) (Note 2)
AGND (Shielded) Analog ground (Note 2, 3)
*S2
Non-voltage contact or PNP open collector transistor
or
+4V to +V DC: Valid
0 to +0.6V DC or open: Invalid
Master unit
Connector cover
Slide
End plate
MS-DIN-E (Optional)
+ V
Load
+
24V DC ±10%
–
*S1
*S1
0V
Load (250Ω MAX.)
+ V
*S2
*S2
+
24V DC ±10%
‒
Load
0V
Load (250Ω MAX.)
or
