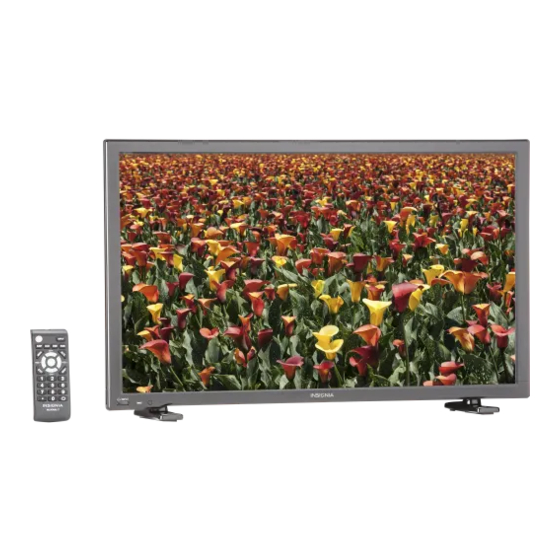

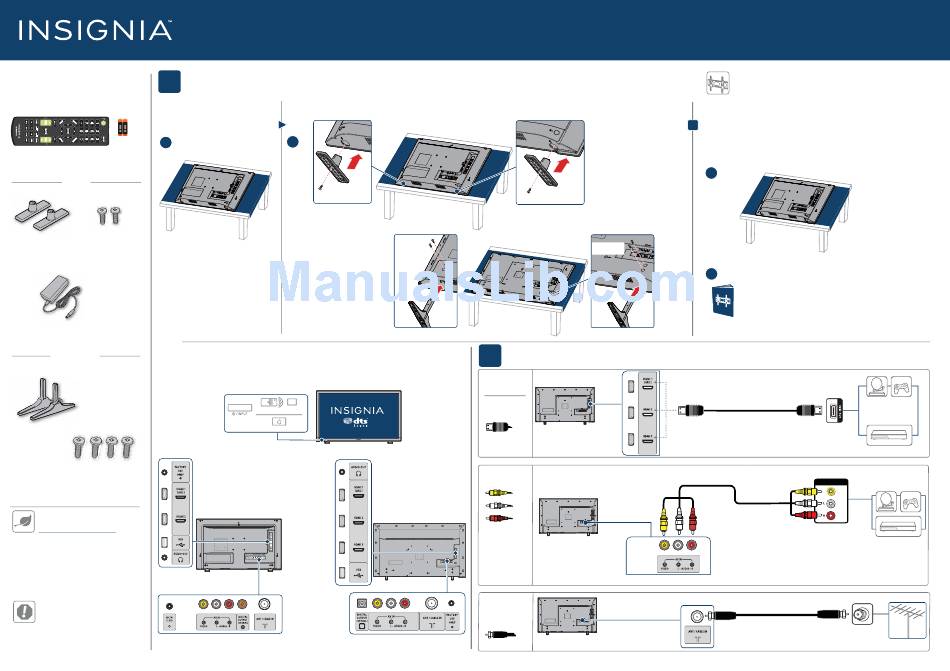

Insignia NS-24D510NA17 Quick Setup Manual

START HERE
INCLUDED ACCESSORIES
1
How do I attach the stands to my TV? (not for wall mounting)
Remote control and
You'll need: Soft surface and Phillips screwdriver
two AAA batteries
A Place your TV face-down on a
cushioned, clean surface.
+ +
A
24"
M4 screws
TV stands
(16 mm length)
(24" shown)
(2 pcs.)
Power adapter
FEATURES
39" / 50"
TV stands
M4 screws
(8 mm length)
(4 pcs.)
FIND YOUR USER GUIDE ONLINE!
On a computer, go to
www.insigniaproducts.com, enter
your model in the search box, then
press ENTER.
Next to Features, click Support &
Downloads, then next to User
Manual, click the language you
want.
STOP
Do not plug your adapter or cord in
until all other devices have been
connected.
Before using your new product, please read these
instructions to prevent any damage.
B Make sure that the arrows on the bottoms of the stands point toward the front of the TV. Align the screw holes on the TV stands
with the holes on the bottom of your TV, then secure each stand with the provided screw(s).
B
24"
M4 x 16 mm screw
39" / 50"
(39" shown)
24" shown
Remote control sensor
Power/INPUT
button
Power indicator
Note: The 39" does not have
an HDMI 3 jack.
24"
M4 x 16 mm screw
M4 x 8 mm
screws
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player or game console?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
AV
(GOOD)
COAXIAL
(GOOD)
39"/50"
Quick Setup Guide
|
NS-24D510NA17/NS-39D310NA17/NS-50D510NA17
24" 1080p / 39" 720p / 50" 1080p 60Hz LED TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
OR
B See the instructions that came with your wall-mount for more information
about which screws to use and how to correctly mount your TV.
A
M4 x 8 mm
screws
B
Your TV has four VESA mounting holes on the back. If you attach a wall-mount
bracket to the back of your TV, the bracket must be securely attached, using
all four holes. If you do not use all four mounting holes, your TV may fall and
cause property damage or personal injury. See the documentation that came
with your wall-mount for complete mounting instructions.
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack.
However, certain devices must be connected to the HDMI 1 (ARC) jack.
See the instructions that came with your device for more information.
Note: The 24" and 39" models do not have an HDMI 3 jack.
24"
AUDIO/VIDEO OUT
CABLE
