QUICK SETUP GUIDE

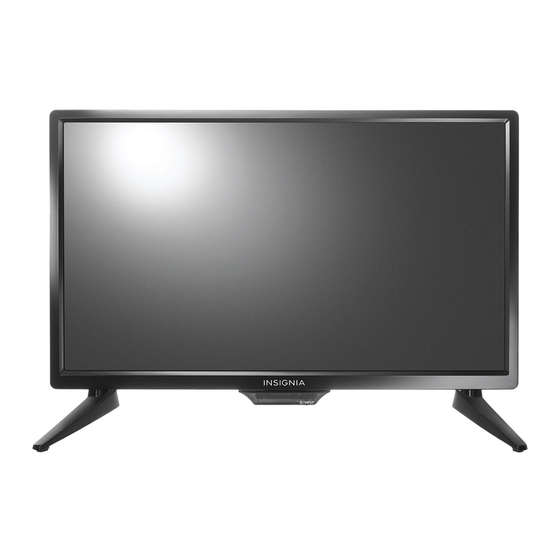

19"/24" 720p
60Hz LED TV
NS-19D310NA19 / NS-24D310NA19
INCLUDED ACCESSORIES
Remote control and two AAA batteries
C
M
Y
CM
MY
TV stands
CY
CMY
K
M3 screws (14 mm length) (2 pcs.)
FIND YOUR USER GUIDE ONLINE!
1 Go to www.insigniaproducts.com.
2 Use the search bar to find NS-19D310NA19
or NS-24D310NA19.
3 Select Support & Downloads.
4 Next to User Guide, select the language you want.
STOP
Do not plug your power cord in until all
other devices have been connected.
Before using your new product, please read these instructions to prevent any damage.
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
Place your TV face-down on a cushioned, clean surface.
Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each stand
to your TV with one of the provided screws.
19" TV shown
M3 screws (14 mm length)
FEATURES
19" 24"
Remote control sensor
Power / Input button
19" TV shown
Note: Images do not necessarily represent the exact design of your television.
Before you mount your TV, make sure that:
A
B
OR
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player,
game console, or tablet?
HDMI
(BEST)
19" 24"
Best video quality
Multi-purpose jacks: You can plug any device that uses HDMI into either HDMI jack. However, certain
devices must be connected to the HDMI 1 (ARC) jack. See the instructions that came with
your ARC device for more information.
19" TV shown
AV
(GOOD)
19" 24"
19" TV shown
COAXIAL
(GOOD)
19" 24"
19" TV shown
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
• You remove the stand legs
• The bracket supports the weight of your TV.
Carefully place your TV face-down on a cushioned, clean surface.
See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
NS-19D310NA19
VESA Mounting Pattern
A
VESA mount(mm):75 x 75 - M4 type screws
NS-24D310NA19
VESA Mounting Pattern
VESA mount(mm):100 x 100 - M4 type screws
Your TV has four VESA mounting holes on
the back. If you attach a wall-mount
B
bracket to the back of your TV, the bracket
must be securely attached, using all
four holes. If you do not use all four
mounting holes, your TV may fall and
19" TV shown
cause property damage or personal injury.
See the documentation that came with
your wall-mount for complete mounting
instructions.
WHICH CABLES DO YOU HAVE?
AUDIO/VIDEO OUT
