INCLUDED ACCESSORIES
Remote control and two AAA batteries
+ +
TV stand
TV stand screws:
ST4 screws (15 mm length) (4 pcs.)
Power cord
C
M
Y
CM
MY
Wall Mount screws:
CY
M4 screws (10 mm length) (4 pcs.)
CMY
K
WHAT YOU NEED
(not included)
Phillips screwdriver
Wireless router* Internet connection*
(needed for streaming) (needed for streaming)
*Subscription or other payment
may be required to access certain
content.
FIND YOUR USER GUIDE ONLINE!
On a computer, go to
www.insigniaproducts.com, enter your
model in the search box, then press ENTER.
Next to Features, click Support &
Downloads, then next to User Manual, click
the language you want.
STOP
Do not plug your power cord in until all
other devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver.
A Carefully place your TV face-down on a B Align the TV stand with the screw holes on the bottom of your TV, then secure the stand to your TV with
cushioned, clean surface.
the four provided screws.
B
A
FEATURES
Remote control sensor
Power indicator
HDMI1
ANT/
AC IN HDMI3 HDMI2
CABLE IN
ST4 screws (15 mm length)
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player, game console, or tablet?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
HDMI1
HDMI3 HDMI2
AV
(GOOD)
COAXIAL
(GOOD)
CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
3
USING DIGITAL AUDIO OR ANALOG AUDIO
Quick Setup Guide

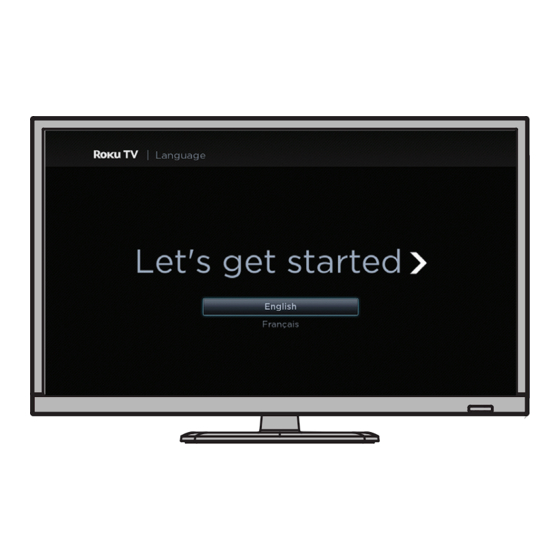

24" 720P, 60Hz, LED Roku TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
B See the instructions that came with your wall mount for
OR
more information about how to correctly mount your TV.
A
Your TV has four VESA mounting holes on the back. If you attach a
B
wall-mount bracket to the back of your TV, the bracket must be securely
attached, using all four holes. If you do not use all four mounting holes,
your TV may fall and cause property damage or personal injury. See the
documentation that came with your wall mount for complete mounting
instructions.
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the ARC jack. See the instructions that came with your
ARC-enabled device for more information.
AUDIO/VIDEO OUT
ANT/
CABLE IN
ANALOG AUDIO
OR
OPTICAL
INPUT
Note: See the instructions that came
with your speakers for more information.
DIGITAL AUDIO
V2
FINAL
FOR PRINT
|
NS-24DR220NA18
CABLE
SOUNDBAR
