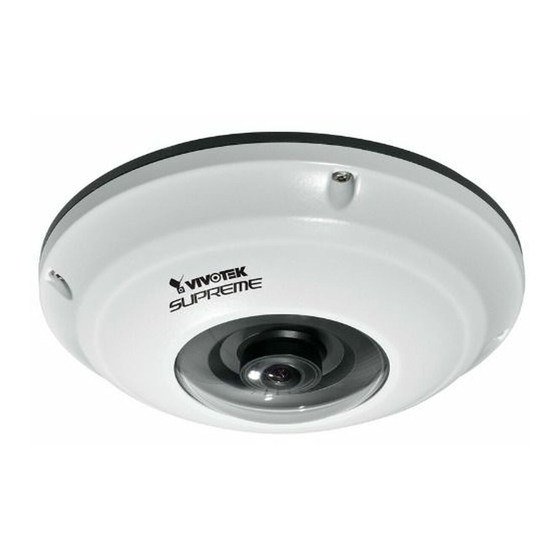

FE8174V
User's Manual
5MP • 360º Surround View • Vandal-proof • PoE
Fixed Dome
Network Camera
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FE8174V and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek FE8174V

Summary of Contents for Vivotek FE8174V

  • Page 1 FE8174V Fixed Dome Network Camera User’s Manual 5MP • 360º Surround View • Vandal-proof • PoE Rev. 1.0...

  • Page 2: Table Of Contents

    Accessing the Network Camera  21 Using Web Browsers ............................. 21 Using RTSP Players ............................24 Using 3GPP-compatible Mobile Devices ....................... 25 Using VIVOTEK Recording Software ......................26 Main Page  27 Client Settings  39 H.264 / MPEG-4 Media Options ........................39 H.264 / MPEG-4 Protocol Options .......................
  • Page 3 Applications > DI and DO ..........................120 Applications > Tampering detection ........................120 Applications > Audio detection ......................... 121 Applications > VADP (VIVOTEK Application Development Platform) ............... 123 Recording > Recording settings ........................125 Local storage > SD card management ....................... 130 SD card staus ..............................

  • Page 4: Overview

    As with all VIVOTEK true day/night cameras, the FE8174/74V features a removable IR-cut filter, maintaining clear images 24 hours a day. FE8174V’s IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions;...

  • Page 5: Read Before Use

    Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ FE8174V - the Network Camera ■ Power & I/O Cables ■ Mounting plate / Screwdriver ■ Quick Installation Guide ■...

  • Page 6: Physical Description

    VIVOTEK Physical Description Inner View Contacts for Internal Microphone (B Lens Spring Contacts (A) Align (B) to (A) when attaching the dome cover Header (J6) Ethernet 10/100 RJ45 Socket Header (J7) Status LEDs Reset Button MicroSD/SDHC/SDXC Card Slot 6 - User's Manual...
  • Page 7 VIVOTEK Outer View IP66-rated Vandal-proof Dome Cover Built-in Microphone IMPORTANT: 083236 Record the MAC address under the camera base before installing the camera. Item LED Status Description Steady Power on and system booting LED off Powered off Steady + blinking Green every 1 sec.

  • Page 8: Hardware Reset

    VIVOTEK DI/DO Diagram Please refer to the following illustration for the connection method. Camera Power Camera Power Switch Switch Input Input Max. Output Output BJT transistor BJT transistor Relay Relay Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation.

  • Page 9: Hardware Installation

    VIVOTEK Hardware Installation Opening Dome Cover First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
  • Page 10 VIVOTEK Connecting RJ45 Ethernet Cable RJ45 Cable Dimension (unit: mm) Rubber Seal Plug Recommended cable gauge: 5 to 8mm Assembly Steps 1. Drill a hole on the rubber seal plug and insert an Ethernet cable through the opening. 2. Strip part of the sheath from the Ether- net cable.
  • Page 11 VIVOTEK Mounting Positions Refer to the diagram on the right for the mounting hole positions and the dimensions of the base plate. Camera Base Plate Mounting Positions Camera Mounting Plate Mounting Positions User's Manual - 11...
  • Page 12 VIVOTEK Ceiling/Wall Mount without Mounting Plate (Choose this mounting type if you want to feed the cables form the bottom of the camera) 1. Attach the supplied alignment sticker for camera base to the ceiling/wall. 2. Using the three circles on the sticker, drill three pilot holes into the ceiling. Then hammer the three supplied plastic anchors into the holes.
  • Page 13 VIVOTEK Ceiling/Wall Mount with Mounting Plate (Choose this mounting type if you would like to feed the cables form the side) 1. Attach the supplied alignment sticker for the supplied mounting plate to the ceiling/wall. 2. Using the three circles on the sticker, drill three holes into the ceiling. Then hammer the three supplied plastic anchors into the holes.
  • Page 14 VIVOTEK You may also use the diagonal holes on the mounting plate, marked as A, B, or C, to install the camera to a U.S. standard 4 in. junction box. 14 - User's Manual...

  • Page 15: Network Deployment

    VIVOTEK Network Deployment Setting up the Network Camera over the Internet There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static...
  • Page 16 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port for- warding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
  • Page 17 VIVOTEK Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN configuration on page 69 for details. Internet connection via PPPoE (Point-to-Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line.
  • Page 18 VIVOTEK General Connection (without PoE) 1. If you have external DI devices, make the connection from general I/O terminal block. 2. Ethernet, power and IO cables are user-supplied. 3. Connect DC power cord to a DC Adapter, and then to a power outlet.

  • Page 19: Software Installation

    After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera.

  • Page 20: Ready To Use

    VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

  • Page 21: Accessing The Network Camera

    3. The live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
  • Page 22 VIVOTEK NOTE: For Mozilla Firefox users, your browser will use Quick Time to stream live video. If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser.
  • Page 23 VIVOTEK NOTE: 1. By default, your Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to configure a password for your camera later. For more information about how to enable password protection, please refer to Security on page 88 .

  • Page 24: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC Player 1. Launch the RTSP player. 2. Choose File > Open URL. A URL dialog box will prompt.

  • Page 25: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.

  • Page 26: Using Vivotek Recording Software

    VIVOTEK Using VIVOTEK Recording Software The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or...

  • Page 27: Main Page

    VIVOTEK Main Page This chapter explains the screen elements on the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window. VIVOTEK logo Resize Buttons Configuration Area...
  • Page 28 VIVOTEK IMPORTANT: The Local dewarp function is designed for use with 3rd-party software that did not implement the dewarp plug-ins. A video stream can be dewarped on the camera into a regional or panoramic view before being sent to the client side. However, since the video has already been dewarped into a more viewable rectilinear view, you can not exert PTZ control or change the view angle on the client computer.
  • Page 29 VIVOTEK (Original) Display mode: 1O View (Original View) When mounted on a ceiling, the fisheye camera can cover an approximately 50 m² of surveillance area (hung at a height of approximately 3 meters), while still keeping details in videos with recognizable facial features of people trafficking through the area.
  • Page 30 Both panoramic views are corrected into a more viewable dewarped image. Viewers can use a mouse click and swipe to quickly scroll horizontally through the surveillance area. * Note that the dividing line falls approximately on center of the VIVOTEK logo. 2P View (Panoramic View)
  • Page 31 VIVOTEK 1O3R (One Original & Three Regional) Display mode: The 1O3R mode provides access to multiple live view sections within the hemisphere and the reference to their relative positions on an Original circular view. The FOV indicators (#1 ~ #3) interact with your current operation as you may zoom in/out or move the live view window to a different place.
  • Page 32 VIVOTEK (Four Regional) Display mode: The view control and look and feel are identical to that as described in the 1O3R mode except the absence of the Original circular view. 4R PRO (Four Regional Proactive) Display mode: The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively rotate in correspondence to the change of view area in one window.
  • Page 33 VIVOTEK Video Stream: This Network Cmera supports multiple streams (stream #1 ~ #3) simultaneously. You can select any one of them for live viewing. For more information about multiple streams, please refer to page 63 for detailed information. Manual Trigger: Click to manually enable or disable an event trigger. Please configure an event setting before enabling this function.
  • Page 34 VIVOTEK NOTE: Unlike previous fisheye cameras, the PTZ preset positions function has been cancelled on this model. Therefore, the Rotate function is also unavailable. Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 39.
  • Page 35 VIVOTEK Live Video Window ■ The following window is displayed when the video mode is set to H.264 / MPEG-4: H.264/MPEG-4 Protocol and Media Options Time Video Title Video (TPC-AV) Video 13:59:05 2012/07/04 Title and Time Video 13:59:05 2012/07/04 Video and Audio Control Buttons Video Title: The video title can be configured.
  • Page 36 VIVOTEK Talk: Click this button to talk to people around the Network Camera. Audio will project from the external speaker connected to the Network Camera. Click this button again to end talking transmission. Mic Volume: When the Mute function is not activated, move the slider bar to adjust the microphone volume on the local computer.
  • Page 37 VIVOTEK Please refer to page 101 for PTZ settings. User's Manual - 37...
  • Page 38 VIVOTEK NOTE: 180° Hemisphere Field of View 1. Edges of a fisheye circular view will be slightly cropped because the fisheye lens FOV is actually larger than the sensor can take. 2. The camera lens’ angle of view is larger than 180°. Therefore, the camera’s circular view is actually larger than a 180°...

  • Page 39: Client Settings

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...

  • Page 40: Two Way Audio

    VIVOTEK Two way audio Select one of the checkboxes to configure the two way audio into the half- or full-duplex mode. MP4 Saving Options Users can record live video as they are watching it by clicking the “Start MP4 Recording” button on the main page.

  • Page 41: Configuration

    Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.

  • Page 42: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System and System Time. System Host name: Enter a desired name for the Network Camera. The name will be displayed at the top center of the main page.

  • Page 43: System > Homepage Layout

    Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage.
  • Page 44 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 45 VIVOTEK ■ Follow the steps below to set up a custom homepage: 1. Click Custom on the left column. 2. Click to select a color on on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.

  • Page 46: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to backup system log to a remote server. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log. 2. In the IP address text box, enter the IP address of the remote server.

  • Page 47: System > Parameters

    The View Parameters page lists the entire system’s parameters in an alphabetical order. If you need technical assistance, use a text-editor program to copy and save the parameters listed on this page. Send the parameter text file to VIVOTEK’s technical support. User's Manual - 47...

  • Page 48: System > Maintenance

    Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
  • Page 49 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 69). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 50 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 51 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.

  • Page 52: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following tabbed windows: General settings, Image settings, Exposure, and Privacy mask, and Pixel Calculator. General settings Video title: Enter a name that will be displayed on the title bar of the live video as well as the view cell on the ST7501 and VAST recording software.

  • Page 53: Day/Night Settings

    VIVOTEK & 3 Regional) Display modes are only available when the “Wall“ Mount type is applied. Floor: The Display modes with the Floor mount type are identical to those for the Ceiling mount except that the images are not vertically flipped.

  • Page 54: Image Settings

    VIVOTEK Image settings On this page, you can tune the White balance, Image adjustment and WDR enhanced parameters. You can configure two sets of preferred settings: one for normal situations, the other for special situations, such as day/night/schedule mode. Pixel Calculator...
  • Page 55 VIVOTEK ■ Sharpness: Adjust the image sharpness level, which ranges from 0% to 100%. ■ Gamma curve: Adjust the image sharpness level, which ranges from 0.45 to 1, from Detailed to Contrast. You may let firmware Optimize your display or select the Manual mode, and pull the slide bar pointer to change the preferred level of Gamma correction towards higher contrast or towards the higher luminance for detailed expression for both dark and lighted areas of an image.
  • Page 56 VIVOTEK If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile Settings page as shown below. 2011/03/13 17:08:56 Please follow the steps below to setup a profile: 1. Select the Enable and apply this profile checkbox.

  • Page 57: Exposure

    VIVOTEK Exposure On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.
  • Page 58 VIVOTEK The inclusive window refers to the “weighted window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
  • Page 59 VIVOTEK Day/Night Switch to B/W in night mode Select this checkbox to enable the Network Camera to automatically switch to Black & White display during the night mode. Turn on external IR illuminator in night mode If your camera is installed with an IR illuminator and the digital output signals are connected to it, you can let system firmware turn on the supplementary illuminator during low-light conditions.

  • Page 60: Privacy Mask

    VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out certain sensitive zones to address privacy concerns. ■ To set the privacy mask windows, follow the steps below: 1. Click New to add a new window. A text box will appear allowing you to enter a name for the mask.

  • Page 61: Pixel Calculator

    VIVOTEK Pixel Calculator Click the Add button at the lower screen to create a pixel calculator window. Place your cursor on the window to move it to an area of your interest, and change the size of window to fit the area of interest.

  • Page 62: Media > Video

    VIVOTEK Media > Video The Field of View window allows you to select either the Fisheye mode or a 1080P Full HD mode. The 1080P Full HD mode provides a dewarpped section (1920x1080 pixels) out of the 180 degrees hemispheric view. The 1080P Full HD mode provides a higher frame rate of up to 30fps. It is as if using the fisheye camera as a standard fixed dome camera with a wide view angle.

  • Page 63: Media > Video

    VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame size ranging from 192 x 192 to 1920 x 1920. Please follow the steps below to set up those settings for an individual stream: 1. Select a stream to configure its viewing region.
  • Page 64 VIVOTEK Click the stream item to display the detailed information. This Network Camera offers real-time H.264, MPEG-4 and MJPEG compression standards (Triple Codec) for real-time viewing. H.264 MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are several...
  • Page 65 Note that some software vendors, such as Milestone , has already implemented the support ® for VIVOTEK's plug-ins. You only need to download and install plug-ins for use with Milestone's software. ■ Frame size You can set up different video resolutions for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers.
  • Page 66 VIVOTEK ■ Intra frame period Determine how often to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
  • Page 67 VIVOTEK JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.

  • Page 68: Media > Audio

    VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.

  • Page 69: Network > General Settings

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 19 for details.
  • Page 70 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer name and IP address.
  • Page 71 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
  • Page 72 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 73 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support IPv6. The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
  • Page 74 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 75 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
  • Page 76 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21, or assigned to another port number between 1025 and 65535.

  • Page 77: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 88 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
  • Page 78 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 ~ 5> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
  • Page 79 NOTE: An original, circular view will be displayed using all RTSP players. For access to the Regional Views, you can install VIVOTEK's ST7501 or VAST software. You can right-click on a live view window to see the Display mode options.
  • Page 80 VIVOTEK RTSP port /RTP port for video, audio/ RTCP port for video, audio ■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554. ■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
  • Page 81 VIVOTEK Multicast settings for stream 1 ~ 3: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for streams 1 ~ 3. Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.

  • Page 82: Network > Qos (Quality Of Service)

    VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 83 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.

  • Page 84: Network > Ddns

    IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will check out if the host name is valid and automatically open a port on your router.

  • Page 85: Manual Setup

    DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
  • Page 86 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

  • Page 87: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

  • Page 88: Security > User Account

    VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.

  • Page 89: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 90 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re- turn to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 91 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
  • Page 92 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 93 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
  • Page 94 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 94 - User's Manual...
  • Page 95 VIVOTEK Note that a 11. When the certifice file is successfully loaded, its status will be stated as Active. certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.

  • Page 96: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream #1, #2, and #3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
  • Page 97 VIVOTEK ■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explorer or Quick Time Player).
  • Page 98 VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List. The routing prefix is written in CIDR notation. For example: accesses from IP address 192.168.2.x will be bolcked. If IPv6 filter is preferred, you will be prompted by the following window. Enter the IPv6 address and the two-digit prefix length to specify the range of IP addresses in your configuration.

  • Page 99: Security > Ieee 802.1X

    Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
  • Page 100 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).

  • Page 101: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings Local This window is functional only when you configure a video stream to be using the dewarp function. Changing the Field of View In this window, functional items related to the preset positions have been cancelled. This window is now used for changing the field of view when the Local dewarp is applied to a video stream.
  • Page 102 VIVOTEK 2. Adjust the shooting area to the desired position using the PTZ keypad on the live screen. Note that the pan, tilt, zoom speeds only applies in this window. They do not apply to the live view window. 102 - User's Manual...

  • Page 103: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 104 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 105 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
  • Page 106 VIVOTEK 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.

  • Page 107: Add Server

    VIVOTEK Add server Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured. There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options.
  • Page 108 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings, then click Close to exit the Add server page.
  • Page 109 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below.
  • Page 110 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 127 for details. Click Save server to enable the settings, then click Close to exit the Add server page.

  • Page 111: Add Media 111

    VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 112 VIVOTEK ■ Add date and time suffix to the file name. Select this option to add a date/time suffix to the file name. For example: Snapshot_20130720_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings, then click Close to exit the Add media page.
  • Page 113 VIVOTEK ■ Maximum duration Specify the maximum recording duration in seconds. Up to 10 seconds of video can be recorded. For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
  • Page 114 VIVOTEK ■ View: Click this button to open a file list window. This function is only for SD card and Network Storage. If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card.
  • Page 115 VIVOTEK Here is an example of the Event setting: When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page. The following is an example of the Event setting page:...
  • Page 116 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK’s technical support. Click to upload a file...

  • Page 117: Applications > Motion Detection

    VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of five motion detection windows can be configured. Motion Detection Setting 1: For normal situations Motion Detection Setting 2: For special situations Follow the steps below to enable motion detection: 1.
  • Page 118 VIVOTEK on page 103. A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure specific motion detection settings individually for day/night/schedule operations, please click Profile to open the Motion Detection Profile Settings page as shown below.
  • Page 119 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.

  • Page 120: Applications > Di And Do

    VIVOTEK Applications > DI and DO Digital input: Select High or Low as the Normal status for the digital input. Connect the digital input pin of the Network Camera to an external device to detect the current connection status. Digital output: Select Grounded or Open to define the normal status for the digital output. Connect the digital output pin of the Network Camera to an external device to determine the current status.

  • Page 121: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 122 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.

  • Page 123: Applications > Vadp (Vivotek Application Development Platform)

    VADP requirements. Please contact technical support or the vendor of your 3rd-party module for the parameters contained within. • Users can also run VIVOTEK's VADP packages as a means to access updated functionality instead of replacing the entire firmware. •...
  • Page 124 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.

  • Page 125: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: Please remember to format your SD card when used for the first time. Please refer to page 130 for de- tailed information.
  • Page 126 VIVOTEK If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the server record the streaming data in full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage.
  • Page 127 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1. Fill in the information for the access to the shared networked storage.
  • Page 128 VIVOTEK If successful, you will receive a test.txt file on the networked storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can either choose the entire available space or impose a reserved space. The Reserved space should be of the size of at least 15MBytes.
  • Page 129 VIVOTEK range from 100 to 2000 Megabytes. ■ File name prefix: Enter a name for each recorded video. If you want to enable recording notification, please click Event to set up. Please refer to Event > Event settings on page 103 for more details.

  • Page 130: Local Storage > Sd Card Management

    VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card staus This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

  • Page 131: Local Storage > Content Management

    VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results cloumn.

  • Page 132: Search Results

    VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Enter a key word to filter the Numbers of entries displayed...
  • Page 133 VIVOTEK ■ JPEGs to AVI: This function only applies to “JPEG“ format files such as snapshots. You can select several snapshots from the list, then click this button. Those snapshots will be converted into an AVI file. ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recoroding.

  • Page 134: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.

  • Page 135: General Cgi Url Syntax And Parameters

    VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
  • Page 136 VIVOTEK [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.

  • Page 137: Set Server Parameter Values

    (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n...

  • Page 138: Available Parameters On The Server

    VIVOTEK <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n 7. Available parameters on the server...
  • Page 139 VIVOTEK everything inside <> A description integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server. text SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
  • Page 140 VIVOTEK <domain <blank> NTP server. name>, *Do not use “skip to invoke <ip default server” for default address>, value. <blank> timezoneindex -489 ~ 529 Indicate timezone and area. -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii...
  • Page 141 VIVOTEK Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris 41: GMT 01:00 Warsaw, Budapest, Bern 80: GMT 02:00 Athens, Helsinki, Istanbul, Riga 81: GMT 02:00 Cairo 82: GMT 02:00 Lebanon, Minsk 83: GMT 02:00 Israel 120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St.
  • Page 142 VIVOTEK Darwin 400: GMT 10:00 Brisbane, Canberra, Melbourne, Sydney, Guam, Vladivostok 440: GMT 11:00 Magadan, Solomon Is., New Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automatic daylight saving time in time zone.
  • Page 143 VIVOTEK integer> is non-negative. restoreexceptnet <Any Restore the system value> parameters to default values except (ipaddress, subnet, router, dns1, dns2, pppoe). This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
  • Page 144 VIVOTEK restoreexceptvadp <integer> 99/6 Restore the system parameters to default values except the vadp parameters and VADP modules that stored in the system. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be...
  • Page 145 VIVOTEK > customlanguage_maxcoun <integer> Maximum number of custom languages supported on the server. customlanguage_count <integer> Number of custom languages which have been uploaded to the server. customlanguage_i<0~(ma string <blank> Custom language name. xcount-1)> 7.2 status Group: status NAME VALUE DEFAULT...
  • Page 146 VIVOTEK 7.3 digital input behavior define Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or closed circuit (inactive status) 7.4 digital output behavior define Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE...
  • Page 147 VIVOTEK operator, admin 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preproces <positive <blank> An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service;...
  • Page 148 VIVOTEK subnet <ip <blank> Subnet mask. address> router <ip <blank> Default gateway. address> dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server.
  • Page 149 VIVOTEK 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS <product (capability.naudio > 0) dependent>...
  • Page 150 VIVOTEK 7.6.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport...
  • Page 151 VIVOTEK 7.6.6 HTTPS port Subgroup of network: https_port (capability.protocol.https > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 443, 1025 ~ HTTPS port. 65535 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port.
  • Page 152 VIVOTEK 7.6.7.1 RTSP multicast Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) alwaysmulticast <boolean> Enable always multicast. ipaddress <ip address> For n=0, Multicast IP address. 239.128.1.99 For n=1, 239.128.1.100, and so on.
  • Page 153 VIVOTEK 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank> PPPoE account user name. pass password[64] <blank> PPPoE account password. 7.7 IP Filter Group: ipfilter NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...

  • Page 154: Video Input

    VIVOTEK 7.8 Video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, manual auto “auto” indicates auto white balance. “manual” indicates keep current value. exposurelevel 0~12 Exposure level enableblc <boolean> Enable backlight compensation.
  • Page 155 VIVOTEK textonvideo_size 15,25,30 Timestamp and video title font-size maxexposure 1, 15, 30, Maximum exposure time. 60, 120, 240, <product dependent> options framerate framerate Video input option: (1) video frame rate first mode enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile.
  • Page 156 VIVOTEK mirror <boolean> Mirror the image. ptzstatus <integer> A 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation;...
  • Page 157 VIVOTEK oin_resolution s<0~(m-1)>_mpeg4_intrap 250, 500, 1000 Intra frame period in eriod 1000, 2000, milliseconds. 3000, 4000 s<0~(m-1)>_mpeg4_bitrate average, average “average” indicates the restriction upperbound average bit rate will be equal to its target bit rate. “upperbound” indicates the bit rate will always not exceed its target bit rate.
  • Page 158 VIVOTEK s<0~(m-1)>_mpeg4_maxfr 1~15 Set maximum frame rate in fps (for MPEG-4). s<0~(m-1)>_h264_intraperi 250, 500, 1000 Intra frame period in 1000, 2000, milliseconds. 3000, 4000 s<0~(m-1)>_h264_bitratere average, average “average” indicates the striction upperbound average bit rate will be equal to its target bit rate.
  • Page 159 VIVOTEK s<0~(m-1)>_h264_maxfra 1~15 Set maximum frame rate in fps (for h264). s<0~(m-1)>_h264_profile Indicate H264 profiles <product dependent> 0: baseline 1: main profile 2: high profile s<0~(m-1)>_mjpeg_bitrater average, average “average” indicates the estriction upperbound average bit rate will be equal to its target bit rate.
  • Page 160 VIVOTEK “ratecontrolmode”. s<0~(m-1)>_forcei Force I frame. s<0~(m-1)>_fisheyede 1O, 1P, 2P, Local dewarp mode. warpmode 1R, 4R for “1O” is original mode ceiling/floor (disable). mount 1O, 1P, 1R, 4R for wall mount wdrc_mode WDR enhanced. 0: off 1: Sensitivity low 2: Sensitivity high wdrc_strength WDR enhanced.
  • Page 161 VIVOTEK maxexposure 1~32000 Maximum exposure time. enableblc <boolean> Enable backlight compensation. exposurelevel 0~12 Exposure level agcmode auto,fixed auto Set auto gain control mode. maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. whitebalance auto, manual auto “auto”...
  • Page 162 VIVOTEK 0: low 1: medium 2: high agcmode auto,fixed auto Set auto gain control mode. maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile > 0) NAME VALUE...
  • Page 163 VIVOTEK saturationpercent 0~100 Adjust saturation value of percentage when saturation=100 contrast -5 ~ 5 Adjust contrast of image according to mode settings. sharpness -3~3,100 Adjust sharpness of image according to mode settings. sharpnesspercent 0~100 Adjust sharpness value of percentage when sharpness=100...
  • Page 164 VIVOTEK 2: Sensitivity high 7.12 Image setting for preview Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings. saturation -5~5,100 Adjust saturation of image according to mode settings.
  • Page 165 VIVOTEK 7.13 Exposure window setting per channel <product dependent> Group: exposurewin_c<0~(n-1)> for n channel products capability_ videoin_supportexpwin = NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, custom, blc auto The mode indicates how to <product dependent> decide the exposure. auto: Use full view as the only one exposure window.
  • Page 166 VIVOTEK <product dependent> window. 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source micin, micin micin => use built-in microphone linein input. linein => use external microphone input. mute 0, 1 Enable audio mute.

  • Page 167: Motion Detection Settings

    VIVOTEK s<0~(m-1)>_g726 0, 1 Enable vlcmode for G.726 _vlcmode <product dependent> 7.15 Time Shift settings Group: timeshift, c for n channel products, m is stream number (capability.timeshift > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable time shift streaming.
  • Page 168 VIVOTEK night, profile is applied to. schedule i<0~(m-1)>_begintime hh:mm 18:00 Begin time of schedule mode. i<0~(m-1)>_endtime hh:mm 06:00 End time of schedule mode. i<0~(m-1)>_win_i<0~4>_enable <boolean> Enable motion window. i<0~(m-1)>_win_i<0~4>_name string[14] <blank> Name of motion window. i<0~(m-1)>_win_i<0~4>_ polygon 0 ~ 320,0 ~...
  • Page 169 VIVOTEK DyndnsCustom, (dynamic) CustomSafe100, DyndnsCustom => dyndns.org <product (custom) dependent> CustomSafe100 => Custom server using safe100 method <product dependent> <provider>_ho string[128] <blank> Your DDNS hostname. stname <provider>_us string[64] <blank> Your user name or email to login to ernameemail the DDNS service provider <provider>_pa...

  • Page 170: System Log

    VIVOTEK 7.21 UPnP port forwarding Group: upnpportforwarding NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.22 System log...

  • Page 171: Camera Ptz Control

    VIVOTEK internal. 7.23 camera PTZ control Group: camctrl (capability.camctrl.httptunnel > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enablehttptunnel <boolean> Enable HTTP tunnel for camera control. Group: camctrl_c<0~(n-1)> for n channel product (capability.ptzenabled) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) panspeed -5 ~ 5...
  • Page 172 VIVOTEK 7.24 UART control Group: uart (capability.nuart > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) ptzdrivers_i<0~19, string[40] <product Name of the PTZ driver. 127>_name dependent> ptzdrivers_i<0~19, string[128] < product Full path of the PTZ driver. 127>_location dependent > enablehttptunnel <boolean>...
  • Page 173 VIVOTEK 127 (custom), (no driver) COM port. 128 (no driver) 7.25 SNMP Group: snmp (capability.snmp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) SNMP v2 enabled. 0 for disable, 1 for enable SNMP v3 enabled. 0 for disable, 1 for enable...

  • Page 174: Privacy Mask

    Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage <product dependent> 0 -> Hidden 1 ->...
  • Page 175 VIVOTEK win_i<0~4>_enable <boolean> Enable privacy mask window. win_i<0~4>_name string[14] <blank> Name of the privacy mask window. win_i<0~4>_ 0 ~ 320,0 ~ 240, Coordinate of polygon polygon 0 ~ 320,0 ~ 240, window position. 0 ~ 320,0 ~ 240, (4 points:...
  • Page 176 VIVOTEK nuart Number of UART interfaces. <positive integer> nvideoinprofile <positive integer> Number of video input profiles. nmotion 0, <positive Number of motion window. integer> nmotionprofile 0, <positive Number of motion profiles. integer> ptzenabled 0, <positive An 32-bit integer, each bit integer>...
  • Page 177 VIVOTEK Lens_tilt, lens_zoon, lens_focus, len_iris. 0(fields are valid), 1(fields are invalid) evctrlchannel <boolean> Indicate whether to support HTTP tunnel for event/control transfer. joystick <boolean> Indicate whether to support joystick control. storage_dbenabled <boolean> Media files are indexed in database. ptzenabledclient <boolean>...
  • Page 178 VIVOTEK videoin_type 0, 1, 2 0 => Interlaced CCD 1 => Progressive CCD 2 => CMOS videoin_resolution <a list of available '192x192, Available resolutions list. resolution separated 256x256, by commas> 384x384, <product 512x512, dependent> 768x768, 1056x1056, 1280x1280, 1536x1536 1920x1920 videoin_resolution16x9 <a list of available...
  • Page 179 VIVOTEK <product dependent> videoin_mjpeg_maxframerate <a list of 15,15,15,15, Available maximum frame available 15,15,15,15, list. (only for 5M series) maximum frame rate separated by commas> <product dependent> videoin_h264_maxframerate <a list of 15,15,15,15, Available maximum frame available 15,15,15,15, list. (only for 5M series)
  • Page 180 VIVOTEK dependent> <boolean> <product Indicate whether to videoin_flexiblebitrate support flexible <product dependent dependent > bitrate. > videoout_codec <a list of the <blank> Available codec list. available codec types separated by commas) <product dependent> audio_aec <boolean> Indicate whether to support acoustic echo cancellation.
  • Page 181 VIVOTEK page. 1: support both /cgi-bin/camctrl/camctrl.cg i and /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi uart_httptunnel <boolean> Indicate whether to support HTTP tunnel for UART transfer. transmission_mode Indicate transmission mode of the machine: TX = Both server, Rx = receiver box, Both = DVR.
  • Page 182 VIVOTEK npreset 0, <positive Number of preset locations integer> eptz 0, <positive A 32-bit integer, each bit integer> can be set separately as follows: Bit 0 => stream 1 supports ePTZ or not. Bit 1 => stream 2 supports ePTZ or not.
  • Page 183 VIVOTEK supportsd <boolean> Indicate whether to support local storage. vadp <positive An 32-bit integer, each bit integer> can be set separately as follows: Bit 0 => VADP Interface Bit 1 => Capture video raw data Bit 2 => Support encode jpeg Bit 3 =>...

  • Page 184: Event Setting

    VIVOTEK <product dependent> resolutionC4R 384x384, 512x512, Available resolutions of 4R 768x768, 1088x1088, mode of ceiling and floor 1280x1280 mount. <product dependent> resolutionW1P 640x320, 1280x640, Available resolutions of 1P 1536x768, 1920x960 mode of wall mount. <product dependent> Available resolutions of 1R...
  • Page 185 VIVOTEK priority 0, 1, 2 Indicate the priority of this event: “0” = low priority “1” = normal priority “2” = high priority delay 1~999 Delay in seconds before detecting the next event. trigger boot, boot Indicate the trigger condition: “boot”...
  • Page 186 VIVOTEK inter 1~999 Interval of snapshots in minutes. This field is used when trigger condition is “seq”. weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday...
  • Page 187 VIVOTEK action_cf_backup <Boolean> Enable or disable the function that send media to SD card for backup if network is disconnected. action_server_i<0~4>_e 0, 1 Enable or disable this server action. nable action_server_i<0~4>_ NULL, 0~4 <blank> Index of the attached media. media action_server_i<0~4>_...
  • Page 188 VIVOTEK http_username string[64] NULL Username to log in to the server. http_passwd string[64] NULL Password of the user. ftp_address string[128] NULL FTP server address. ftp_username string[64] NULL Username to log in to the server. ftp_passwd string[64] NULL Password of the user.
  • Page 189 VIVOTEK snapshot_source <integer> Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc. snapshot_prefix string[16] Snapshot1_ Indicate the prefix of the filename.
  • Page 190 VIVOTEK 7.33 Recording Group: recording_i<0~1> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. trigger schedule, schedule The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
  • Page 191 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
  • Page 192 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. filesize 100~900 Unit: Mega bytes. When this condition is reached, recording file is truncated.

  • Page 193: Eptz Setting

    VIVOTEK -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate 0 = Not installed 1 = Active countryname string[2] Country name in the certificate information. stateorprovincename string[128] Asia State or province name in the certificate information.
  • Page 194 VIVOTEK zoomspeed -5 ~ 5 Zoom speed panoramicspeed 1 ~ 5 Panoramic speed rotatespeed 1 ~ 5 Rotate speed Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the number of streams which support ePTZ. (capability.eptz > 0) PARAMETER VALUE...
  • Page 195 Only for genetec omnicast dependent> image_brightness <integer> <product Only for genetec omnicast dependent> motion_i<0~4> <integer> <product Only for genetec omnicast dependent> 7.40 VIVOTEK Application Development Platform setting Group: vadp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) version <string> <product Indicate the VADP version.
  • Page 196 VIVOTEK modules. resource_total_storage <integer> <product Indicate total size of the dependent> internal storage space for storing VADP modules. resource_free_video <integer> <product Indicate free video resource dependent> number of the system. resource_free_audio <integer> <product Indicate free audio resource dependent> number of the system.
  • Page 197 VIVOTEK vender string[40] <blank> The provider of the module. vendorurl string[120] <blank> URL of the vendor. version string[40] <blank> Version of the module. license string[40] <blank> Indicate the license status of the module. path string[40] <blank> Record the storage path of the module.
  • Page 198 VIVOTEK <integer > 198 - User's Manual...

  • Page 199: Drive The Digital Output

    VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
  • Page 200 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...

  • Page 201: Capture Single Snapshot

    VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege <SD81X1> You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<value>&...

  • Page 202: Account Management

    VIVOTEK resolution> quality The quality of the image. streamid 0~(m-1) <product The stream number. dependent> The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

  • Page 203: System Logs

    VIVOTEK operator Operator privilege. admin Administrator privilege. Return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
  • Page 204 VIVOTEK 8.9 Camera Control (capability.ptzenabled, not used in FE8174) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&iris=<value>] – Iris operation [&auto=<value>] – Auto pan, patrol [&zoom=<value>]...
  • Page 205 VIVOTEK speedapp -5 ~ 5 Set the auto pan/patrol speed. auto Auto pan. patrol Auto patrol. stop Stop camera. zoom wide Zoom larger view with current speed. tele Zoom further with current speed. stop Stop zoom. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
  • Page 206 VIVOTEK return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
  • Page 207 VIVOTEK auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol. zoom wide Zoom larger view with current speed. tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
  • Page 208 VIVOTEK 8.11 Recall (capability.ptzenabled, not used in FE8174) Note: This request requires Viewer privileges. Method: GET Syntax: http://<servername>/cgi-bin/viewer/recall.cgi? recall=<value>[&channel=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION recall Text string less than 30 One of the present positions to recall. characters channel <0~(n-1)> Channel of the video source.
  • Page 209 VIVOTEK 8.13 Preset Locations (capability.ptzenabled, not used in FE8174) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos <Text string less than Add one preset location to the preset list. 30 characters> channel <0~(n-1)>...
  • Page 210 VIVOTEK addpos <Text string less than Add one preset location to the preset list. 40 characters> delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned.
  • Page 211 VIVOTEK zoom wide Zoom larger view with current speed. tele Zoom further with current speed. speedpan -5 ~ 5 Set the pan speed of current command. speedtilt -5 ~ 5 Set the tilt speed of current command. speedzoom -5 ~ 5 Set the zoom speed of current command.
  • Page 212 VIVOTEK delv6 Delete IPv6 address from access list. <IP address> Single address: <IP address> Network address: <IP address / network mask> Range address:<start IP address - end IP address> index <value> The start position to add or to delete. return <return page>...
  • Page 213 VIVOTEK PARAMETER VALUE DESCRIPTION channel 0 ~ (n-1) The channel number of UART. 8.18 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled...
  • Page 214 VIVOTEK 8.19 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
  • Page 215 VIVOTEK 8.21 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F.
  • Page 216 VIVOTEK 8.22 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
  • Page 217 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
  • Page 218 VIVOTEK label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5 Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
  • Page 219 VIVOTEK state after duration. it cannot accept new requests. return <return page> Redirect to the page <return page> after the request is completely assigned. The <return page> can be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.
  • Page 220 VIVOTEK “m” is the timeshift stream index. For details on timeshift stream, please refer to the “TimeshiftCaching” documents. PARAMETER VALUE DEFAULT DESCRIPTION maxsft <positive Request cached stream at most how many seconds ago. interger> tsmode normal, normal Streaming mode: adaptive normal =>...
  • Page 221 VIVOTEK 8. 25 Open Anystream (capability.nanystream > 0) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/videoany.mjpg?codectype=mjpeg[&resolution=<value>&mjpeg_quant=<value>& mjpeg_qvalue=<value>&mjpeg_maxframe=<value>] For RTSP (MPEG4), the user needs to input the URL below into an RTSP compatible player. rtsp://<servername>/liveany.sdp?codectype=mpeg4[&resolution=<value>&mpeg4_intraperiod=<value>...
  • Page 222 VIVOTEK mpeg4_ratecontrolmode cbr, vbr cbr: constant bitrate vbr: fix quality mpeg4_quant 0, 1~5 Quality of video when choosing vbr in 99, 1~5 “mpeg4_ratecontrolmode”. <product dependent> 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality.
  • Page 223 VIVOTEK dependent> 8.26 Export Files Note: This request requires Administrator privileges. Method: GET Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/exportDst.cgi For language file: http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value> PARAMETER VALUE DESCRIPTION currentlanguage 0~20 Available language lists. Please refer to: system_info_language_i0 ~ system_info_language_i19 For setting backup file: http://<servername>/cgi-bin/admin/export_backup.cgi?backup...
  • Page 224 VIVOTEK filename =<file name>\r\n \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera. 8.28 Media on demand Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
  • Page 225 VIVOTEK &length=120 Play recordings for length seconds which ends at etime rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000 &length=120 Play file file rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/ <End of document> User's Manual - 225...

  • Page 226: Technical Specifications

    NPT adapter (for AM-518) Pendant pipe Outdoor wireless access point All speci cations are subject to change without notice. Copyright © 2014 VIVOTEK INC. All rights reserved. Distributed by: VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

  • Page 227: Technology License Notice

    VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

  • Page 228: Electromagnetic Compatibility (Emc)

    取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.

This manual is also suitable for:

Fe8174

Table of Contents
